SEE NOTES: 1,2,4,7,8,9 on the page

following these figures

A03214

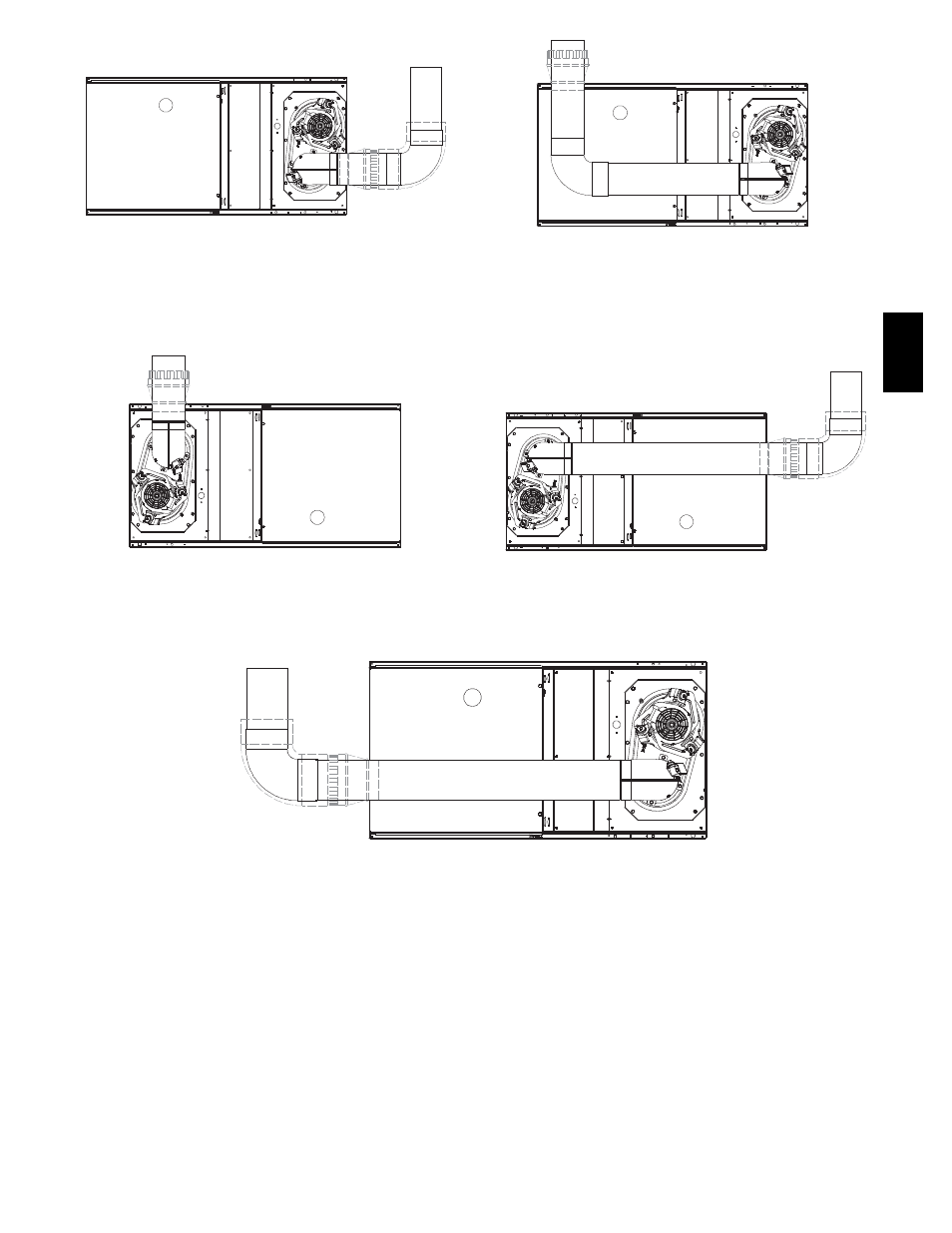

Fig. 42 -- Horizontal Right Application--Vent Elbow Right

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03215

Fig. 43 -- Horizontal Left Application--Vent Elbow Up

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03219

Fig. 44 -- Horizontal Right Application--Vent Elbow Left

then Up

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03216

Fig. 45 -- Horizontal Left Application--Vent Elbow Right

SEE NOTES: 1,2,4,5,7,8,9

A02068

Fig. 46 -- Horizontal Right Application--Vent Elbow Left

313A
