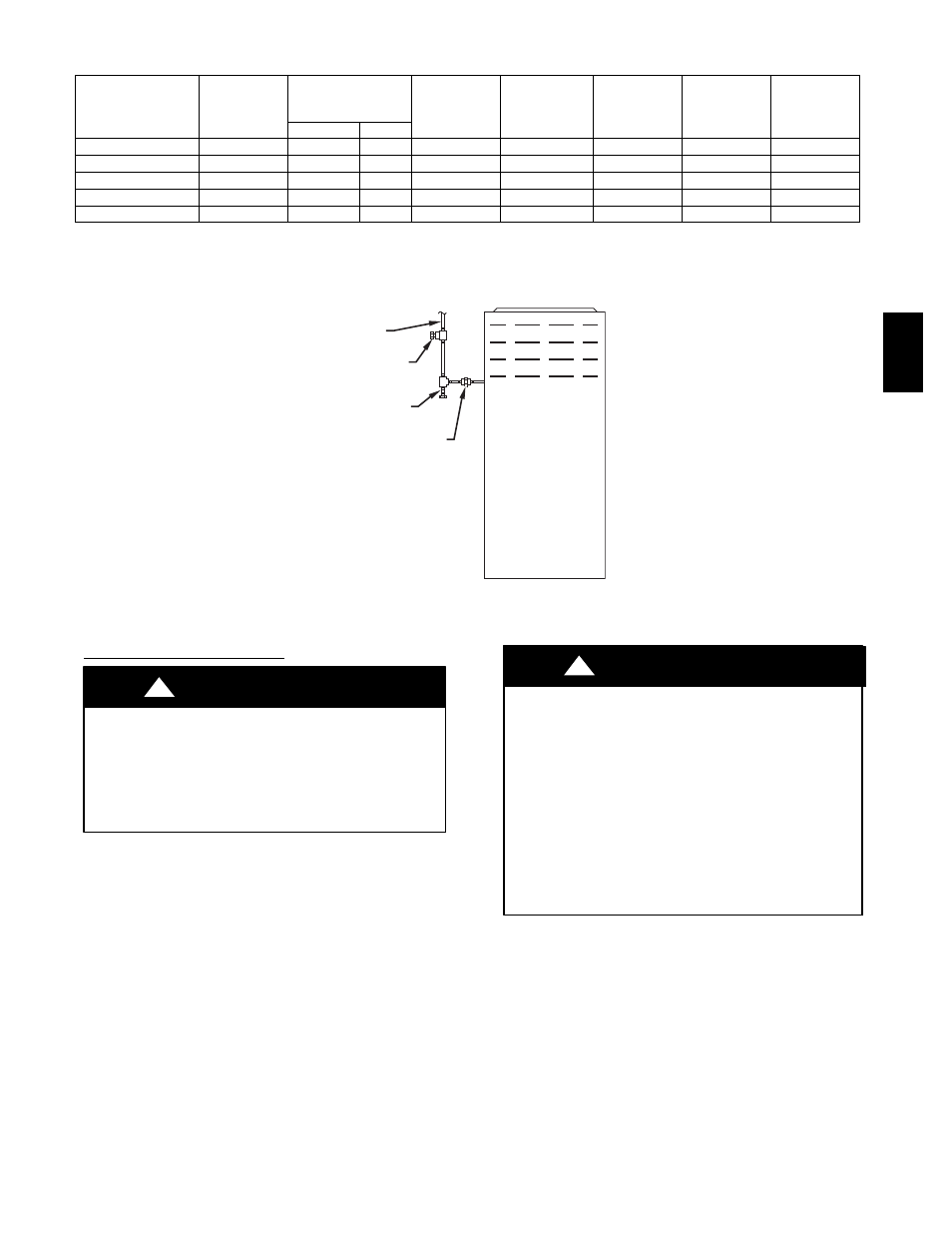

background image

21

Table 7 – Electrical Data

FURNACE

MODEL

VOLTS---

HERTZ---

PHASE

OPERATING

VOLTAGE*

(VOLTS)

MAX UNIT

(AMPS)

UNIT

AMPACITY#

(AMPS)

MAX WIRE

LENGTH

}

FT. (M)

MAX FUSE/

CKT BKR

{

(AMPS)

MIN WIRE

GAGE

MAX

MIN

045---08 / 024045

115---60---1

127

104

8.1

10.9

34 (10)

15

14

070---16 / 048070

115---60---1

127

104

9.5

12.6

29 (9)

15

14

090---16 / 048090

115---60---1

127

104

10.3

13.4

27 (8)

15

14

110---20 / 060110

115---60---1

127

104

13.1

16.9

34 (10)

20

12

135---20 / 060135

115---60---1

127

104

13.1

16.9

34 (10)

20

12

* Permissible limits of the voltage range at which the unit operates satisfactorily.
# Unit ampacity = 125 percent of largest operating component’s full load amps plus 100 percent of all other potential operating components’ (EAC, humidifier,

etc.) full load amps.

{

Time---delay type is recommended.

}

Length shown is as measured 1 way along wire path between unit and service panel for maximum 2 percent voltage drop.

UNION

SEDIMENT
TRAP

MANUAL
SHUTOFF
VALVE
(REQUIRED)

GAS
SUPPLY

A02035

Fig. 22 -- Typical Gas Pipe Arrangement

ELECTRICAL CONNECTIONS

ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal

injury or death.
Blower access panel door switch opens 115--v power to

control. No component operation can occur. Do not bypass

or close switch with panel removed.

!

WARNING

See Fig. 25 for field wiring diagram showing typical field 115--v
wiring. Check all factory and field electrical connections for

tightness.
Field--supplied wiring shall conform with the limitations of 63_F
(35_C) rise.

ELECTRICAL SHOCK AND FIRE HAZARD
Failure to follow this warning could result in personal

injury, death, or property damage.
The cabinet MUST have an uninterrupted or unbroken

ground according to NEC ANSI/NFPA 70--2008 and

Canadian Electrical Code CSA C22.1 or local codes to

minimize personal injury if an electrical fault should occur.

This may consist of electrical wire, conduit approved for

electrical ground or a listed, grounded power cord (where

permitted by local code) when installed in accordance with

existing electrical codes. Refer to the power cord

manufacturer’s ratings for proper wire gauge. Do not use

gas piping as an electrical ground.

!

WARNING

313A
