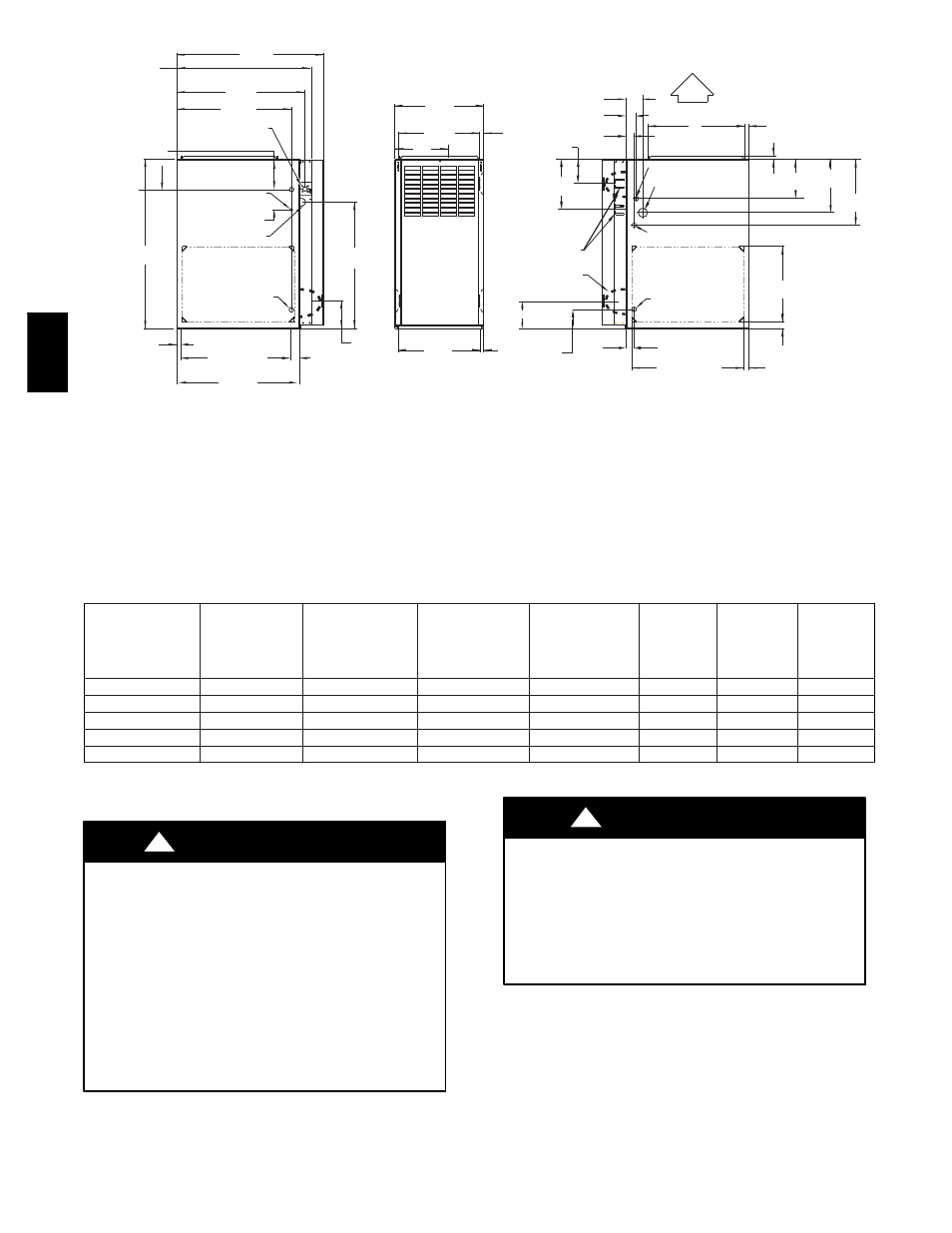

Warning, Caution, Safety considerations – Bryant 313AAV User Manual

Page 2: Ad f e, 313a

background image

2

2-7/16"

1-1/8"

28-7/8"

(733mm)

25-1/4"

22-9/16"

JUNCTION BOX
LOCATION

7/8" DI A

ACCESSORY

1/2" (13 mm) DIA.

THERMOSTAT WIRE ENTRY

3-15/16" (84mm)

LEFT HAND GAS

ENTRY

33-5/16"

24-7/8"

5-1/2"

7/8" (22mm) DIA.
ACCESSORY

11/16"

21-5/8"

BOTTOM INLE T

1-11/16"

13/16"

11/16"

4-13/16"

AIRFLOW

19"

OUTLE T

13/16"

11/16"

8-9/16"

VENT OUTLE T

5 PLACES (TYP)

3-3/4"

1-3/4" DIA.RIGHT HAND
GAS ENTRY

7/8" DIA. K.O. WIRE ENTRY

SIDE INLE T

14-7/8"

7/8" DIA. ACCESSORY

1-1/4"

1"

22-1/16"

A

D

F

E

(FLUE COLLAR)

5-15/16"
(135mm)

24"

CASING

1-5/16"

1/2" DIA. K.O.THERMOSTAT
WIRE ENTRY

ALTERNAT E

JUNCTION BOX

LOCATIONS (TYP)

26-1/8"

1-1/2"

7-3/4"

9-5/8"

11-1/2"

5-1/2"

(664mm)

(641mm)

(573mm)

(22mm)

(846mm)

(17mm)

(549mm)

(610mm)

(43mm)

(140mm)

(632mm)

(17mm)

(140mm)

(95mm)

(21mm)

(122mm)

(217mm)

(62mm)

(33mm)

(29mm)

(483mm)

(13mm)

(44mm)

(22mm)

(22mm)

(38mm)

(560mm)

(25mm)

(32mm)

(378mm)

(17mm) (197mm)

(244mm)

(292mm)

(21mm)

A04037

NOTES:

1. Two additional 7/8---in. (22 mm) diameter holes are located in the top plate.

2. Minimum return---air openings at furnace, based on metal duct. If flex duct is used, see flex duct manufacturer’s recommendations for equivalent diameters.

a. For 800 CFM---16---in. (406 mm) round or 14 1/2 x 12---in. (368 x 305 mm) rectangle.

b. For 1200 CFM---20---in. (508 mm) round or 14 1/2 x 19 1/2---in. (368 x 495 mm) rectangle.

c. For 1600 CFM---22---in. (559 mm) round or 14 1/2 x 22 1/16---in. (368 x 560mm) rectangle.

d. For airflow requirements above 1800 CFM, see Air Delivery table in Product Data literature for specific use of single side inlets. The use of both side inlets, a

combination of 1 side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM.

Fig. 1 -- Dimensional Drawing

Table 1 – Dimensions

FURNACE SIZE

A

CABINET

WIDTH

IN. (MM)

D

SUPPLY---AIR

WIDTH

IN. (MM)

E

RETURN---AIR

WIDTH

IN. (MM)

F

C.L. TOP AND

BOTTOM FLUE

COLLAR

IN. (MM)

FLUE

COLLAR*

IN. (MM)

SHIP WT

(LB / KG)

FILTER

MEDIA

CABINET

SIZE

IN. (MM)

045---08/024045

14---3/16 (360)

12---9/16 (319)

12---11/16 (322)

9---5/16 (237)

4 (102)

114 (52)

16 (406)

070---16/048070

17---1/2 (445)

15---7/8 (403)

16 (406)

11---9/16 (294)

4 (102)

136 (62)

16 (406)

090---16/048090

21 (533)

19---3/8 (492)

19---1/2 (495)

13---5/16 (338)

4 (102)

150 (68)

20 (508)

110---20/060110

21 (533)

19---3/8 (492)

19---1/2 (495)

13---5/16 (338)

4 (102)

162 (73)

20 (508)

135---20/060135

24---1/2 (622)

22---7/8 (581)

23 (584)

15---1/16 (383)

4 (102)

173 (78)

24 (610)

* 5 in. or 6 in. (127 or 152 mm) vent connector may be required in some cases.

SAFETY CONSIDERATIONS

FIRE, EXPLOSION, ELECTRICAL SHOCK, AND

CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in dangerous

operation, serious injury, death, or property damage.
Improper installation, adjustment, alteration, service,

maintenance, or use could cause carbon monoxide

poisoning, explosion, fire, electrical shock, or other

conditions which may cause personal injury or property

damage. Consult a qualified service agency, local gas

supplier, or your distributor or branch for information or

assistance. The qualified service agency must use only

factory--authorized and listed kits or accessories when

modifying this product.

!

WARNING

FURNACE RELIABILITY HAZARD
Improper installation or misapplication of furnace may

require excessive servicing or cause premature component

failure.
Application of this furnace should be indoors with special

attention given to vent sizing and material, gas input rate,

air temperature rise, unit leveling, and unit sizing.

CAUTION

!

Improper

installation,

adjustment,

alteration,

service,

maintenance, or use can cause explosion, fire, electrical shock, or
other conditions which may cause death, personal injury, or

property damage. Consult a qualified installer, service agency, or
your distributor or branch for information or assistance. The

qualified installer or agency must use factory--authorized kits or
accessories when modifying this product. Refer to the individual

instructions packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these

313A
