26

See notes 2,5,7, and 10 on the page following these figures.

A04215

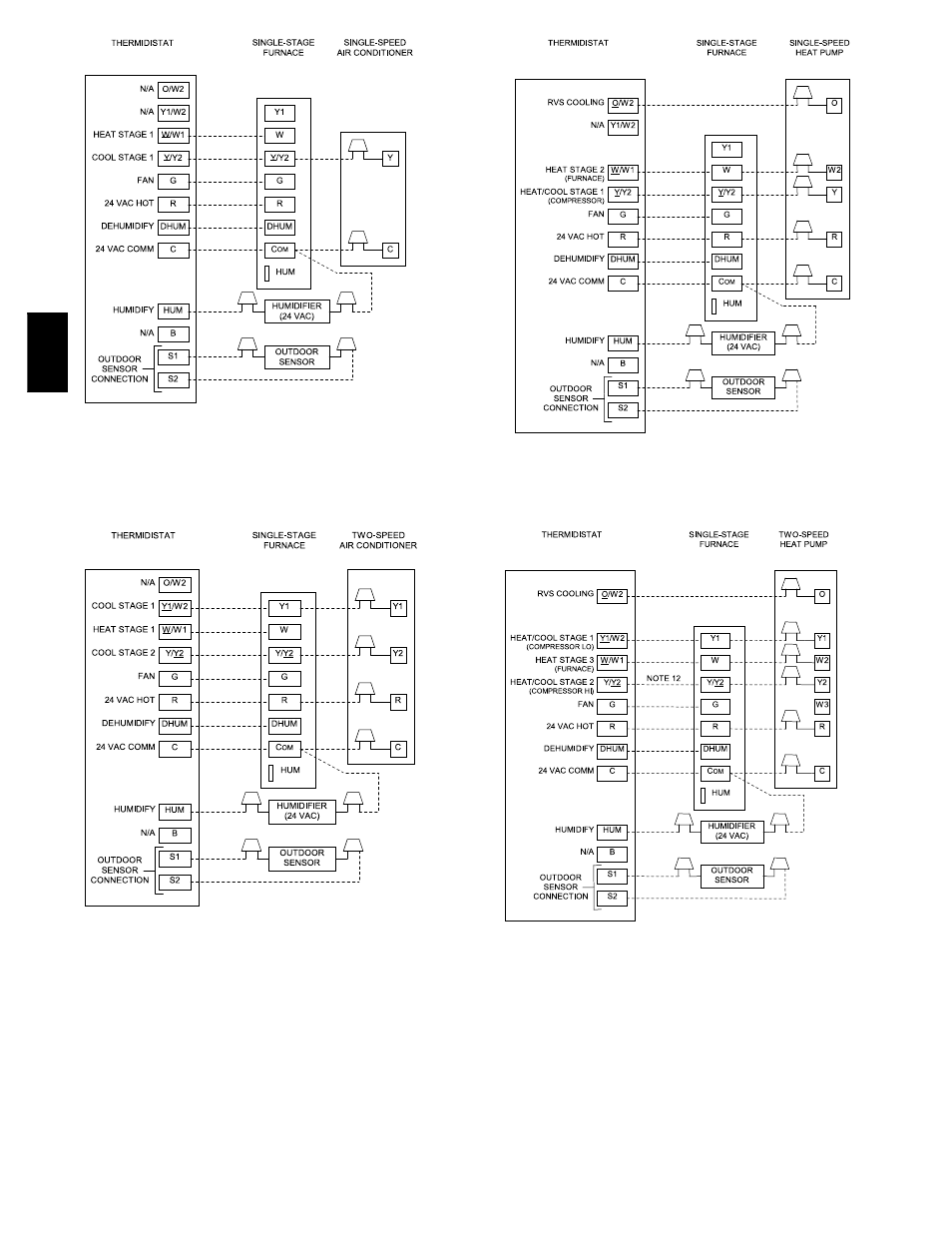

Fig. 26 -- Single--Stage Furnace with Single--Speed Air Con-

ditioner

See notes 2,5,8, and 10 on the page following these figures.

A04216

Fig. 27 -- Single Stage Furnace with Two--Speed Air Condi-

tioner

See notes 1, 2, 4, 6, 7, 9, 10 and 12 on the

page following these figures.

A04217

Fig. 28 -- Single--Stage Furnace with Single--Speed Heat

Pump (Dual Fuel)

See notes 1, 2, 3, 4, 6, 8, 9, 10 and 12 on the

page following these figures.

A04218

Fig. 29 -- Single--Stage Furnace with Two--Speed heat Pump

(Dual Fuel)

313A
