SEE NOTES: 1,2,4,5,6,7,8,9
on the page following these figures

A03207

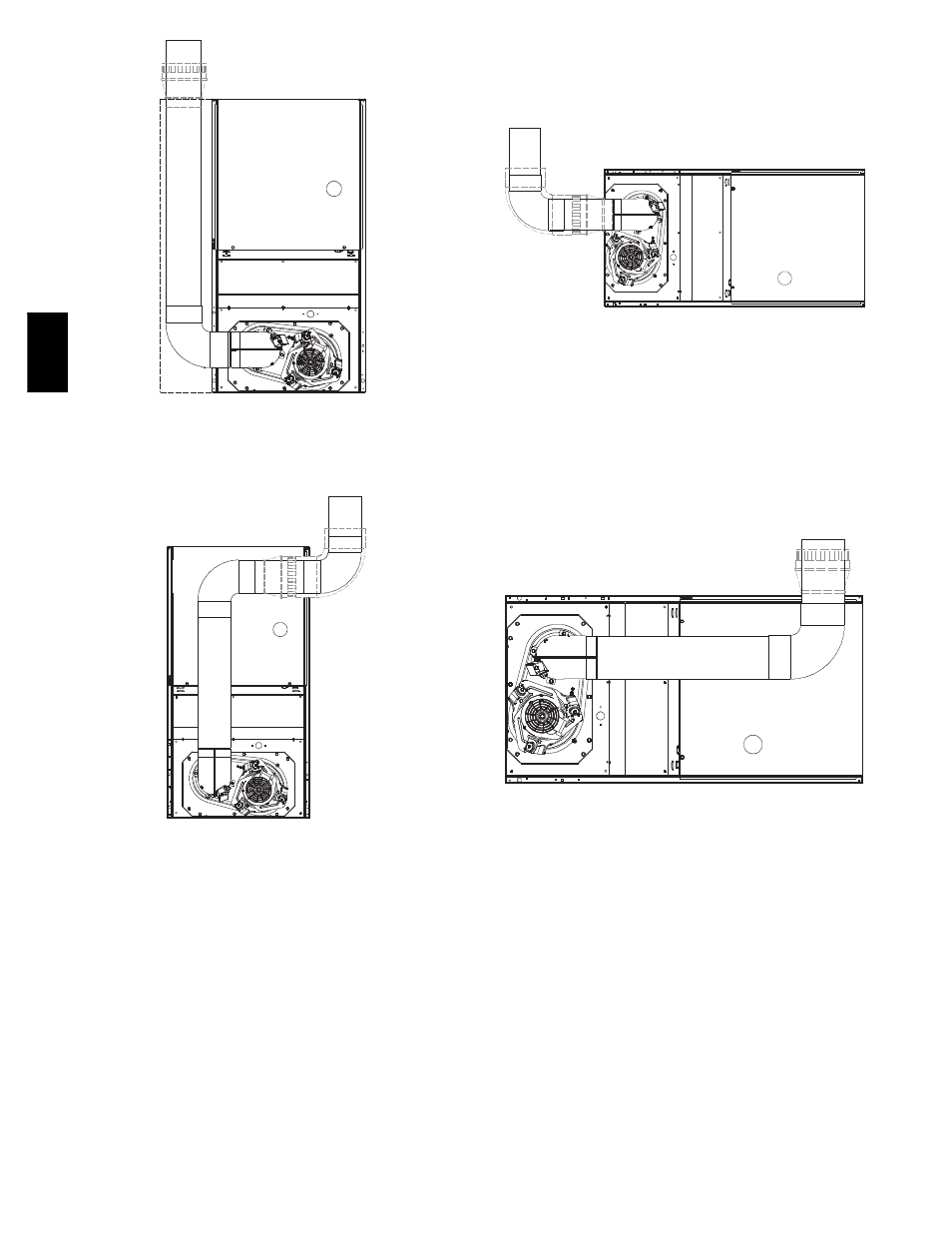

Fig. 38 -- Downflow Application--Vent Elbow Left then Up

SEE NOTES:1,2,3,4,5,7,8,9

on the page following

these figures.

A03212

Fig. 39 -- Downflow Application--Vent Elbow Up then Right

SEE NOTES: 1,2,4,7,8,9 on the page

following these figures

A03213

Fig. 40 -- Horizontal Left Application--Vent Elbow Left

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03214

Fig. 41 -- Horizontal Left Application--Vent Elbow Right

then Up
