Appendix B: Rack Mount Options
Most of the extender units can be mounted in a 19” rack using one of the two mounting kits:
• RMK19U-X3
• RMK19U-R2
RMK19U-X3 Mounting Kit
RMK19U-X3 allows you to mount up to three of the following units across 1U:
• ACUR001A
• ACURA001A
• ACUR002A
• ACURA002A
• ACU2201A
• ACU2222A
The kit contains one rack plate and M3 countersunk mounting screws.
To mount a unit:
1. Remove the feet from the extender unit.
2. Align the holes on the base plate with the vacant screw holes on the base of the extender
unit.
3. Fasten the base of the unit to the plate of the mounting kit using the supplied screws.

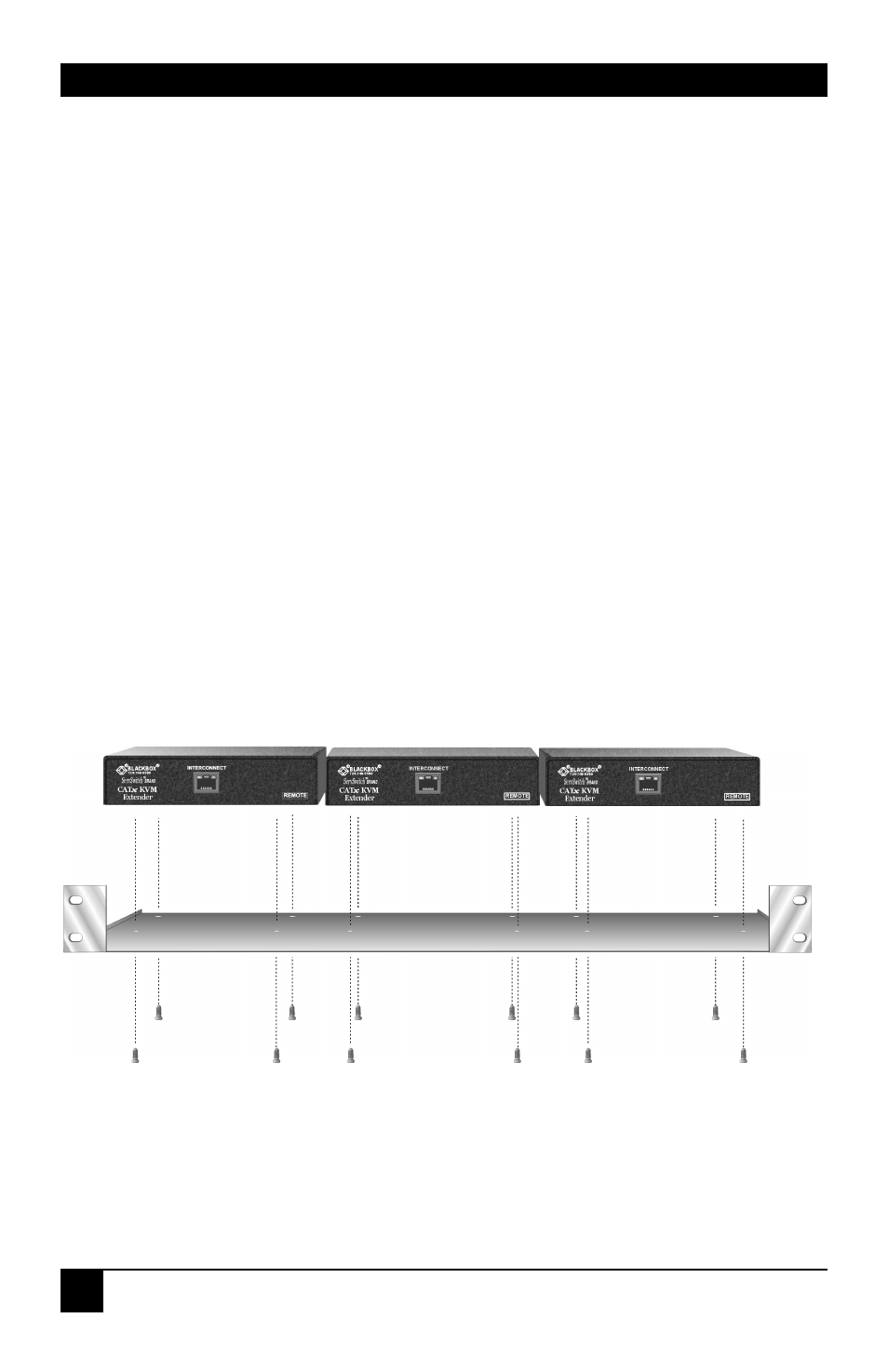

Figure 17 RMK19U-X3 Mounting Kit
