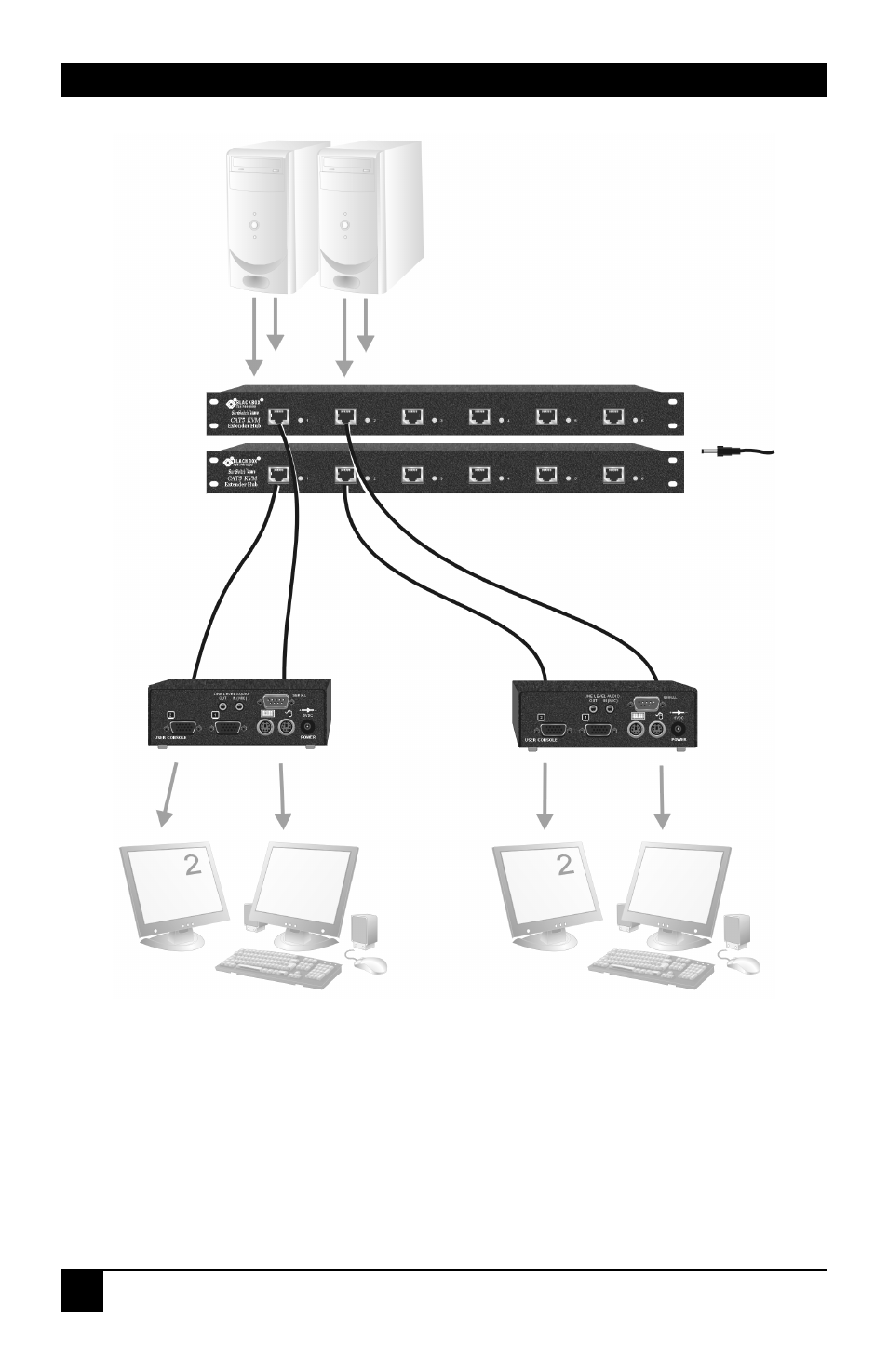

Figure 13 Dual-monitor consoles with serial and audio extension
ACU1006VRA Extender Hub
Takes primary video, keyboard,
mouse, audio and serial signals from
each CPU (only two shown).
ACU1006RA Extender Hub
Takes secondary video from each
CPU. 5V PSU required.
ACURA002A
Remote units connect
to KVM console and
secondary monitor.
5V PSU
