REMOTE UNIT CONFIGURATION & OPERATION
31
4.4 Adjusting Video
Use the following step-by-step procedure to optimize the video image on the Remote console:
1. If possible, view the online test card at:
http://www.blackbox.com/tech_support/ts_upgrades/ts_ss.html
This is an image (see Figure 10) created and used by the manufacturer for video
optimization purposes. It is particularly useful for correcting skew. If you are unable to
view the test card, display some text in a large font on a white background.
You should also open up other application windows to check the clarity
of text in toolbars and icons on the desktop.

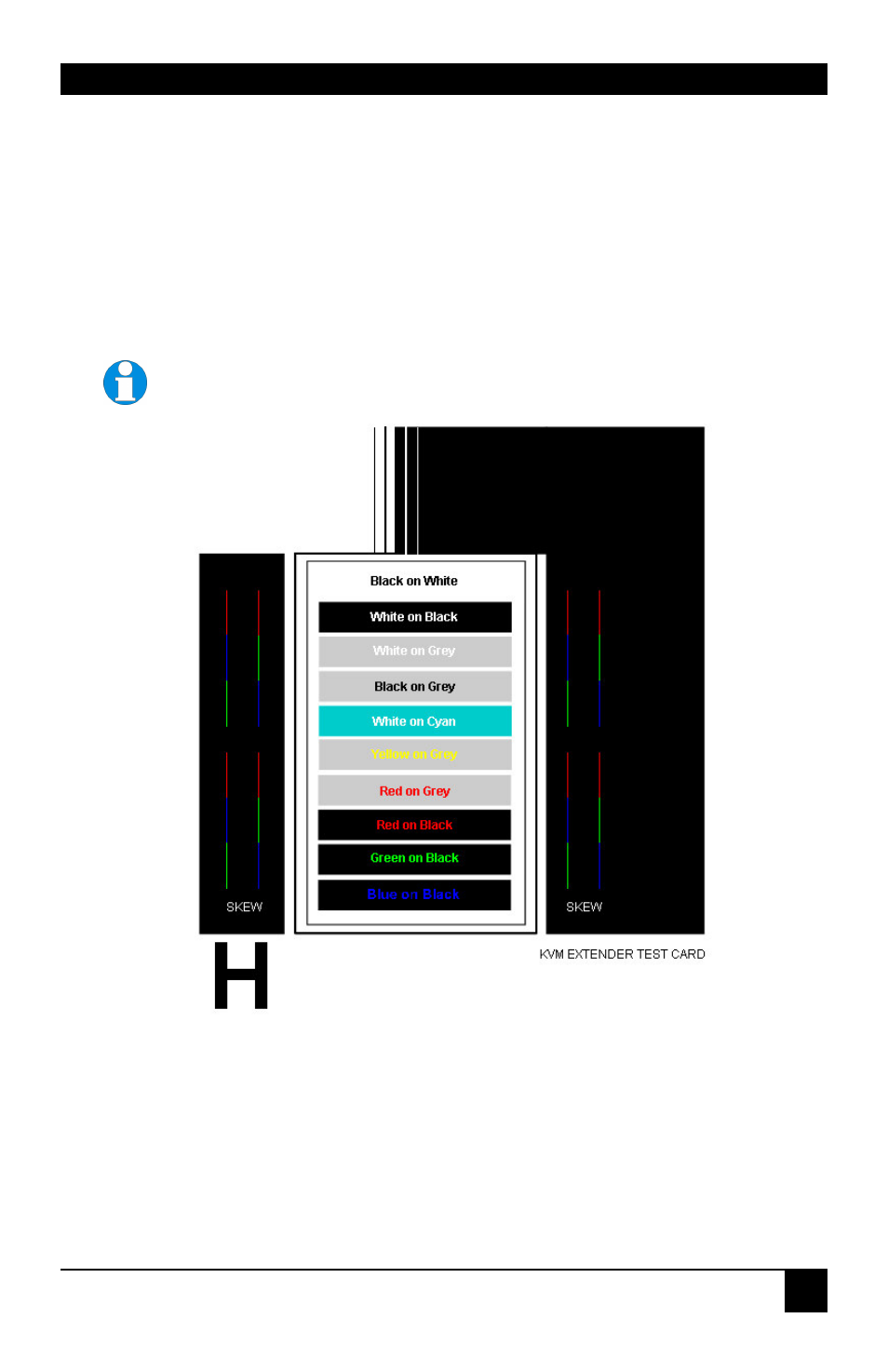

Figure 10 Online test card available at
http://www.blackbox.com/tech_support/ts_upgrades/ts_ss.html
2. Enter Command Mode (see Command Mode, page 30) by pressing the following key
combination on the Remote console’s keyboard:
+ +
