REMOTE UNIT CONFIGURATION & OPERATION
33
LF too low LF too high
HF too low HF too high

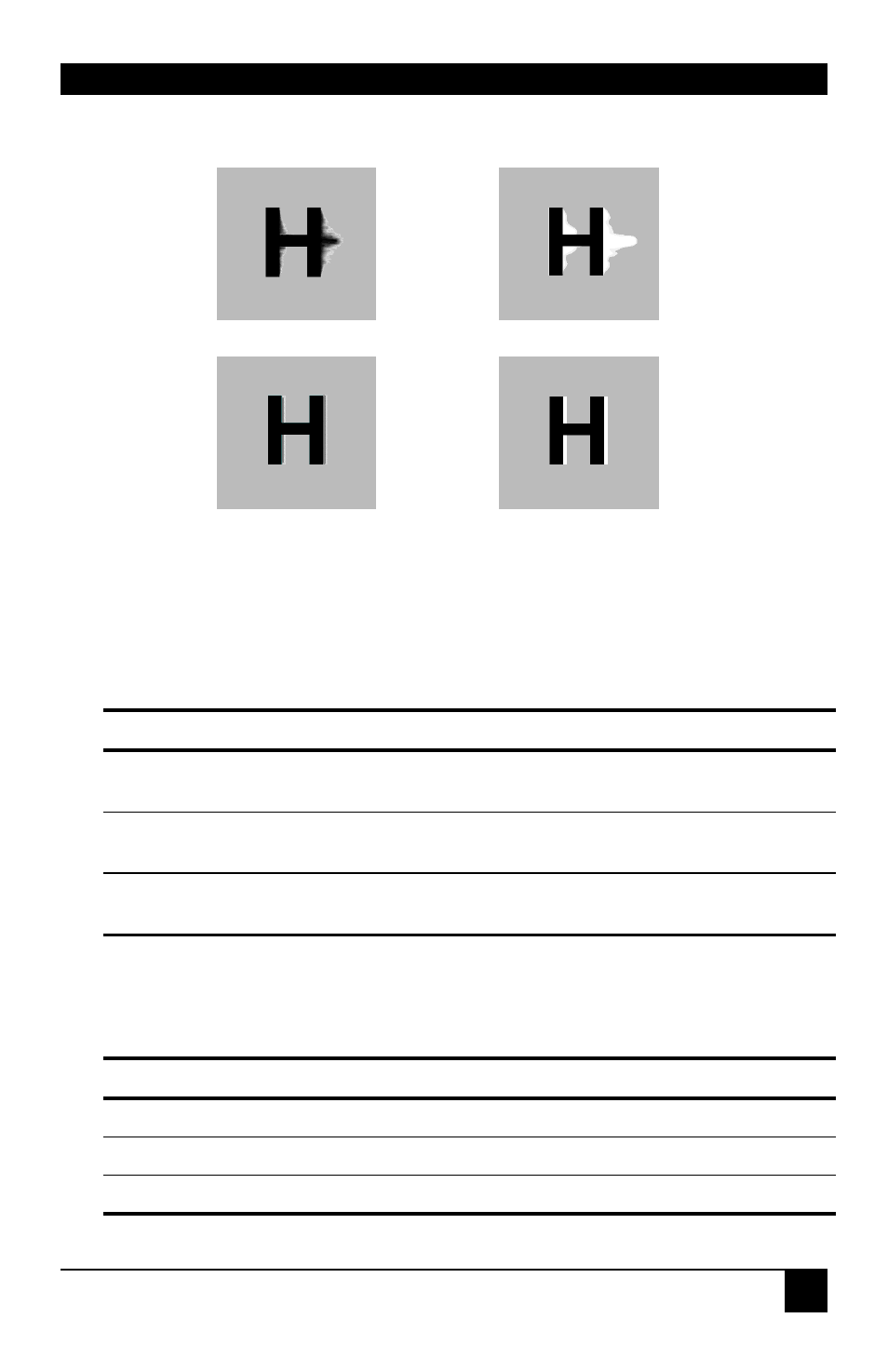

Figure 11 Problems with smearing and sharpness requiring LF and
HF adjustment
6. Identify the ‘slowest’ color – the colored line furthest to the right. Delay the signals of
the two other colors using the following commands:
Delay Command Key Sequence
Increase RED Delay (move right)
Decrease RED Delay (move left)
+
+
Increase GREEN Delay (move right)
Decrease GREEN Delay (move left)
+
+
Increase BLUE Delay (move right)
Decrease BLUE Delay (move left)
+
+
Use the Quick Skew feature to determine which color requires delaying or to quickly set
the delay on a color back to zero. Applying Quick Skew to a color toggles its delay
between zero and 19nS (a typically required value).
Quick Skew Command Key Sequence
Toggle RED Delay +
Toggle GREEN Delay +
Toggle BLUE Delay +
