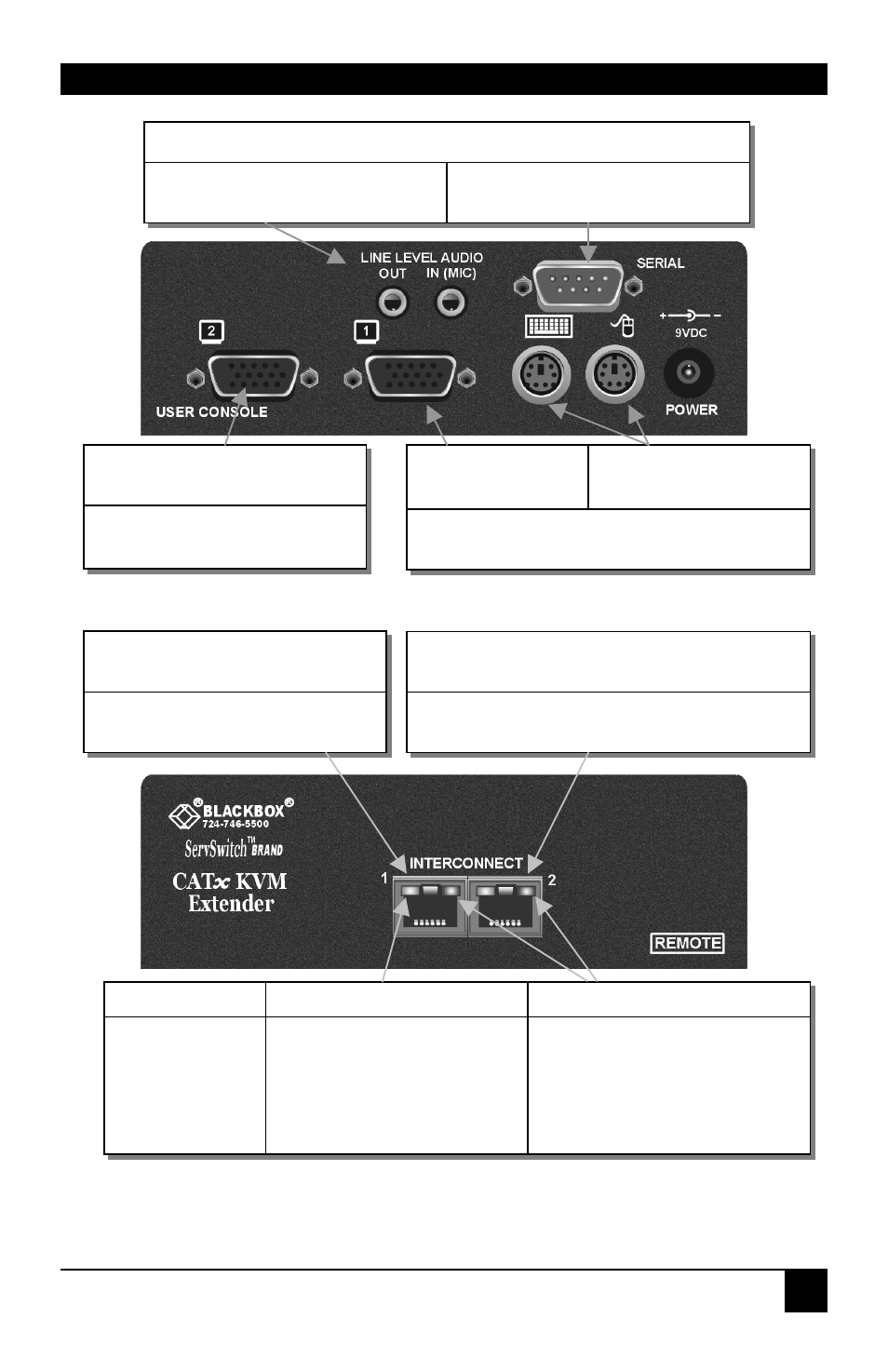

Figure 2 Remote Unit – rear view
Status Yellow LED* Green LED
OFF
ON
FLASHING
No data transfer with Local
unit
Remote Unit in Command
Mode
Data transfer with Local unit
Remote Unit not powered.
Remote Unit powered but no
video found
Remote Unit powered & video
sync found
* Yellow LED active on primary INTERCONNECT socket (Channel 1) only
Figure 3 Remote Unit - front view
Connect to
Primary monitor.
Connect PS/2
keyboard and mouse.
Connect to second monitor.
Connect to speakers and
microphone.
Connect to serial device, such as
a touch screen.
ACURA001A, ACURA002A, ACU2022A, ACU2028A, ACU2222A only
ACUR002A, ACURA002A,
ACU2201A, ACU2222A only
All Remote units
INTERCONNECT 1 – carries
primary video and data signals.
INTERCONNECT 2 – carries secondary video
signals.
All Remote units
ACU2201A, ACU2222A,
ACUR002A, ACURA002A only
