SERVSWITCH BRAND CATX KVM EXTENDER FAMILY
24

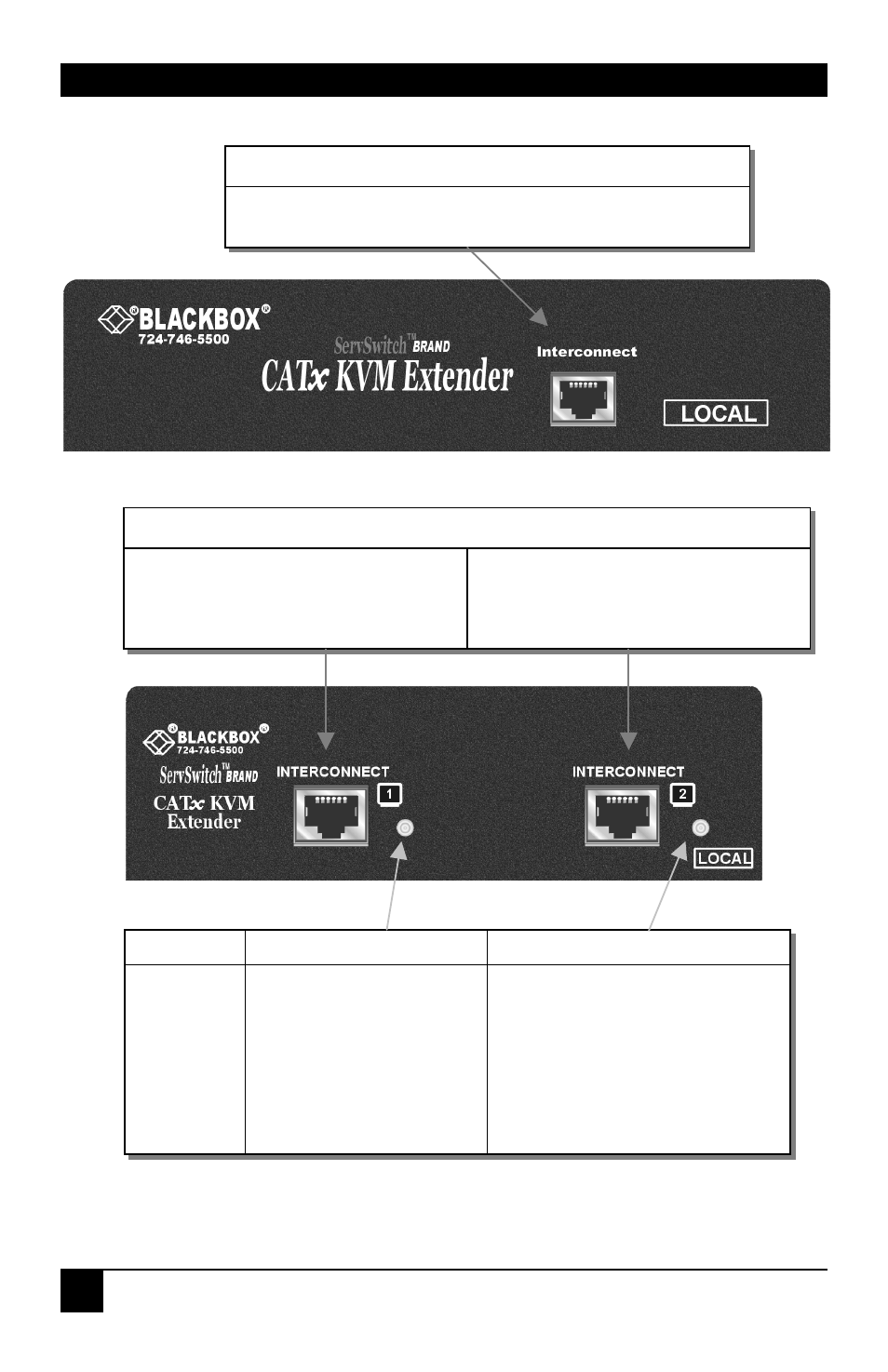

Figure 6 Local Unit (Single Video) – front view
Status LED Power LED*
OFF
ON
FLASHING
No power - Local unit not
connected or defective
No link to Remote unit
Link operating correctly
No power
Power on
*If LED is dim you need to use
an external PSU
Figure 7 Local Unit (Dual Video) – front view
ACU2001A, ACU2022A, ACU2009A, ACU2028A only
INTERCONNECT 1 – carries primary
video and data signals. Connect to
CATx cable from INTERCONNECT 1
port on Remote unit.
INTERCONNECT 2 – carries
secondary video signals. Connect to
CATx cable from INTERCONNECT 2
port on Remote unit.
ACU2201A and ACU2222A only
INTERCONNECT – carries video and data signals. Connect
to CATx cable from INTERCONNECT port on Remote unit.
