Right side
The following figure shows the computer’s right side.

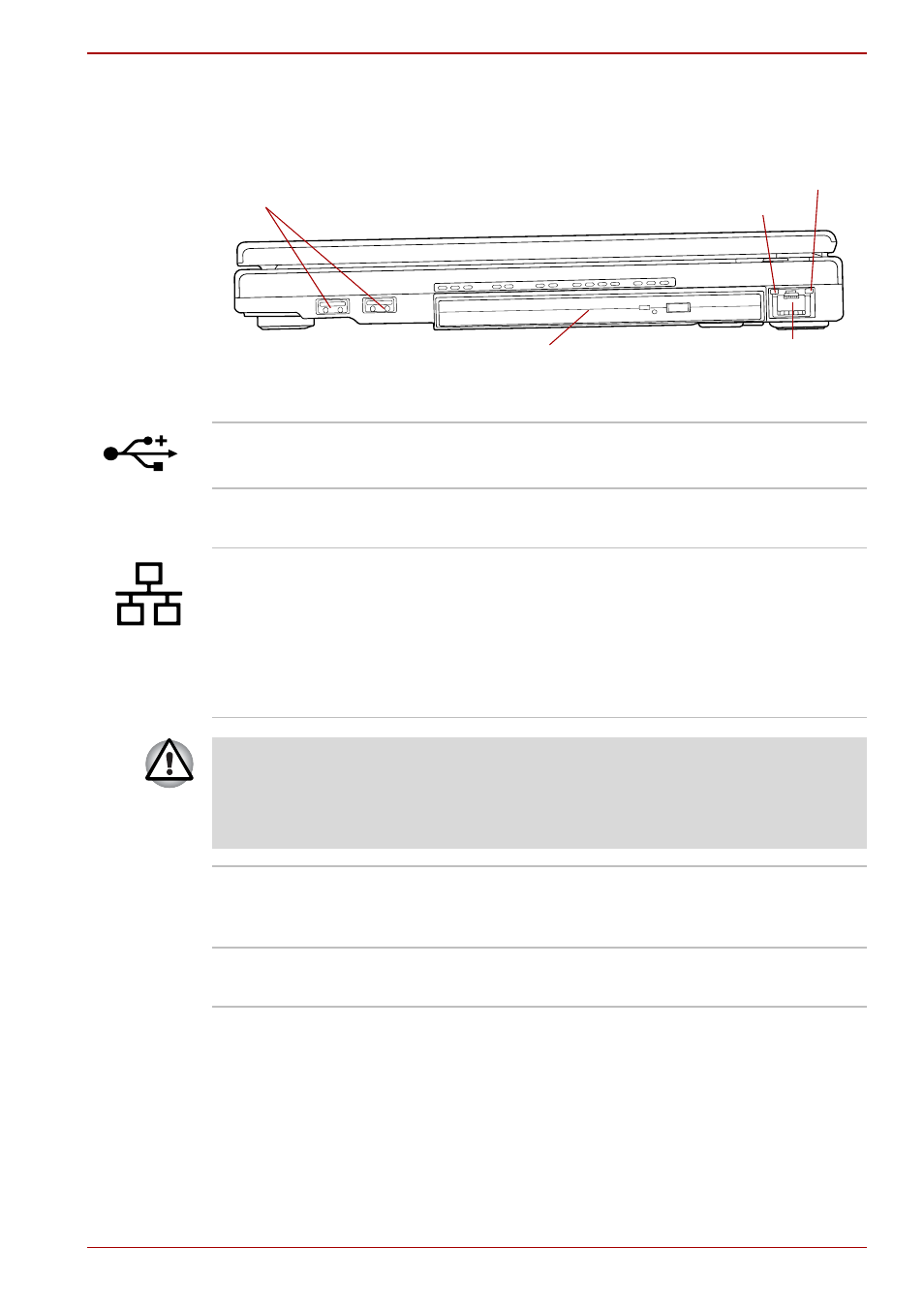

The right side of the computer
Universal Serial Bus
(USB 2.0) ports
Ultra Slim Bay LAN jack
LAN active indicator (orange)
Link indicator (green)
Universal Serial Bus
(USB 2.0) ports The Universal Serial Bus ports are on the right
side. Refer to
Left side section, for details.
Ultra Slim Bay A DVD Super Multi drive and Ultra Slim Bay HDD
Adaptor can be installed in the Ultra Slim Bay.
LAN jack This jack lets you connect to a LAN. The adaptor
has built-in support for Ethernet LAN
(10 megabits per second, 10BASE-T), Fast
Ethernet LAN (100 megabits per second,
100BASE-TX) and Gigabit Ethernet LAN
(1000 megabits per second, 1000BASE-T).
Refer to Chapter 4,
Operating Basics , for details.
■
Do not connect any cable other than a LAN cable to the LAN jack.
It could cause damage or malfunction.
■
Do not connect the LAN cable to a power supply. It could cause
damage or malfunction.
Link indicator
(green) This indicator glows green when the computer is
connected to a LAN and the LAN is functioning
properly.
LAN active indicator
(orange) This indicator glows orange when data is being
exchanged between the computer and the LAN.
