Chapter 2
The Grand Tour
This chapter identifies the various components of the computer - it is
recommended that you become familiar with each before you operate the
computer.
Front with the display closed
The following figure shows the computer’s front with its display panel in the
closed position.

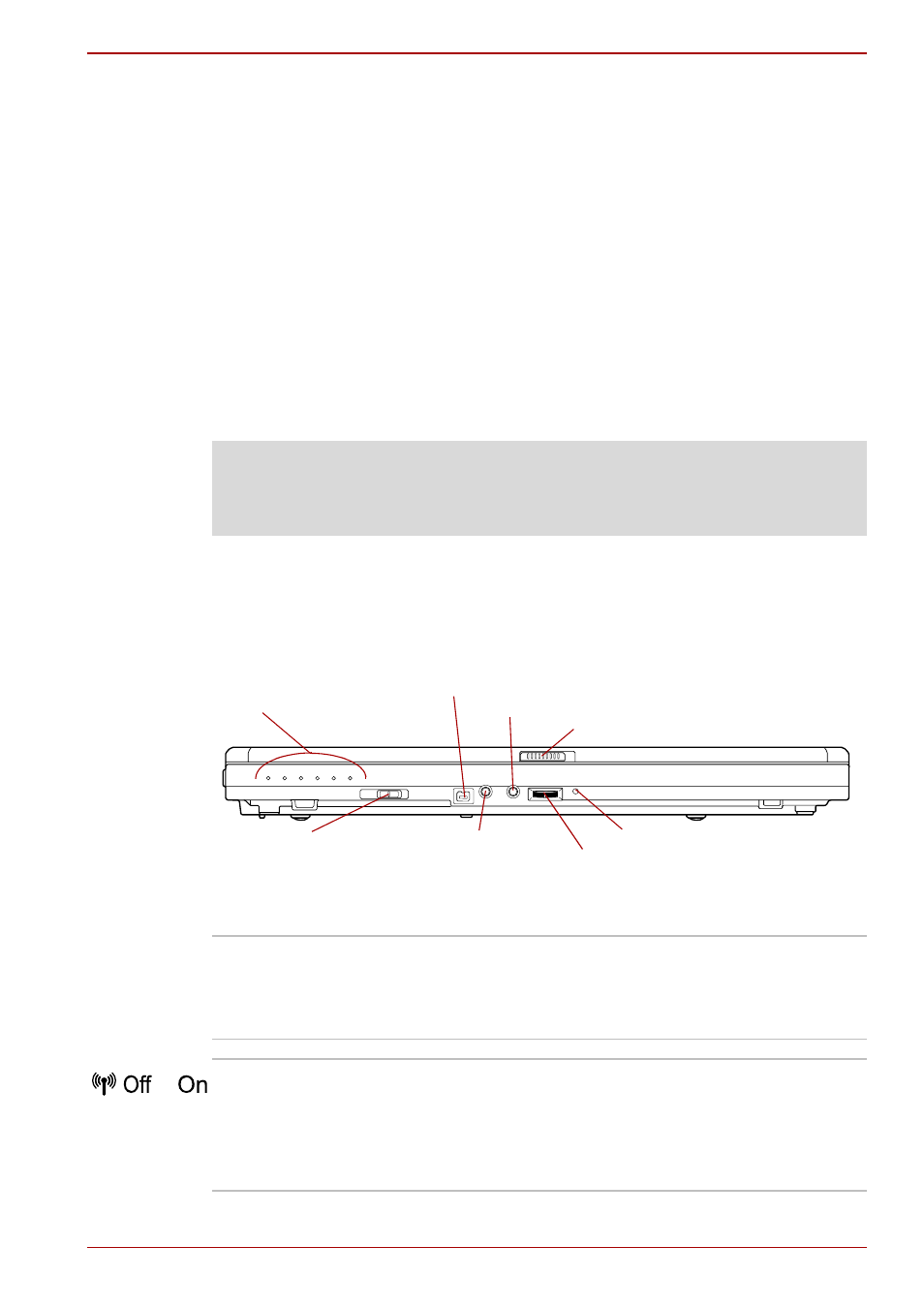

Front of the computer with display panel closed
Legal Footnote (Non-applicable Icons)
For more information regarding Non-applicable Icons, please refer to the
section in Appendix F or click the *1 above.
System
indicators
Microphone
i.LINK (IEEE1394) port
Wireless communication
switch
Display latch
Volume control dial
Headphone jack
Microphone jack
System indicators
These LED indicators allow you to monitor the
status of various computer functions and are
described in more detail within the
Wireless
communication
switch
Slide this switch to the left to turn off Wireless
LAN and Bluetooth functions. Slide it to the right
to turn on the functions.
Only some models are equipped with Bluetooth
and Wireless LAN functions.
