PORTÉGÉ R200 2-6
The Grand Tour
Underside
The following figure shows the underside of the computer. Make sure the
display is closed before turning over your computer.

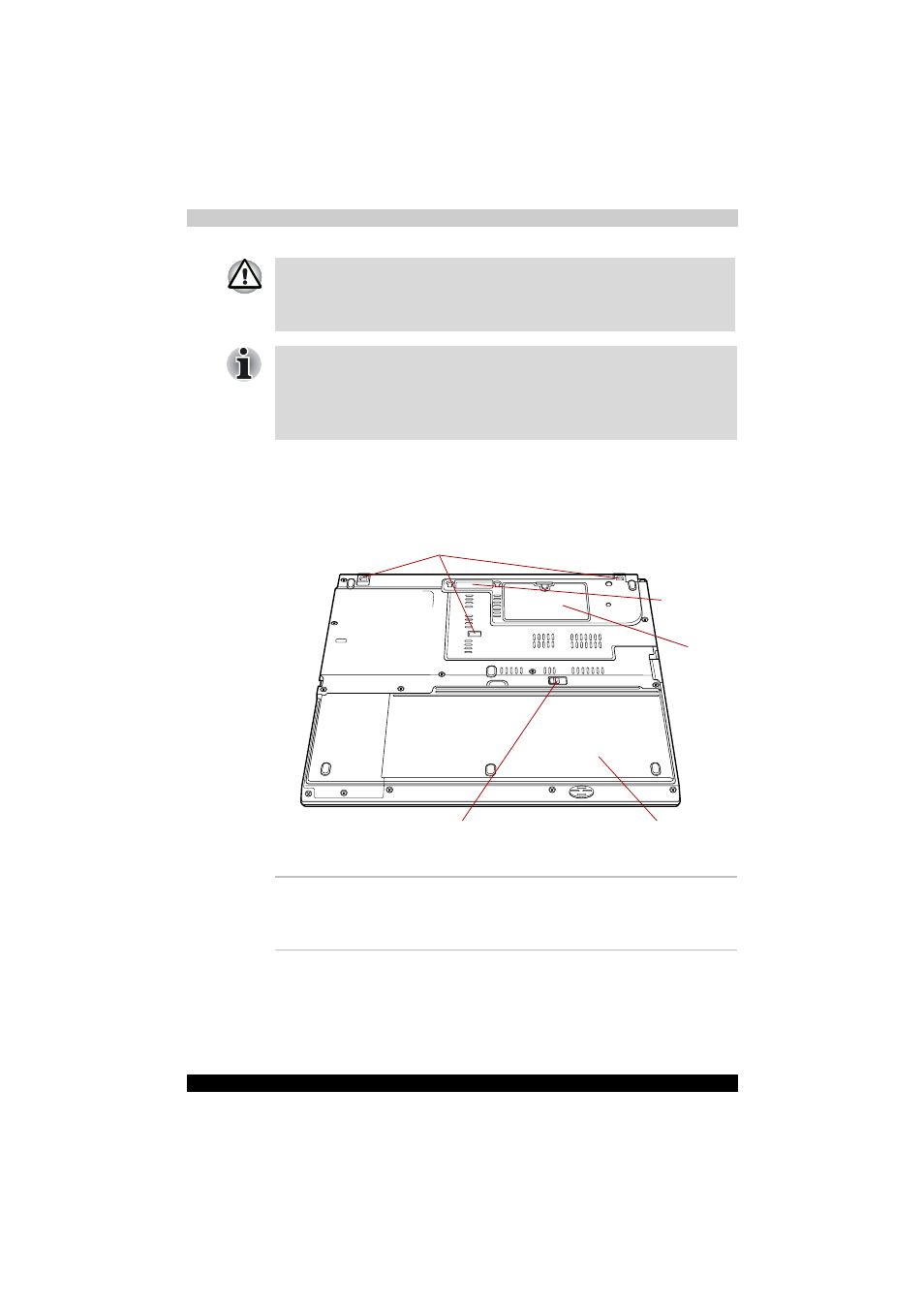

The underside of the computer
Keep foreign objects out of the USB connectors. Never allow metal
objects, such as screws, staples and paper clips, to enter the PC or
keyboard. Foreign metal objects can create a short circuit, which can
cause PC damage and fire, possibly resulting in serious injury.
■ After you have connected the Slim Port Replicator to the computer,
be sure to connect the USB cable to the USB port of the Slim Port
Replicator, instead of a USB port on the back side of the computer.
■ Operation of all functions of all USB devices has not been confirmed.
Some functions might not execute properly.
Notches
Docking
port
Memory
module cover
Battery
release latch Battery pack
Battery pack The battery pack powers the computer when the
AC adaptor is not connected. For detailed
information on the battery pack, refer to Chapter
6, Power and Power-Up Modes .
