3. Attaching the Plasma Display

After attaching the display fittings to the plasma display, attach the plasma display to the wall mounting unit.

Vertical Installation

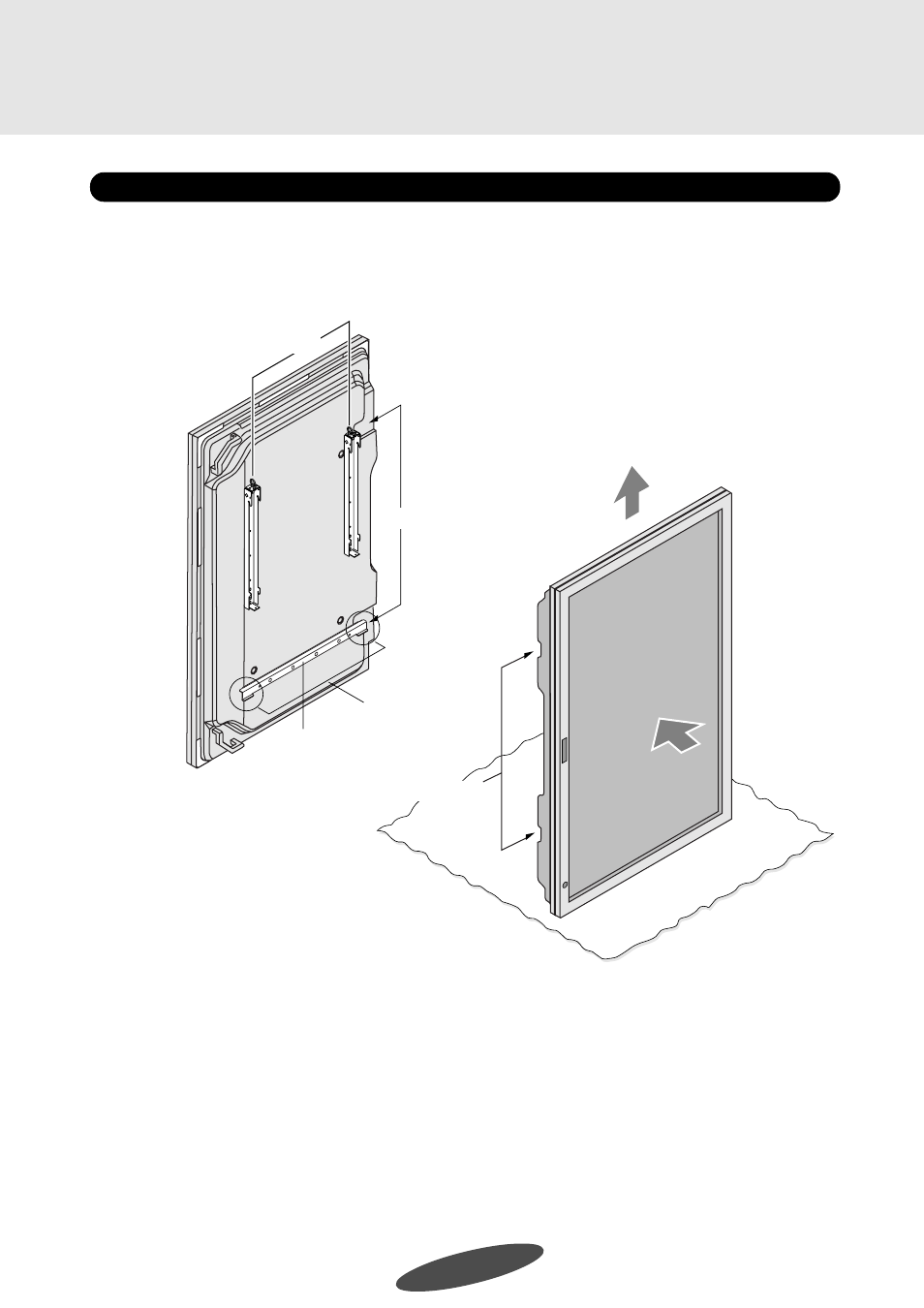

1 Place the plasma display on a cushion or other cushioning material that has been placed on a level floor,

then change the orientation as illustrated in the diagram.

Bracket

Handle portion

Eye bolt

Stand holes

※ Use the bracket that is attached to the 61-inch plasma display as a handle.

Be sure to use gloves while doing this work as a precaution against possible injury.

※ When installing the plasma display in a high position to which it cannot be lifted by hand,

it can be suspended from the eye bolts at the tops of the display fittings and lifted with a

crane or other heavy machine. Check that the eye bolts are tight before doing this.

Front
