E-5

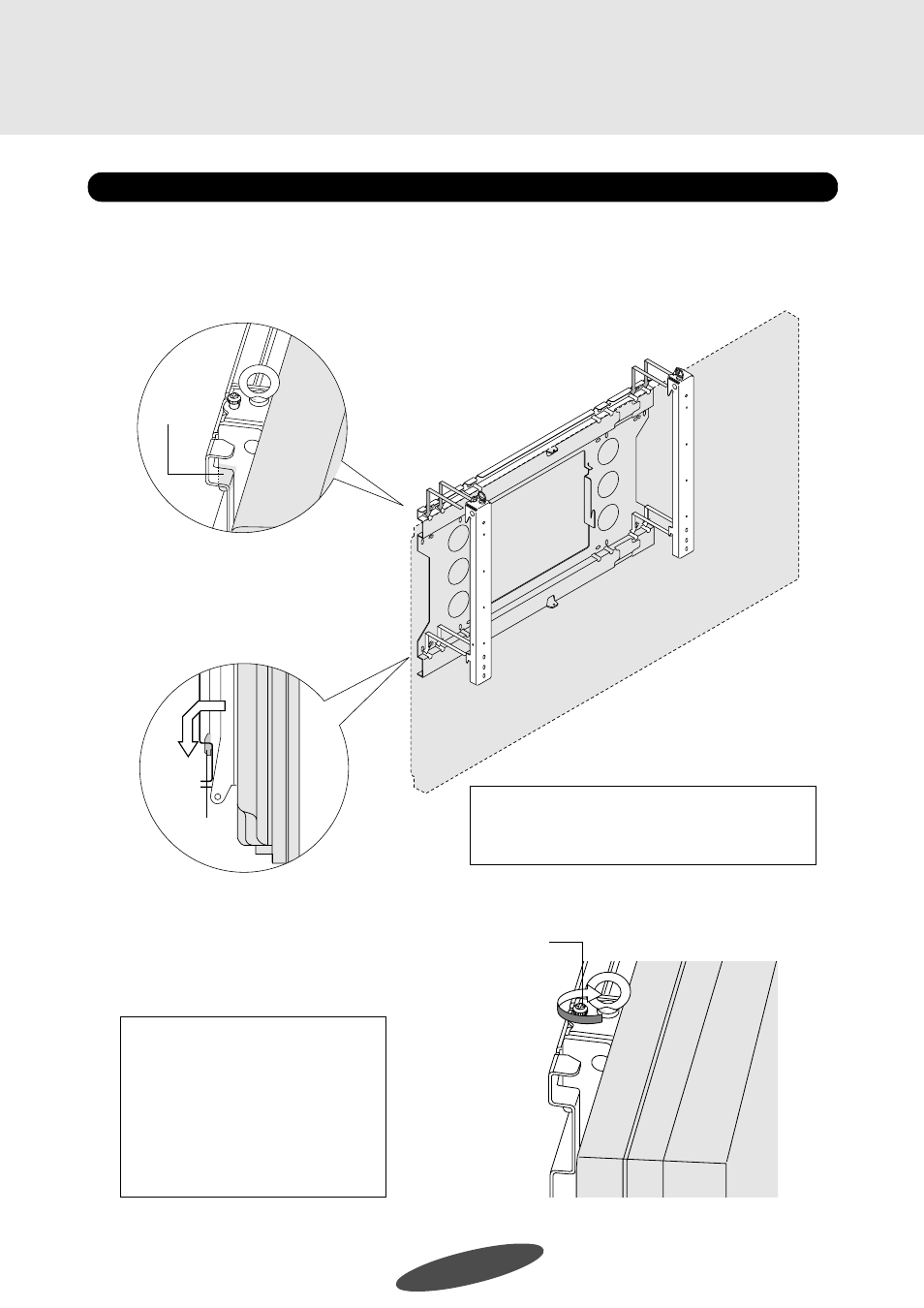

After attaching the display fittings to the plasma display, attach the plasma display to the wall mounting unit.

2 With the upper hooks engaged in the wall

mounting unit grooves, lift the plasma dis-

play directly upward about 1 cm until it stops,

then push the bottom of the plasma display

toward the wall to engage it with the lower

hooks.

3. Attaching the Plasma Display

1 Catch the upper hooks on the left and right

display fittings into the grooves in the wall

mounting unit.

Reference

:

The plasma display is properly mounted if it does not

move when the lower side is pulled towards you.

Upper hook

Lower hook

Horizontal Installation

3 Tighten the locking screws at the tops of the

left and right display fittings using a screw-

driver.

Reference:

When installing the plasma display in a

high position to which it cannot be lifted

by hand, it can be suspended from the

eye bolts at the tops of the display fit-

tings and lifted with a crane or other

heavy machine. Check that the eye bolts

are tight before doing this.

Locking screw
