E-6

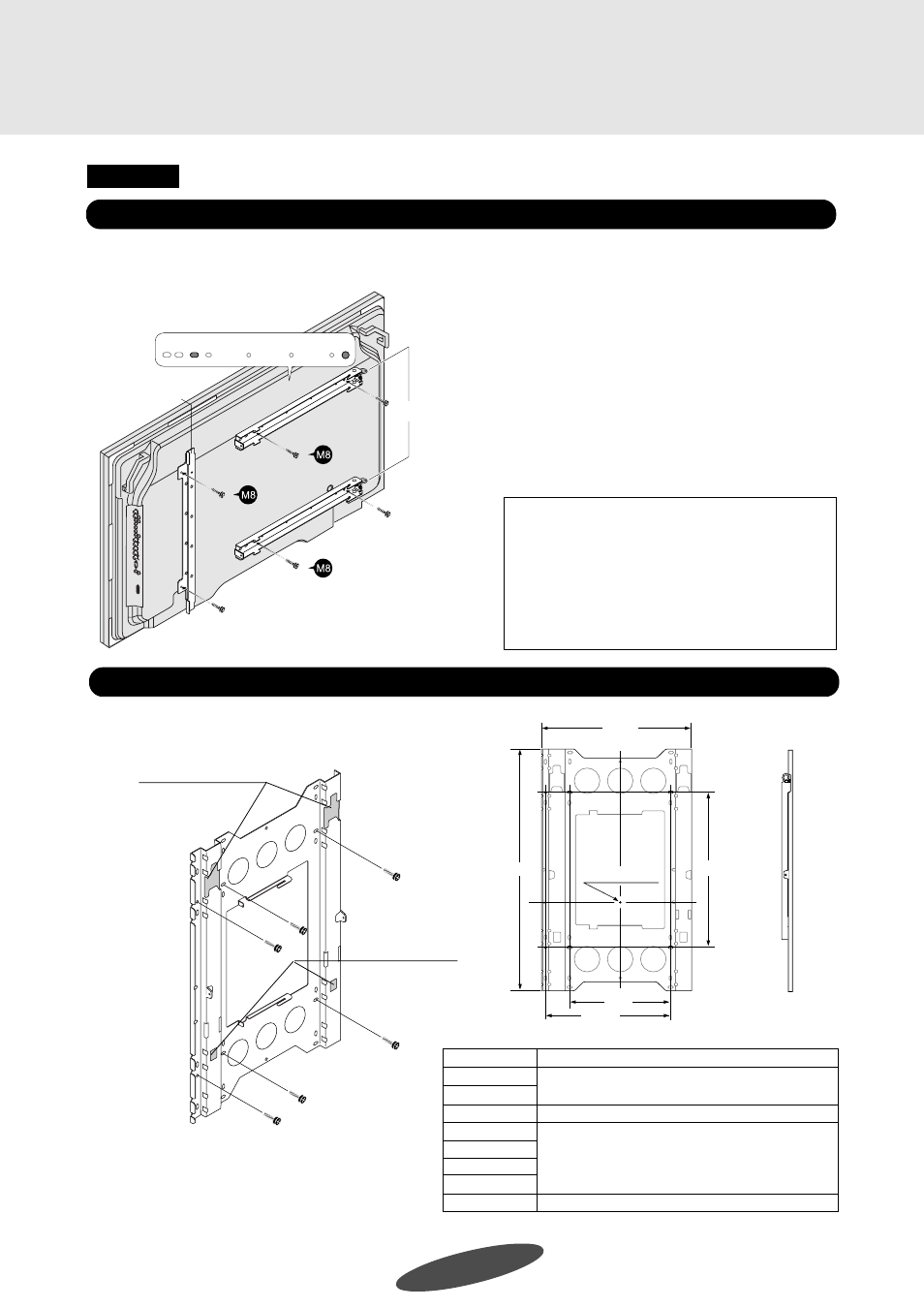

1 Use 2 of the included M8 screws to fasten one of the
two brackets to the plasma display in the direction
shown on the diagram.
2 Line up the screw holes (ø9, indicated on the dia-
gram) in the display fittings (one each for left and
right sides) with the screw holes (M8) in the rear panel
of the plasma display, and fasten the display fittings
using 2 of the included M8 screws for each fitting.
There are two display fittings, one for the right side, the other for the left. Mount the fittings so that their eye bolts are at the
inner side. Attach the fittings so that when viewed from the rear of the plasma display, the eye bolts are positioned at the
right side. Attaching the fittings in the opposite orientation will cause damage to the plasma display.
Reference: (PDP-614MX only)
When using the PDK-TS06 optional stand, the
display fittings can be attached with the plasma
display mounted on the stand.
When lifting the display, do not allow the stand to be
lifted together with the display. If the stand were to
come off, it could cause injury or damage.
1. Attaching the Bracket(s) and Display Fittings to the Plasma Display
Vertical Installation
(PDP-614MX only)
Screw the wall mounting unit to the wall using commercially
available anchors or the 6 M8 screws.
Mount with the upper hook holes at the top.
2. Attaching the Wall Mounting Unit to the Wall
NOTE: Make sure that the anchors or screws are
fastened into sections of the wall at which there
are beams. (Use anchors or screws that are suited
for use on the type of wall on which the unit is
being mounted.) For details, see the following
Table of Wall Material vs. Anchors and Screws.
Gypsum board
Plywood
Concrete
Block
ALC
Mortar
Brick
Wooden posts
* The extraction strength should be 500 kg or greater per position.
Wall Material Anchor
* Do not mount on plaster or plywood boards.
Be sure to fasten into a beam.
All anchors (850) or bolt plugs (300)
Coach screws (ø8 x 50)
Tie-Lock anchors (No. 25)
■ Table of Wall Material vs. Anchors and Screws
For the Right
Center for 61” types
610 950
400
591
494.5
Upper hook holes
Lower hook holes
φ9 φ9
ブラケット
アイボルト
For the Left
Bracket
Eye bolt
CAUTION Models PDP-615PRO, PRO-1410HD, and PDP-615EX do not support vertical installation.
