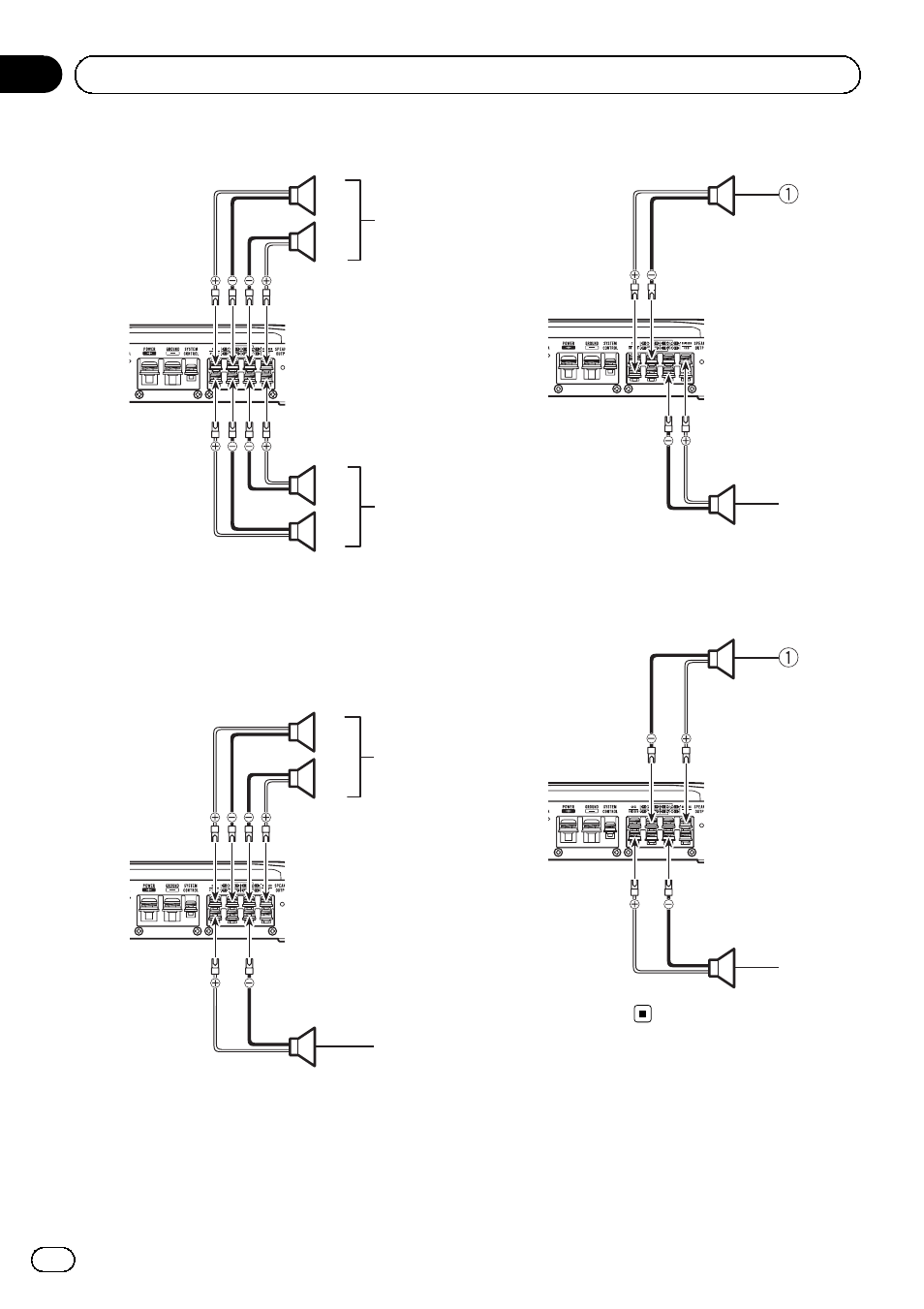

Four-channel output
3
2
1
1
2
4
1 Right
2 Left
3 Speaker out A
4 Speaker out B
Three-channel output
4
3
2
1
1 Right
2 Left
3 Speaker out A
4 Speaker out B (Mono)
Two-channel output (Stereo)
2
1 Speaker (Right)
2 Speaker (Left)
Two-channel output (Mono)
1
1 Speaker (Mono)
Connections when using
the RCA input jack
Connect the car stereo RCA output jack and
the RCA input jack of the amplifier.
En
8
Section
03 Connecting the units
