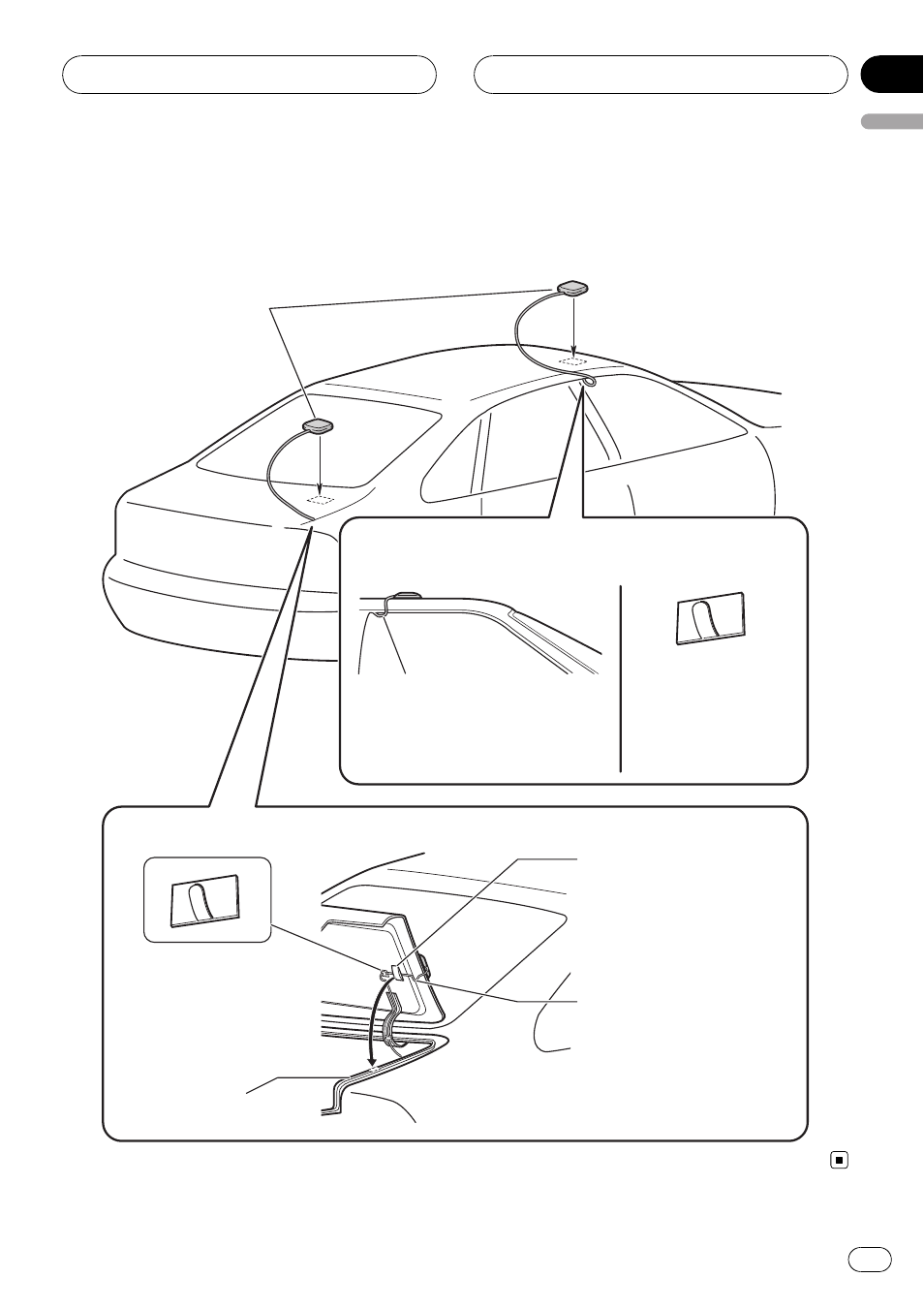

When installing the aerial outside the vehicle (on the body)

Put the GPS aerial in a position as level as possible, such as on the roof or boot lid. (The GPS aerial is fastened with a
magnet.)

Clamps
Use clamps to secure
the lead where
necessary inside the
vehicle.

Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.

GPS aerial

When routing the lead in from the top of the
door

Make a U-shaped loop in the lead
on the outside to prevent rainwater
from flowing along the lead into the
interior of the vehicle.

When routing the lead in from inside the boot

Waterproof pad
Make sure the waterproof pad
contacts the top of the rubber
packing.

loop in the

lead outside the rubber
packing to prevent rainwater
from flowing along the lead
into the interior of the vehicle.

Rubber packing

Make a U-shaped
