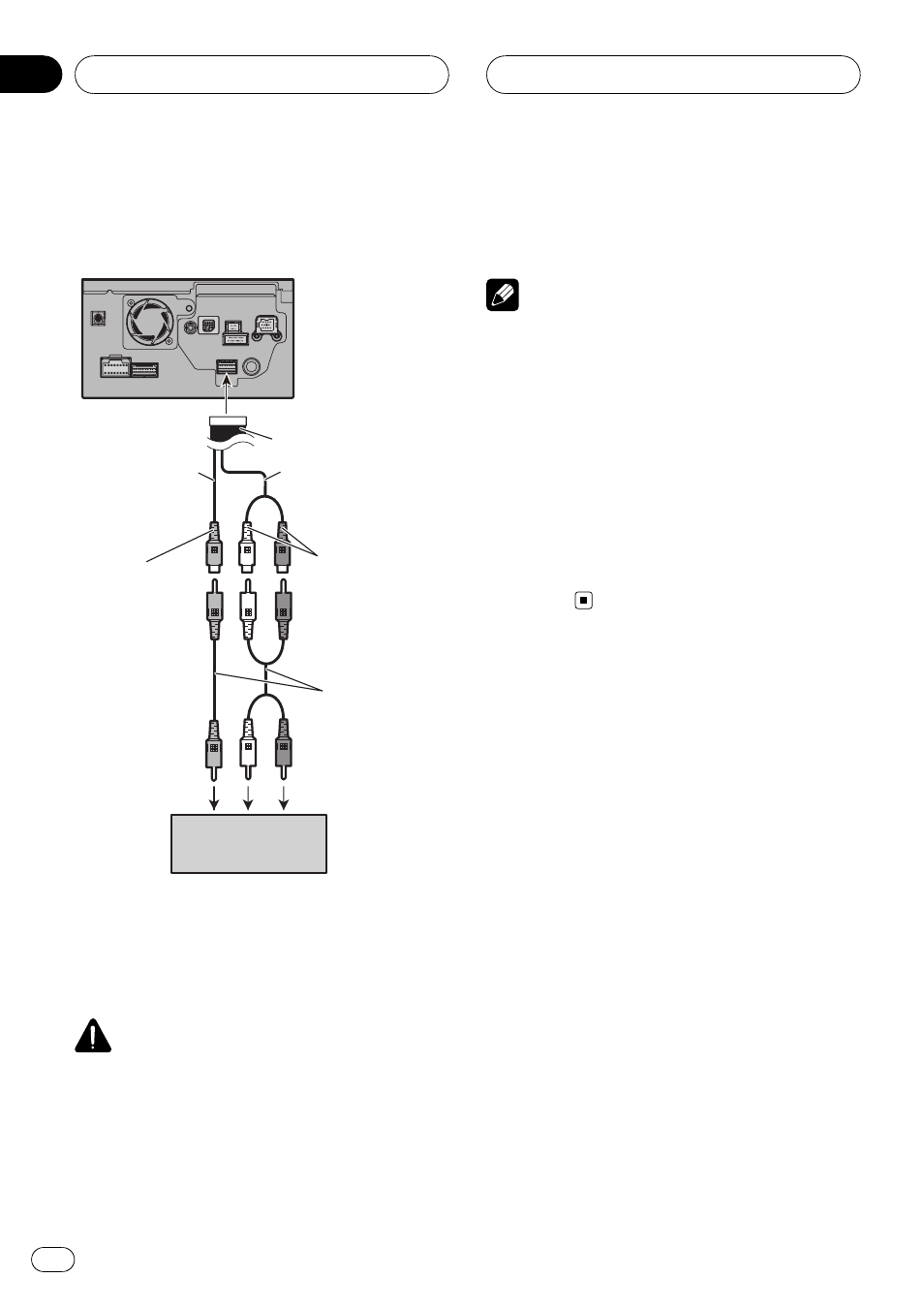

When connecting the rear
display
To audio inputs
Yellow
(REAR
MONITOR
OUTPUT)
15 cm
RCA connector 2
RCA cables
(sold separately)
To video input
The navigation unit
Rear display with
RCA input jacks
23 cm
Red, white
(REAR
MONITOR
OUTPUT)
When using a rear display
connected to rear video output
WARNING
NEVER install the rear display in a location
that enables the driver to watch the video
source while driving.
This navigation system
’s rear video output is for
connection of a display to enable passengers in
the rear seats to watch the video source.
You can switch the rear screen mode in [ AV
Source Menu]. (For details, refer to the operation
manual.)
Notes
! The map screen navigation images output to
the rear display differ from standard NTSC for-
mat images. Therefore, their quality will be in-
ferior to the images that appear on the front
display.
! The navigation system automatically switches
the colour system (NTSC, PAL, SECAM) for
each video and outputs the video on the
“Rear
Display
”. To correctly output each type of
video on the
“Rear Display”, we recommend
using a
“Rear Display” with a function to auto-
matically switch the colour system (e.g. AVD-
W7900).
Connecting the System
Engb
18
Section
02
