When installing the aerial inside the vehicle (on the rear shelf)

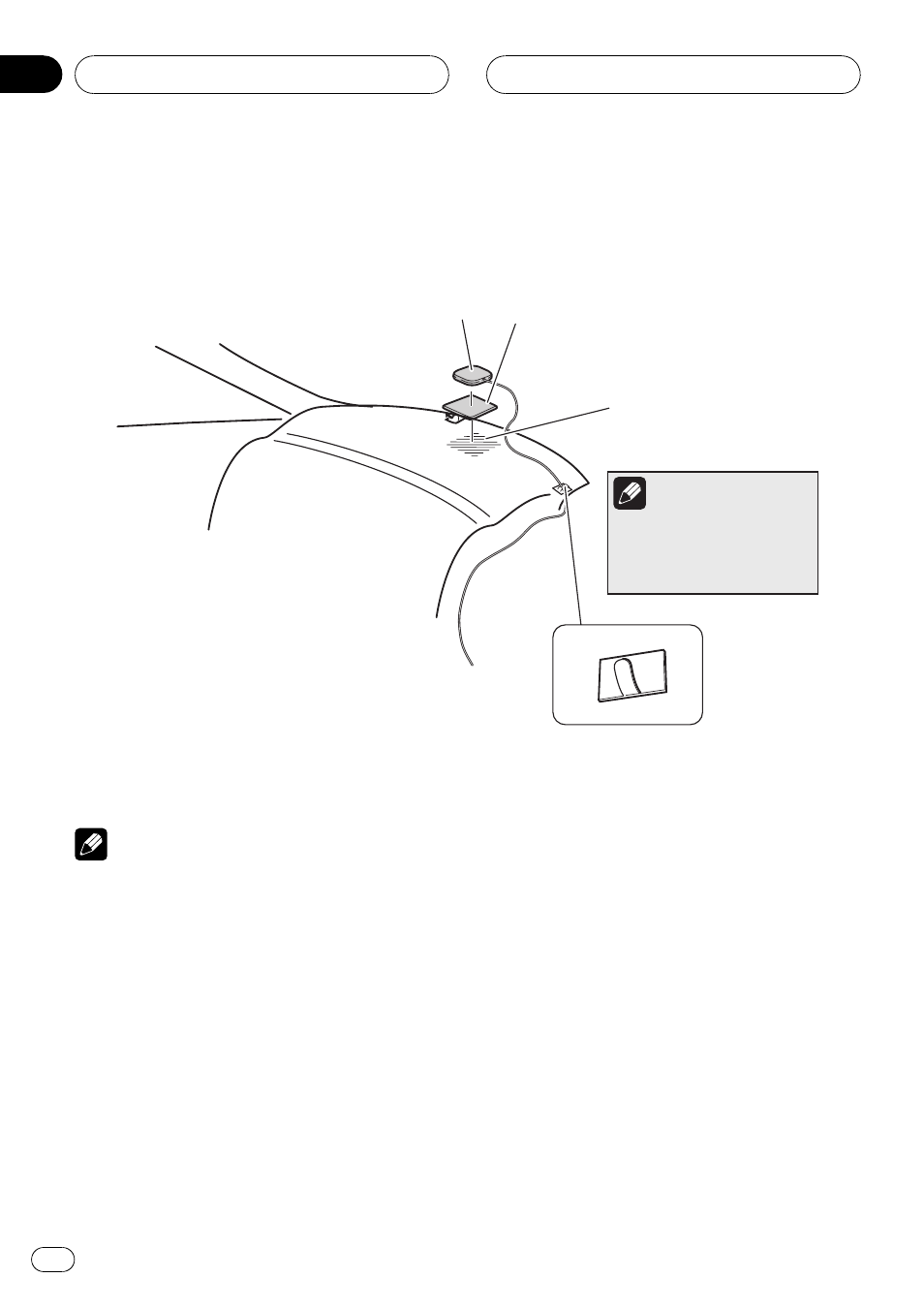

Affix the metal sheet on as level a surface as possible where the GPS aerial faces the window. Place the GPS aerial on
the metal sheet. (The GPS aerial is fastened with its magnet.)

Metal Sheet
Peel of f the protective sheet
on the rear.

GPS aerial

Make sure the surface is
free of moisture, dust,
grime, oil, etc., before
affixing the metal sheet.

Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.

The metal sheet contains a
strong adhesive which may
leave a mark on the surface if
it is removed.

Note

Notes

! When attaching the metal sheet, do not cut it

into small pieces.

! Some models use window glass that does not

allow signals from GPS satellites to pass
through. On such models, install the GPS aer-
ial on the outside of the vehicle.
