Upgrades

Bottom Drives - 8

If you are installing a 68-pin

drive (WS 9650 Only):

5 Connect the Ultra Wide

SCSI cable to the drive.

Note:

The unit comes

with the top rear drive

set to SCSI ID 0. Be sure

to set the SCSI ID on the

lower hard drive to a

number that is not

currently being used by

the system. Refer to the

Basics chapter for a full

explanation of SCSI IDs

and termination.

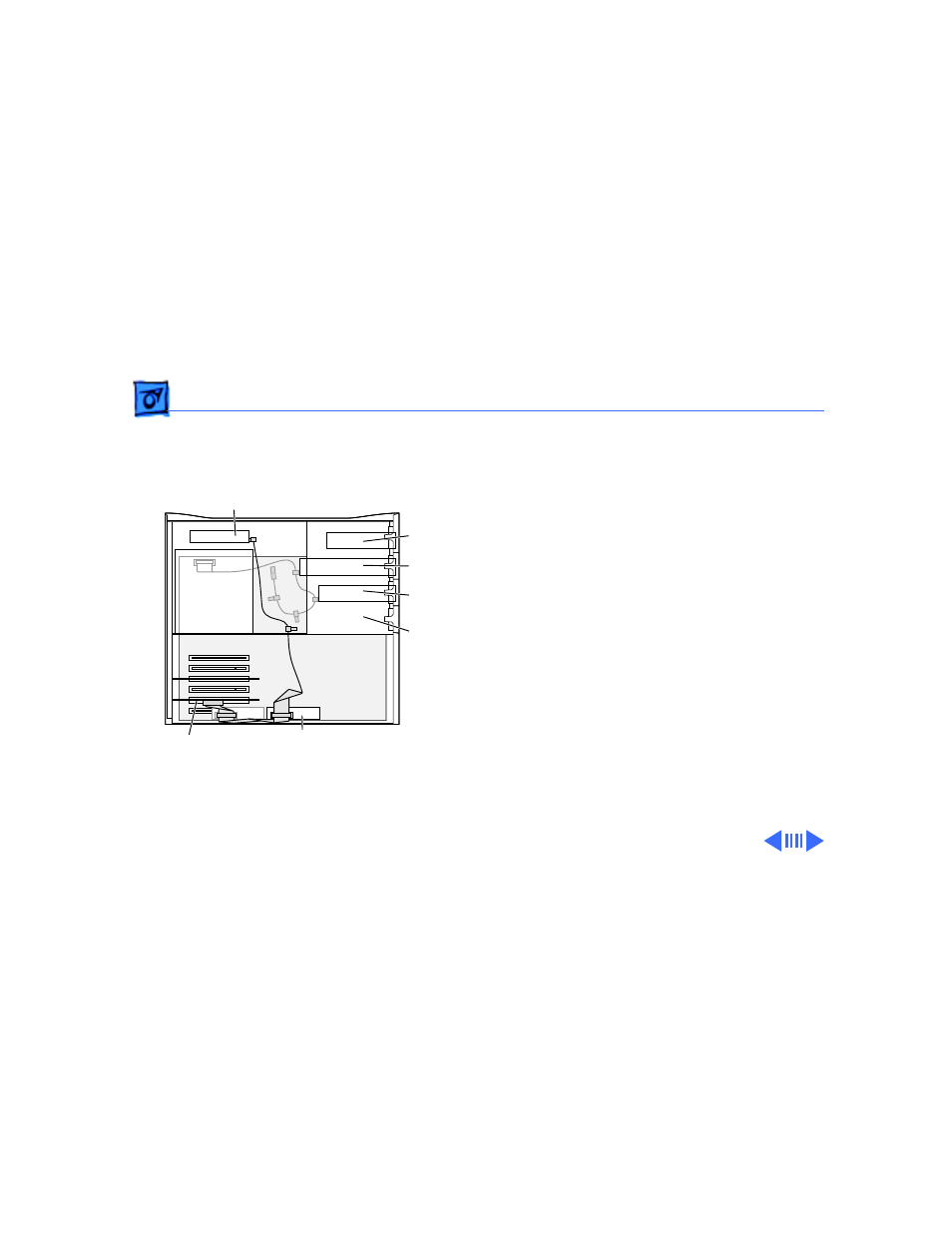

The internal hard disk drive (SCSI ID 0)
is connected to the Ultra Wide SCSI-3 bus.

One 5.25" Hard Disk Drive or two 3.5"Hard Disk Drives
can be installed on the floor of the server and
connected to the Ultra Wide SCSI-3 bus. (Some
Workgroup Server models come with a second Hard
Disk Drive [SCSI ID 1] installed here.)

SCSI
PCI
Card

Tape backup Drive
(optional)

CD-ROM Drive

Floppy Disk Drive

You can install a SCSI
device in this expansion
bay and connect it to the
Ultra Wide SCSI-3 bus.
