Take Apart

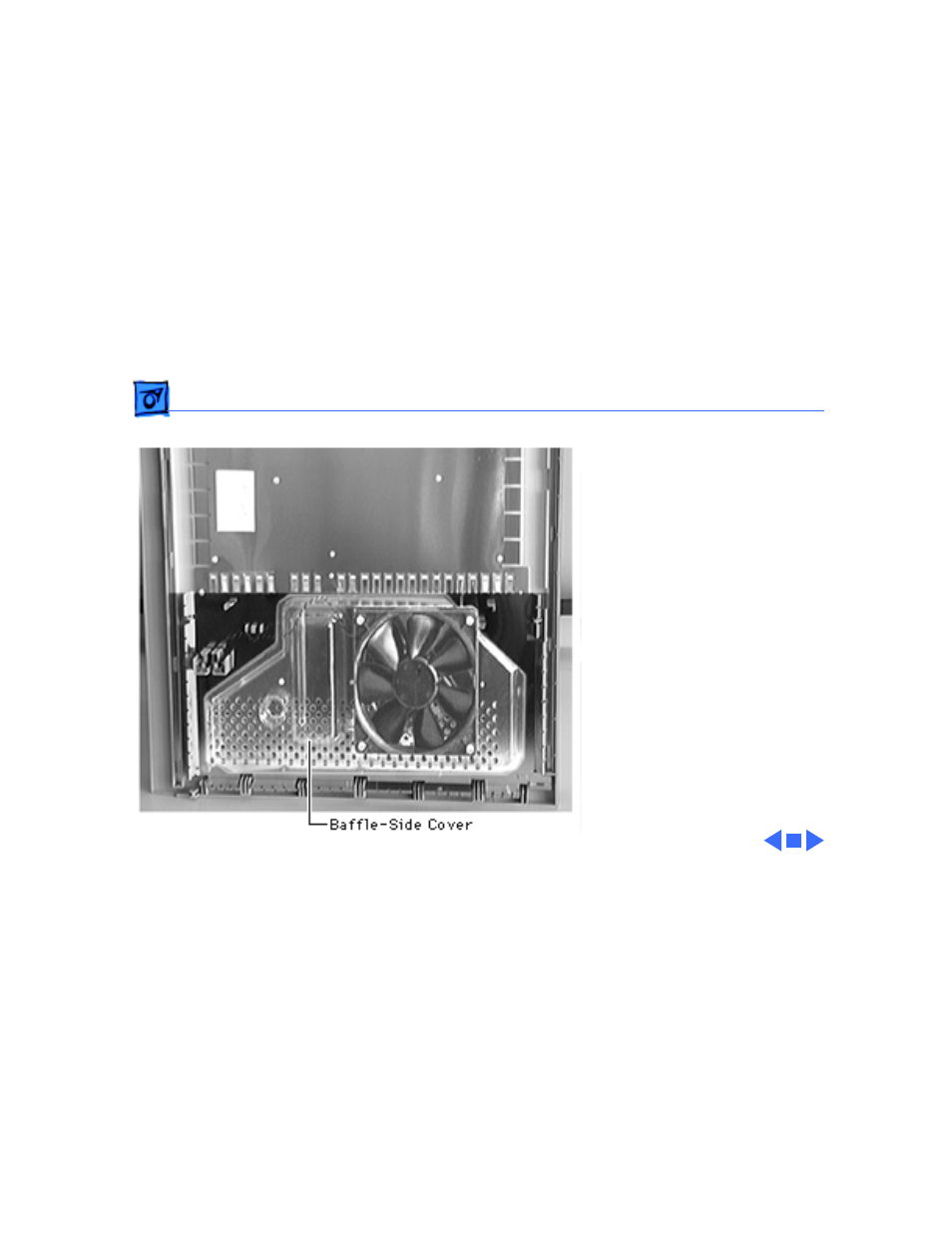

Baffle - 20

1 The baffle has adhesive

along its edges. Press the

baffle into place as

shown.

Replacement Note:

If you

are installing a baffle in a

unit that previously did not

have one, you will need to

change the orientation of the

fan (that is, the fan label

should face in towards the

sheet metal of the side access

panel when the baffle is

installed.) Refer to the

“Fan Assembly” take apart

topic for more information.
