Upgrades

PCI Card - 4

3

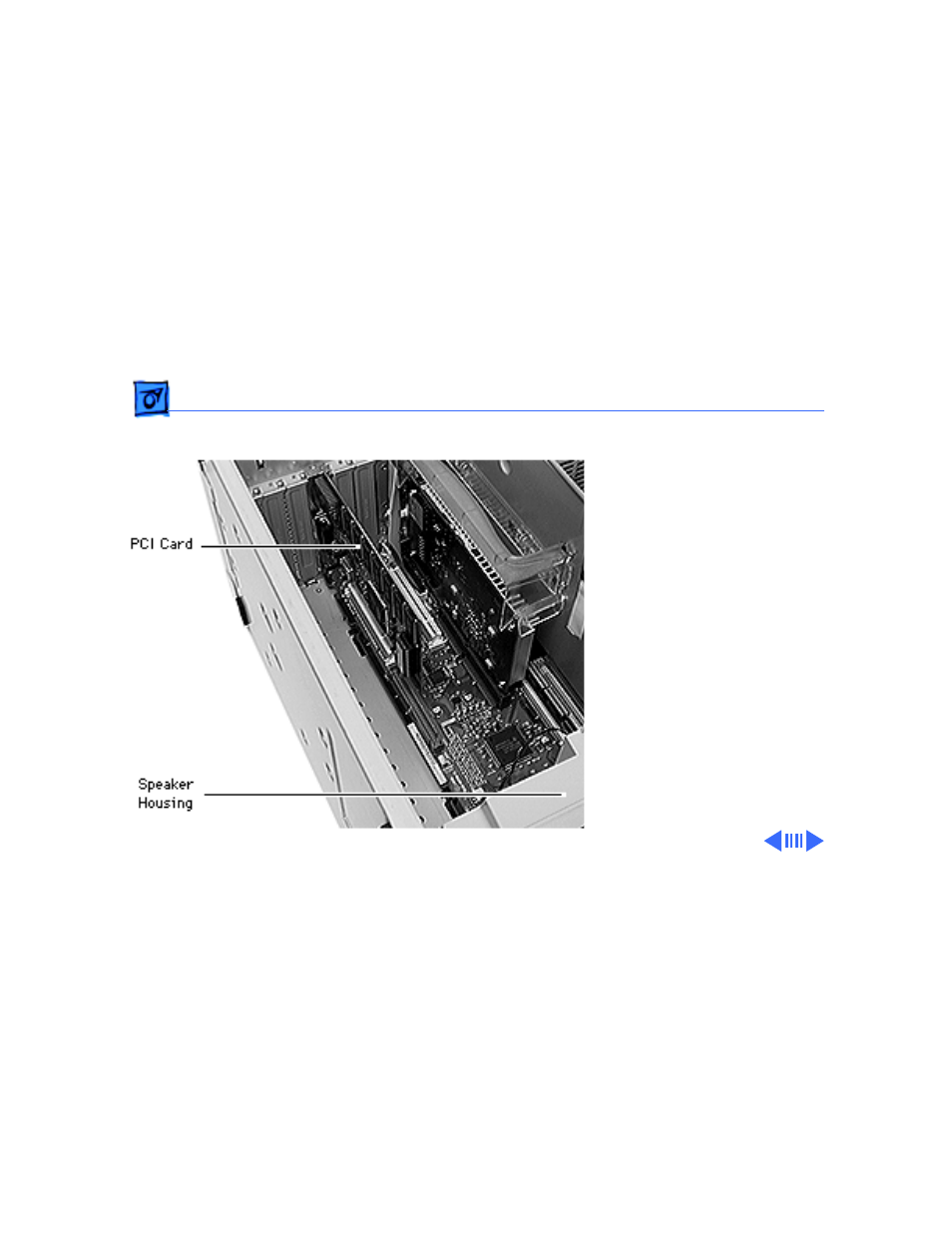

Note:

For longer PCI

cards, slide the end of

the card opposite the

connector into the

appropriate slot in the

speaker housing.
Align the PCI card with

the expansion slot and

press in firmly until the

connector is seated.

Note:

Refer to the PCI

card manual for addi-

tional cable connections.

4 Replace the screw that

you removed from the

expansion card cover.
