Upgrades

PCI Card - 5

Replacement Note for WS

9650 Only:

5 If you disconnected the

Ultra Wide SCSI cable

earlier in this

procedure, reconnect the

cable as shown.

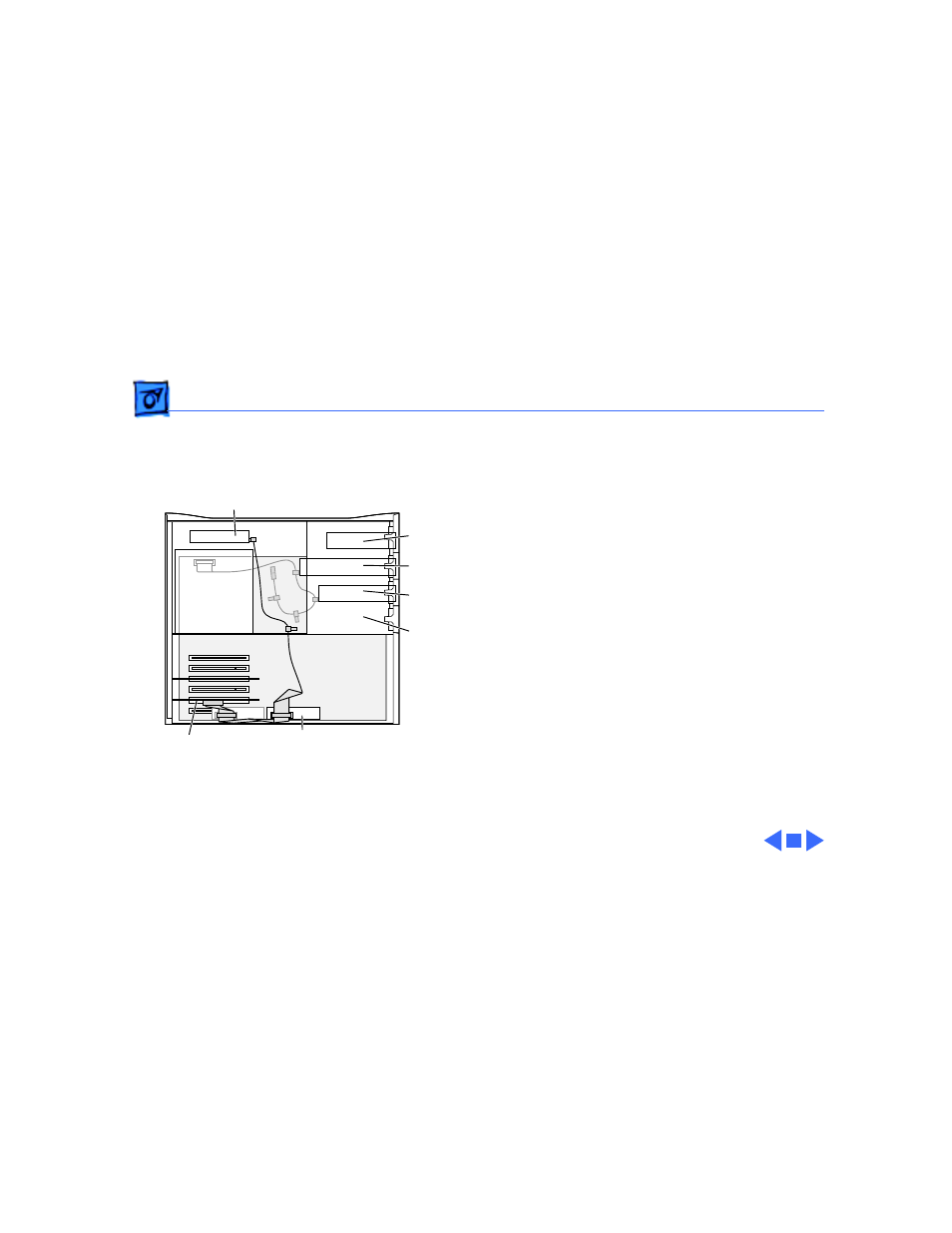

The internal hard disk drive (SCSI ID 0)
is connected to the Ultra Wide SCSI-3 bus.

One 5.25" Hard Disk Drive or two 3.5"Hard Disk Drives
can be installed on the floor of the server and
connected to the Ultra Wide SCSI-3 bus. (Some
Workgroup Server models come with a second Hard
Disk Drive [SCSI ID 1] installed here.)

SCSI
PCI
Card

Tape backup Drive
(optional)

CD-ROM Drive

Floppy Disk Drive

You can install a SCSI
device in this expansion
bay and connect it to the
Ultra Wide SCSI-3 bus.
