Take Apart

Logic Board - 89

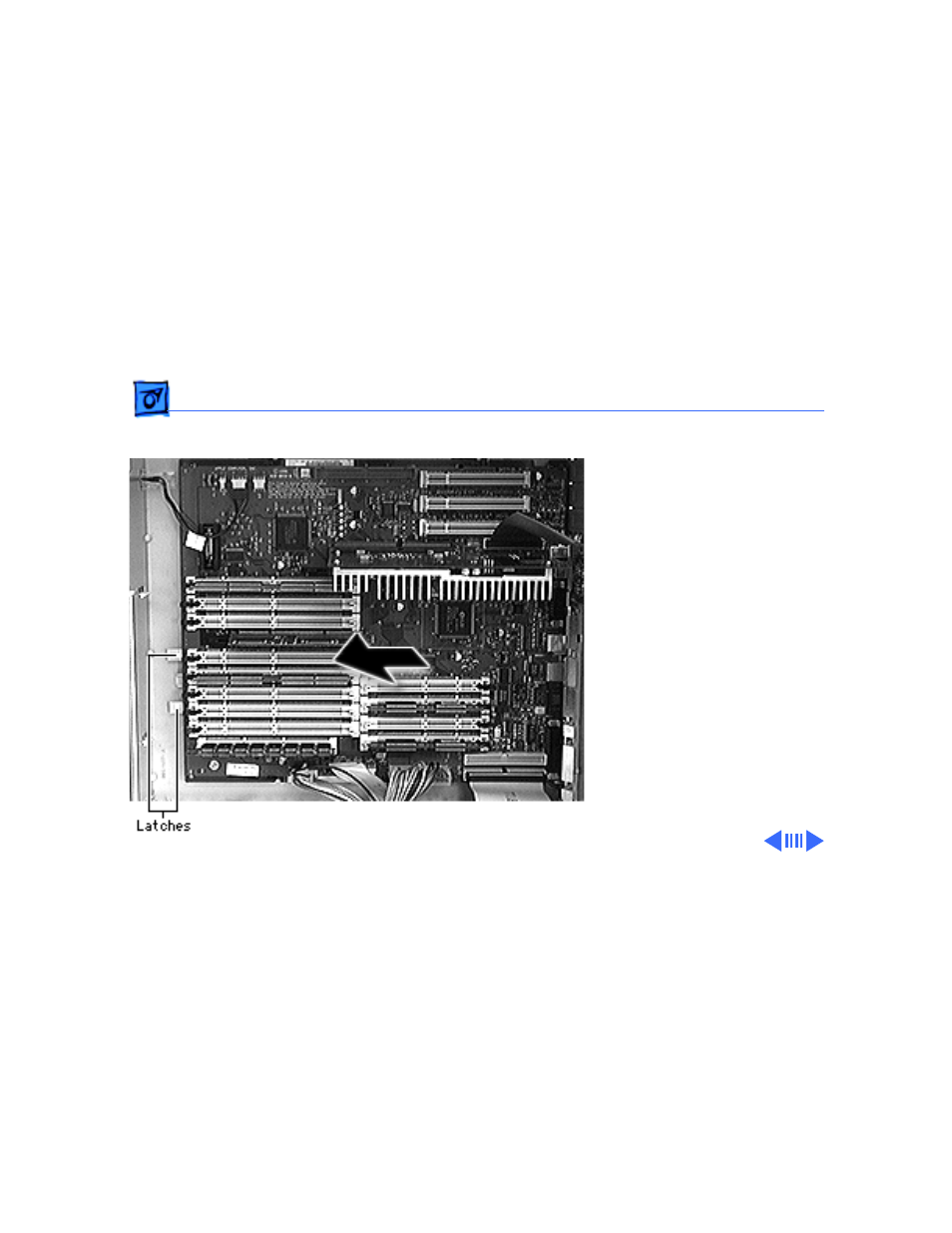

7 Release the two plastic

latches on the front of

the logic board.

Replacement Note:

Make sure the latches

re-engage the logic

board.

8 Slide the logic board

forward far enough for

the ports to clear the

openings in the I/O

panel.

9 Lift the board out of the

computer.
