Logic Board - 86

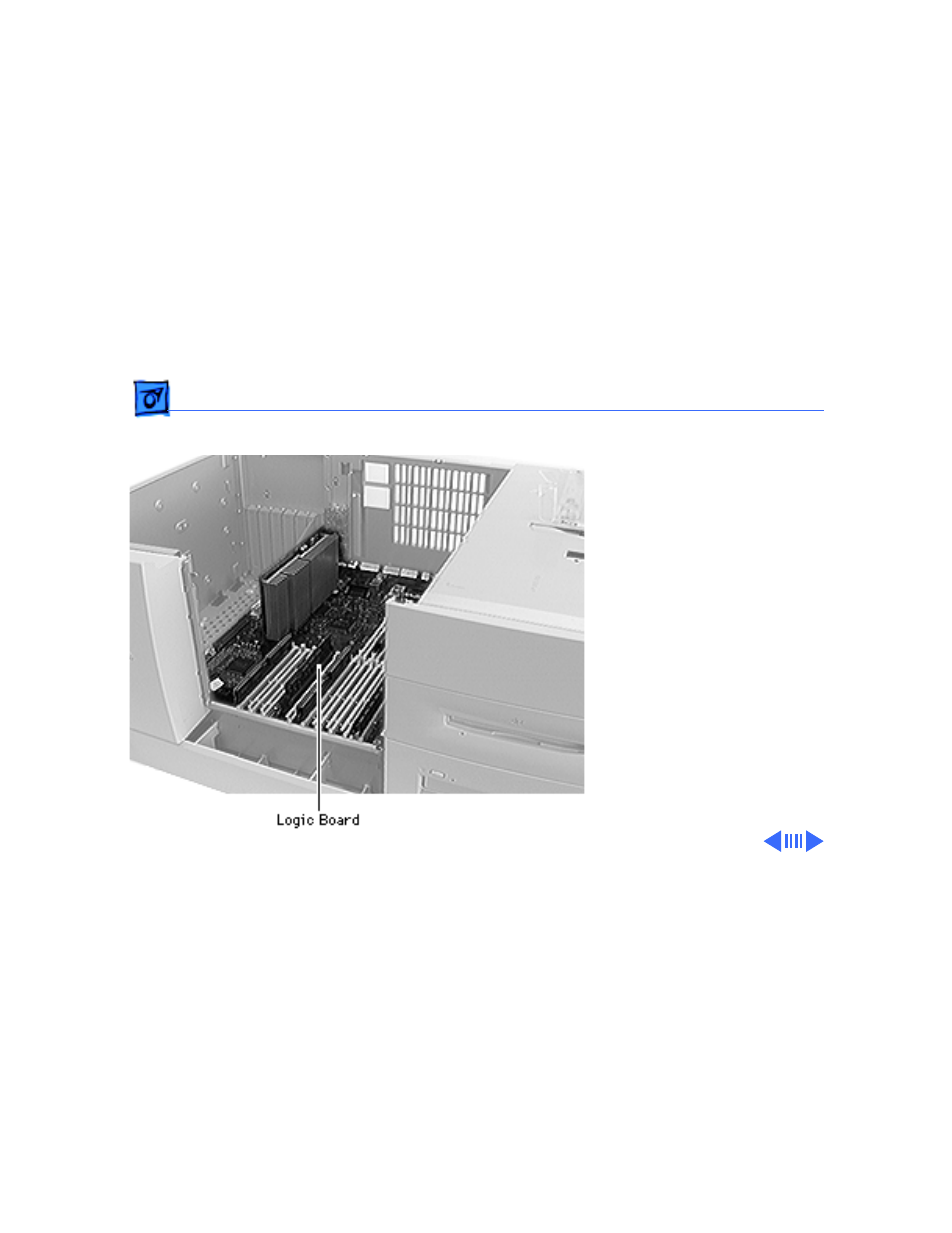

Logic Board

Before you begin, remove

the following:

• Side access panel

• PCI cards (if present)

• Speaker housing

Note:

In the WS 9650, you

must disconnect the Ultra

Wide SCSI cable from the

lower hard drives and

release the cable from the

Velcro tie wrap at this point.
