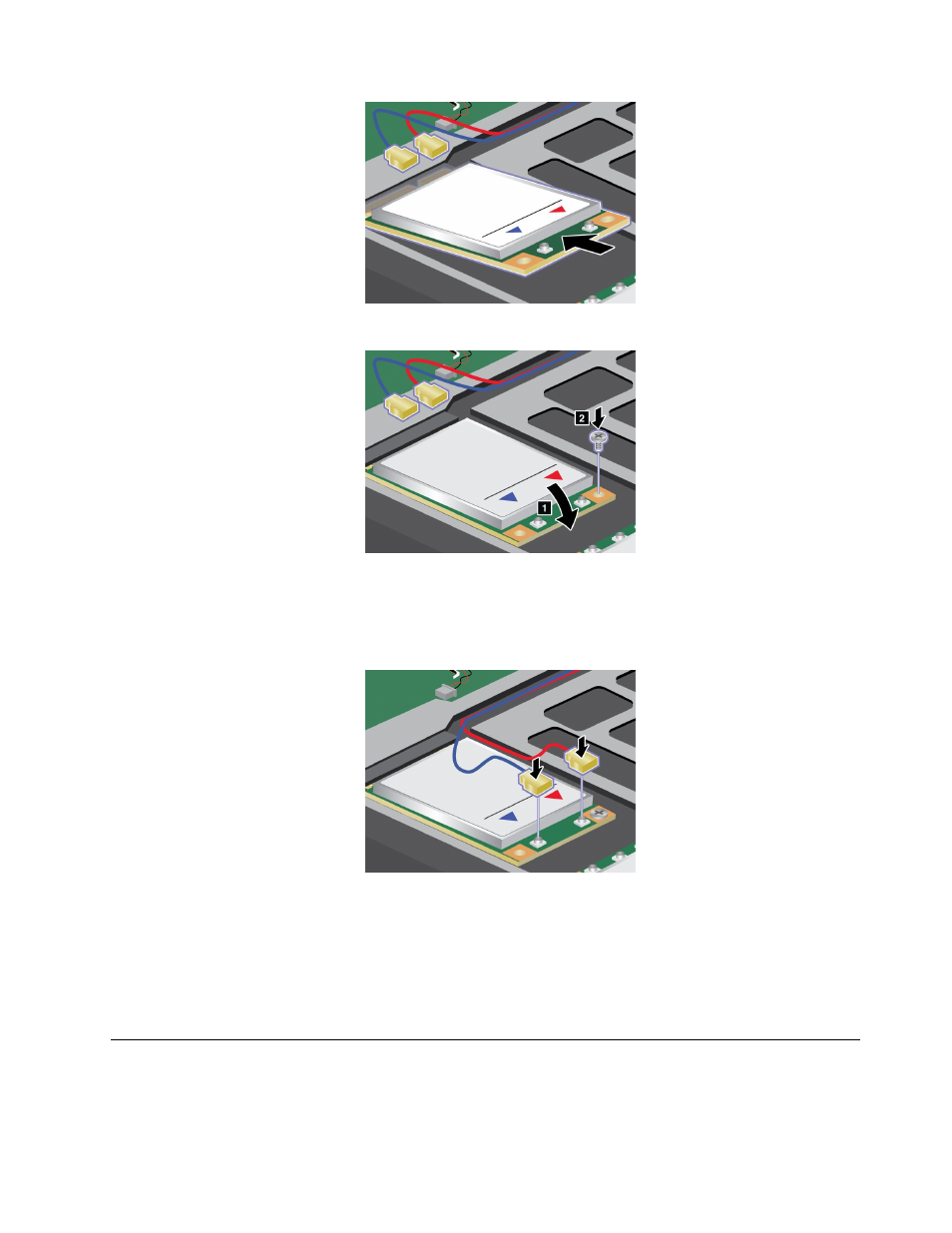

8. Pivot the card until you can snap it into place. Secure the card with the screw.

Note: You can also replace the PCI Express Mini Card for Wireless WAN with an mSATA solid state
drive. Refer to “Installing and replacing the mSATA solid state drive” on page 87 for more information.

9. Connect the cables to the new PCI Express Mini Card. Make sure that the cables are not pinched

by the card.

Note: Depending on the model, the marking for the connectors on your card may look different from the
one shown in the illustration below. If the connectors on your card are marked as “MAIN” or “M” and
“AUX” or “A,” be sure to attach the red cable to the “MAIN” or “M” connector, and the blue cable to
the “AUX” or “A” connector.

10. Reinstall the keyboard. For more details, refer to “Replacing the keyboard” on page 78.

11. Turn the computer over again. Connect the ac power adapter and cables to the computer.

Installing and replacing the mSATA solid state drive
