1 Pull point
To close the bezel, do the following:
1. Rotate the left side of the bezel toward the server to the closed position.
2. Lock the left-side cover, using the key that comes with the server.

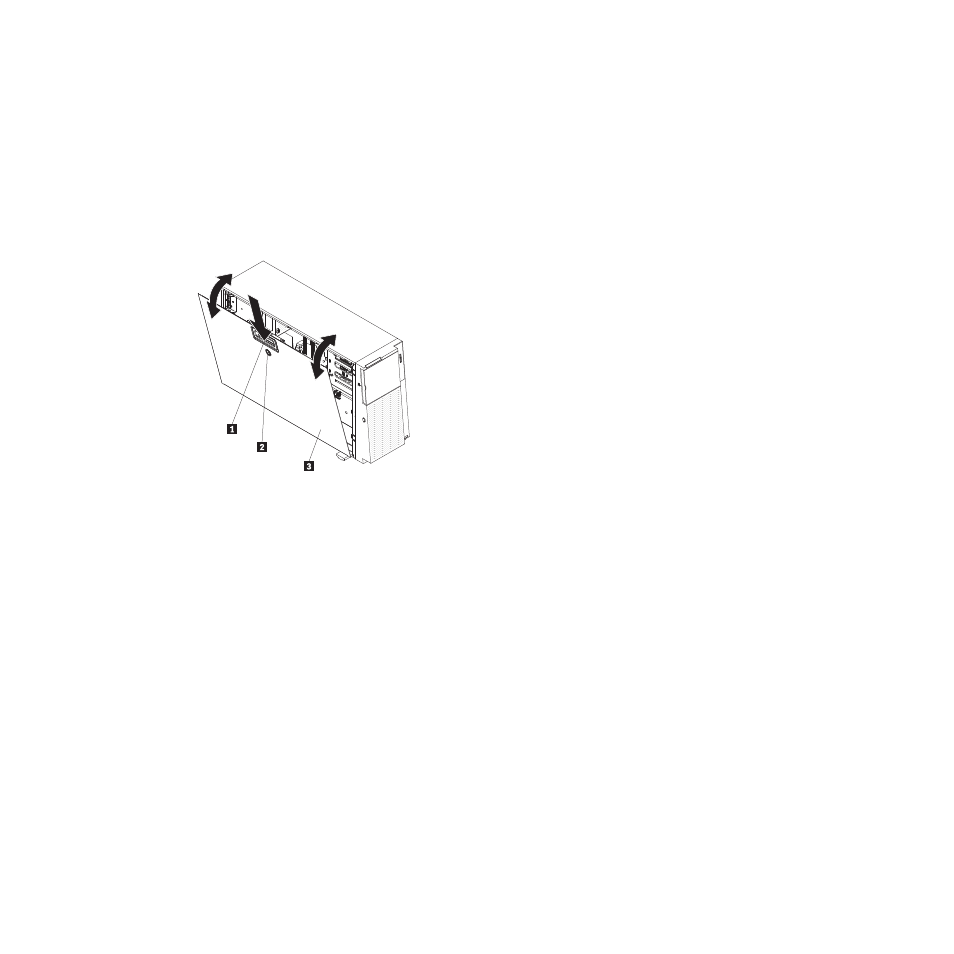

Installing the side cover
1 Cover release latch
2 Lock
3 Left-side cover
To install the left-side cover, do the following:
1. Set the bottom edge of the left-side cover on the bottom ledge of the server.
2. Rotate the top edge of the cover toward the server and press inward on the
cover until it clicks into place.
3. Lock the cover, using the key that comes with the server.
Connecting the cables
Notes:
1. Be sure to turn off the server before you connect any cables to or disconnect
any cables from the server or hot-plug adapter.
2. For additional cabling instructions, see the documentation that comes with the
optional devices. It might be easier for you to route any cables before you install
certain optional devices.
3. Cable identifiers are printed on the cables that come with the server and
optional devices. Use these identifiers to connect the cables to the correct
connectors. For example, the hard disk drive cables are labeled “HDD option.”
The following illustration shows the locations of the input and output connectors on
the rear of the server.
Chapter 5. Installing optional devices and replacing customer replaceable units 99
