4. Locate the RMM3 connector on the system board. See “Locating parts on the system board” on
page 15.
5. Remove the corresponding PCI card slot bracket by removing the screw that secures the bracket.
Save the PCI card slot bracket in the event that you later remove the RMM3 and need the bracket to
cover the place.
Note: Carefully place the removed screw aside. You will need the screw when installing the RMM3.

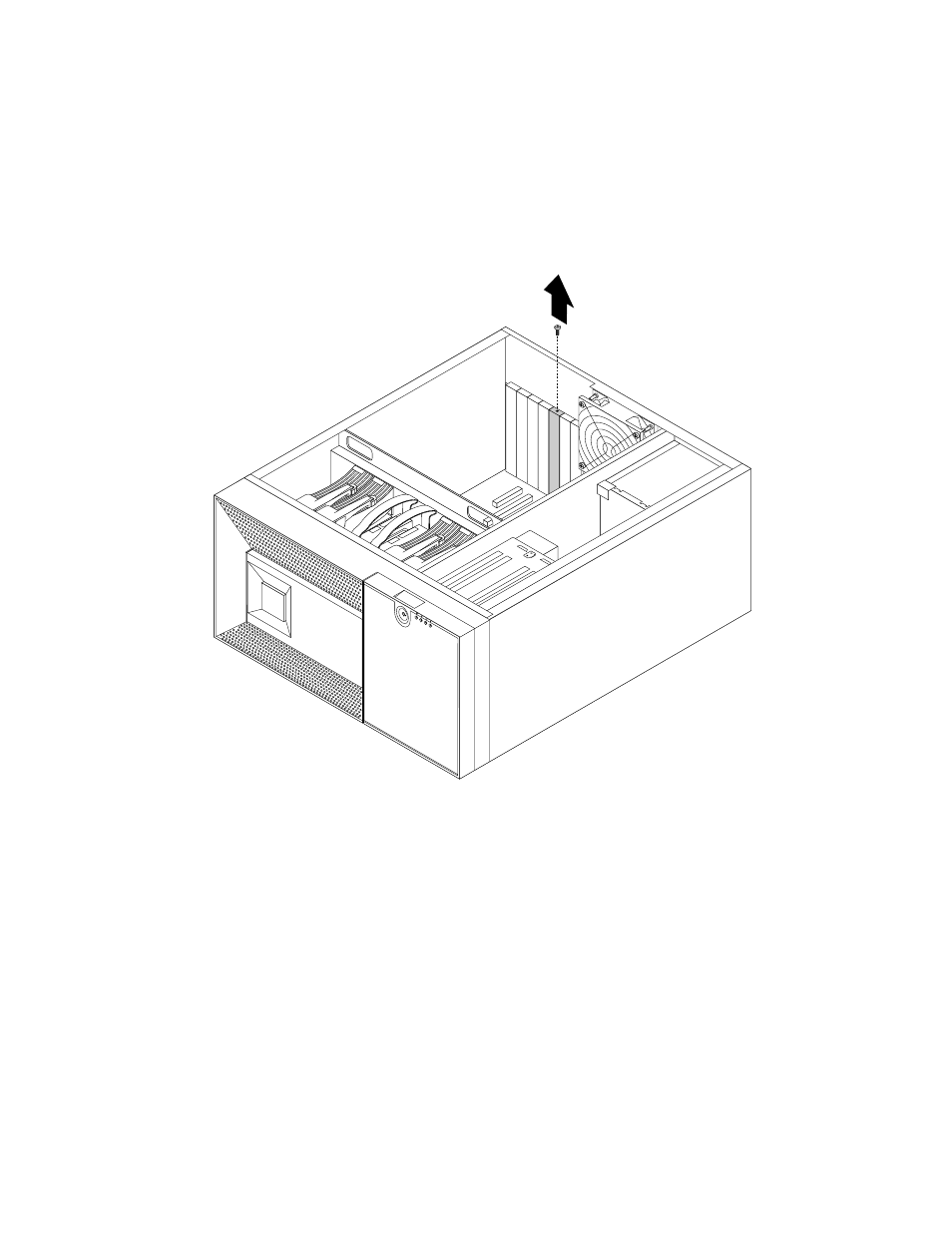

Figure 51. Removing the PCI card slot bracket for the RMM3 connector
6. Touch the static-protective package that contains the RMM3 to any unpainted surface on the outside of
the server. Then, remove the RMM3 from the package.
7. Make a note of the Media Access Controller (MAC) address of the RMM3. This information is on a label
attached to the RMM3 and might be used later for several software configurations. Keeping a record at
this moment might eliminate the needs to reopen the server cover later.
