Figure 3 “Front view of the server (with the front door open)” on page 11 shows the controls, LEDs,
connectors, and other parts on the front panel after you open the front door.

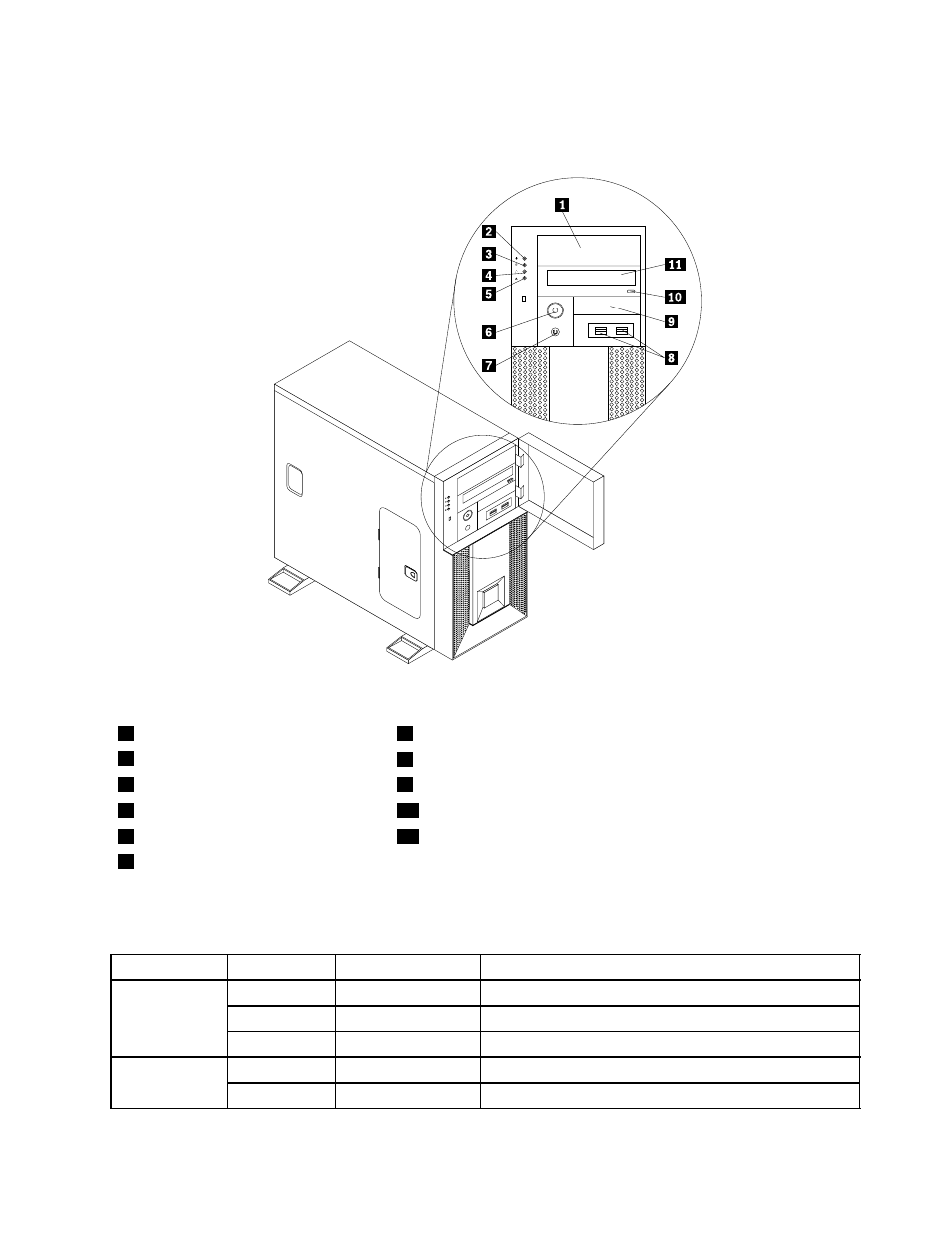

Figure 3. Front view of the server (with the front door open)
1 5.25-inch drive bay 7 Reset button
2 Power LED 8 USB connectors (2)
3 Hard disk drive status LED 9 3.5-inch drive bay
4 Ethernet status LED 10 Optical drive eject/close button
5 System status LED 11 Optical drive
6 Power button
The following table describes the various meanings of the status LEDs on the front panel of your server.
Table 4. Meanings of the status LEDs on the front panel
LED State Color Description
On Green The server is on.
Blinking Green The server is in sleep mode.
Power LED
Off Off The server is off.
Off Off The hard disk drive is not active. Hard disk drive
status LED
Blinking Red The hard disk drive is active and data is being transferred.
Chapter 4 . Locating parts, controls, LEDs, and connectors 11
