8 Memory slots for microprocessor 2 (some
slots might with installed memory modules)
16 System board
Note: * denotes that this illustration only shows the server models with four hot-swap hard disk drives. There are
also server models that support up to five non-hot-swap hard disk drives.
Locating parts on the system board
Figure 7 “Locating major parts on the system board” on page 15 shows the locations of the major parts
on the system board.
31
33
34
32

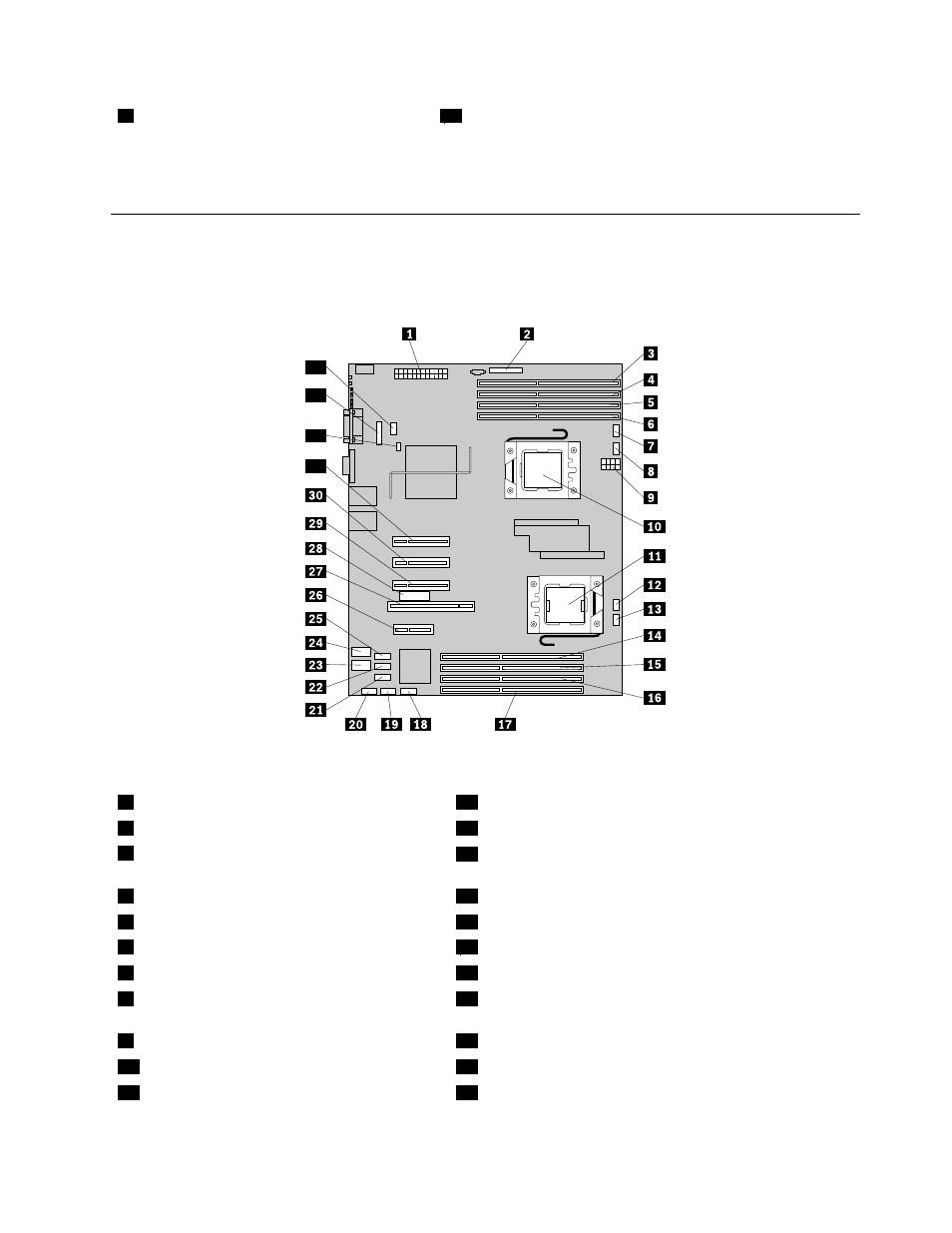

Figure 7. Locating major parts on the system board
1 Main power connector 18 SATA connector 0
2 Front panel connector 19 SATA connector 1
3 Memory slot - microprocessor 1 DIMM channel
B1 (CPU1 DIMM CHB1)
20 SATA connector 2
4 Memory slot (CPU1 DIMM CHB2) 21 SATA connector 3
5 Memory slot (CPU1 DIMM CHA1) 22 SATA connector 4
6 Memory slot (CPU1 DIMM CHA2) 23 Internal dual-port USB 2.0 connector (ports 0-1)
7 System fan 2 connector 24 Internal dual-port USB 2.0 connector (ports 2-3)
8 Microprocessor 1 heat sink and fan assembly
connector
25 SATA connector 5
9 Microprocessor power connector 26 PCI Express x4 slot
10 Microprocessor 1 27 PCI card slot
11 Microprocessor 2 socket (the second
microprocessor is optional)
28 Remote management module 3 (RMM3) connector
Chapter 4 . Locating parts, controls, LEDs, and connectors 15
