Table 6. Ethernet LEDs (continued)
LED State Color Description
On Amber 1000 Mb linked and active
On Green 100 Mb linked and active
RJ-45 Linkage and Activity (right)
Off Off 10 Mb mode or no LAN connection.
Locating server components
Figure 6 “Server component locations (side view without the server cover)” on page 14 shows the locations
of the major components in your server. To remove the server cover and gain access to the inside of the
server, see “Removing the server cover” on page 23.

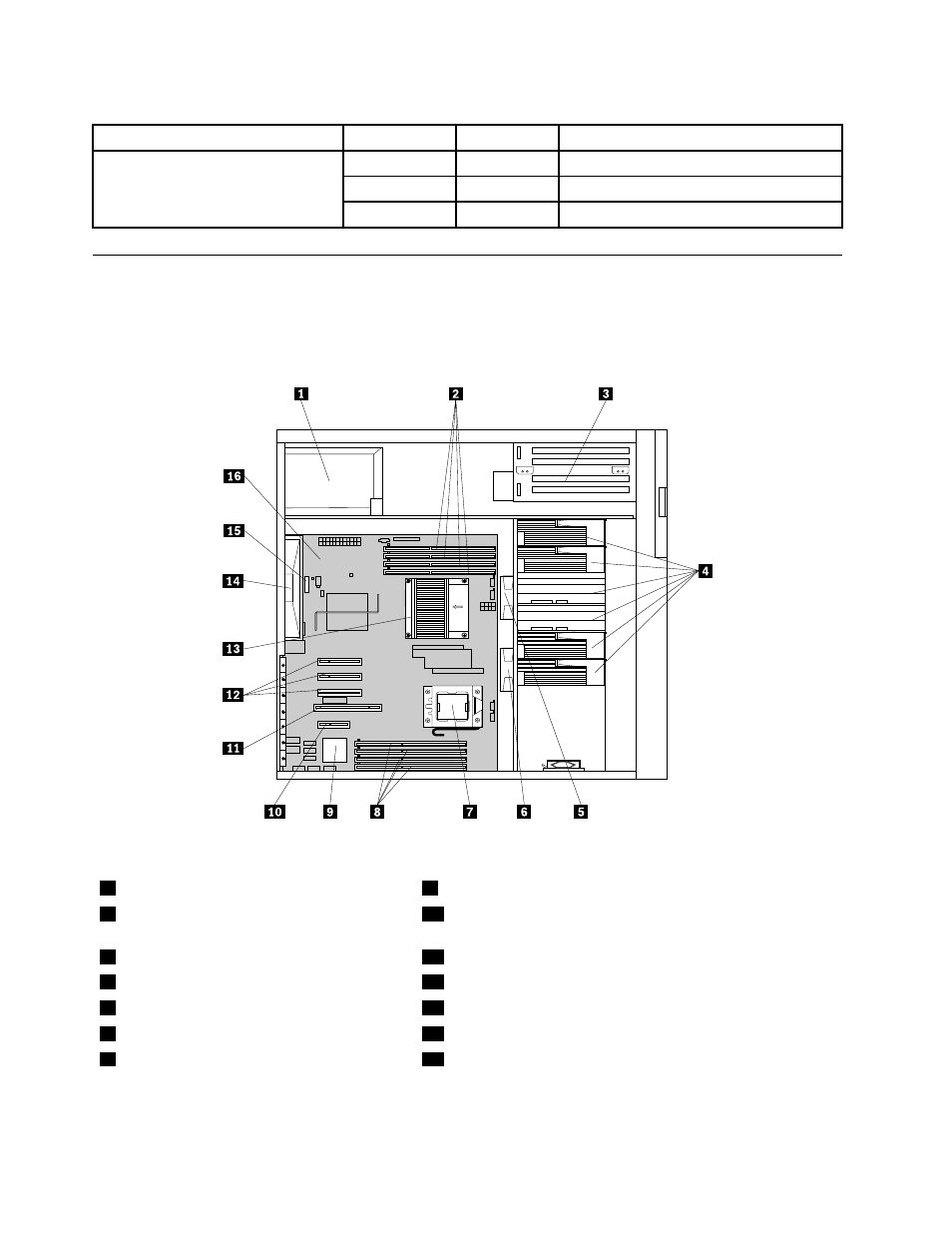

Figure 6. Server component locations (side view without the server cover)
1 Power supply assembly 9 Onboard ICH10R SATA RAID controller
2 Memory slots for microprocessor 1 (some
slots might with installed memory modules)
10 PCI Express x4 slot
3 Optical drive 11 PCI card slot
4 Hard disk drive zone* 12 PCI Express x8 slots (3)
5 System fan 2 13 Heat sink and fan assembly (microprocessor 1 underneath)
6 System fan 1 14 Rear fan (system fan 3)
7 Microprocessor 2 socket (the second
microprocessor is optional)
15 System board battery
14 ThinkServer TD230 Installation and User Guide
