Lenovo THINKSERVER TD230 User Manual
Page 58
3. Locate the non-hot-swap hard disk drive you want to remove and disconnect the power cable and the
signal cable from the hard disk drive. Then, pull the handle of the hard disk drive bracket to slide the
bracket with the hard disk drive out of the drive bay.

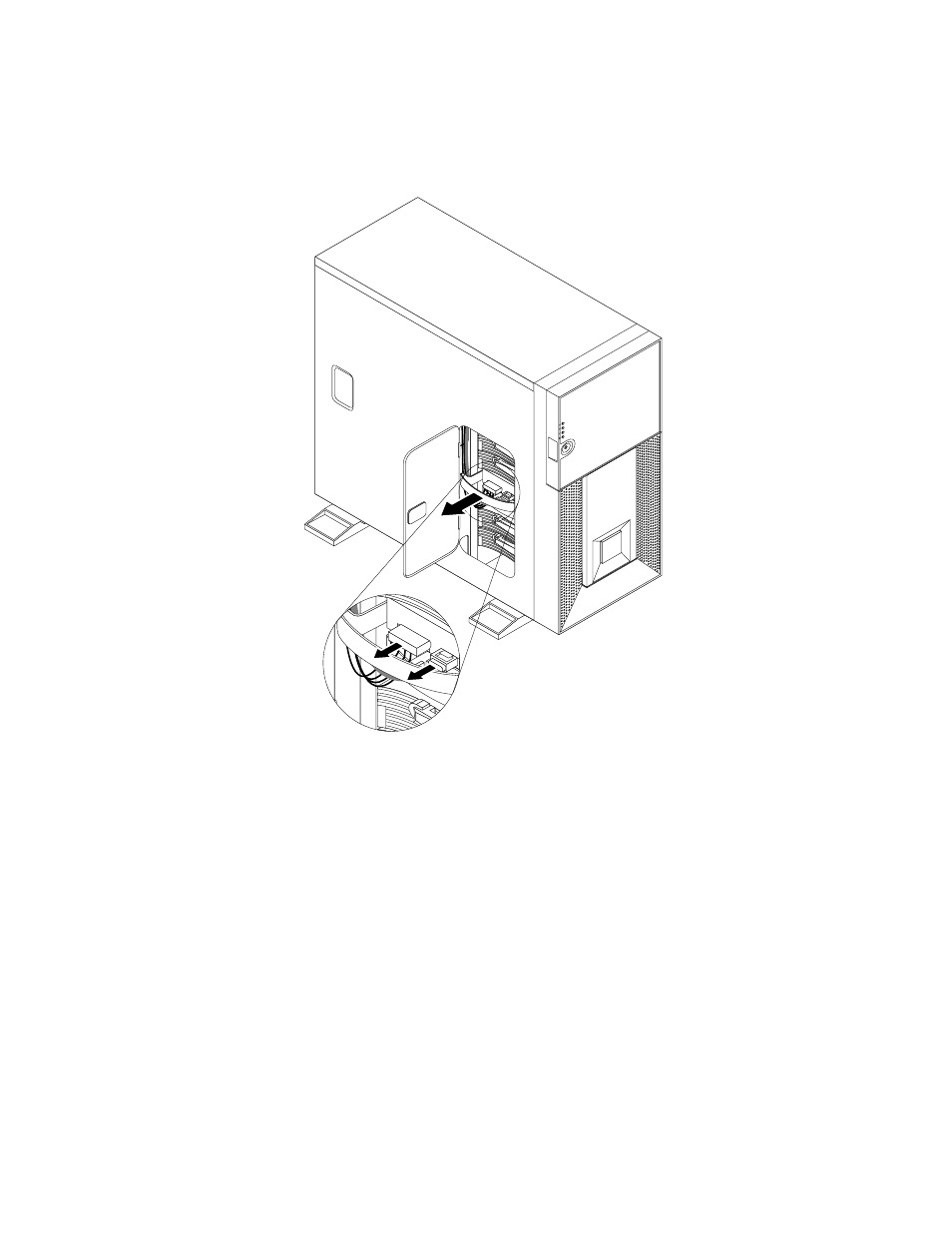

Figure 36. Disconnecting cables and sliding the non-hot-swap hard disk drive out
4. Depending on the non-hot-swap hard disk drive is secured in the bracket by screws or plastic retainers,
do one of the following:
48
ThinkServer TD230 Installation and User Guide
