Lenovo THINKSERVER TD230 User Manual
Page 55
6. Align the screw holes in both sides of the hard disk drive with the corresponding holes in the hard disk
drive bracket. Then, install the four screws to secure the hard disk drive in the bracket.
Note: Carefully install the hard disk drive without touching the circuit board on the bottom of the
hard disk drive.

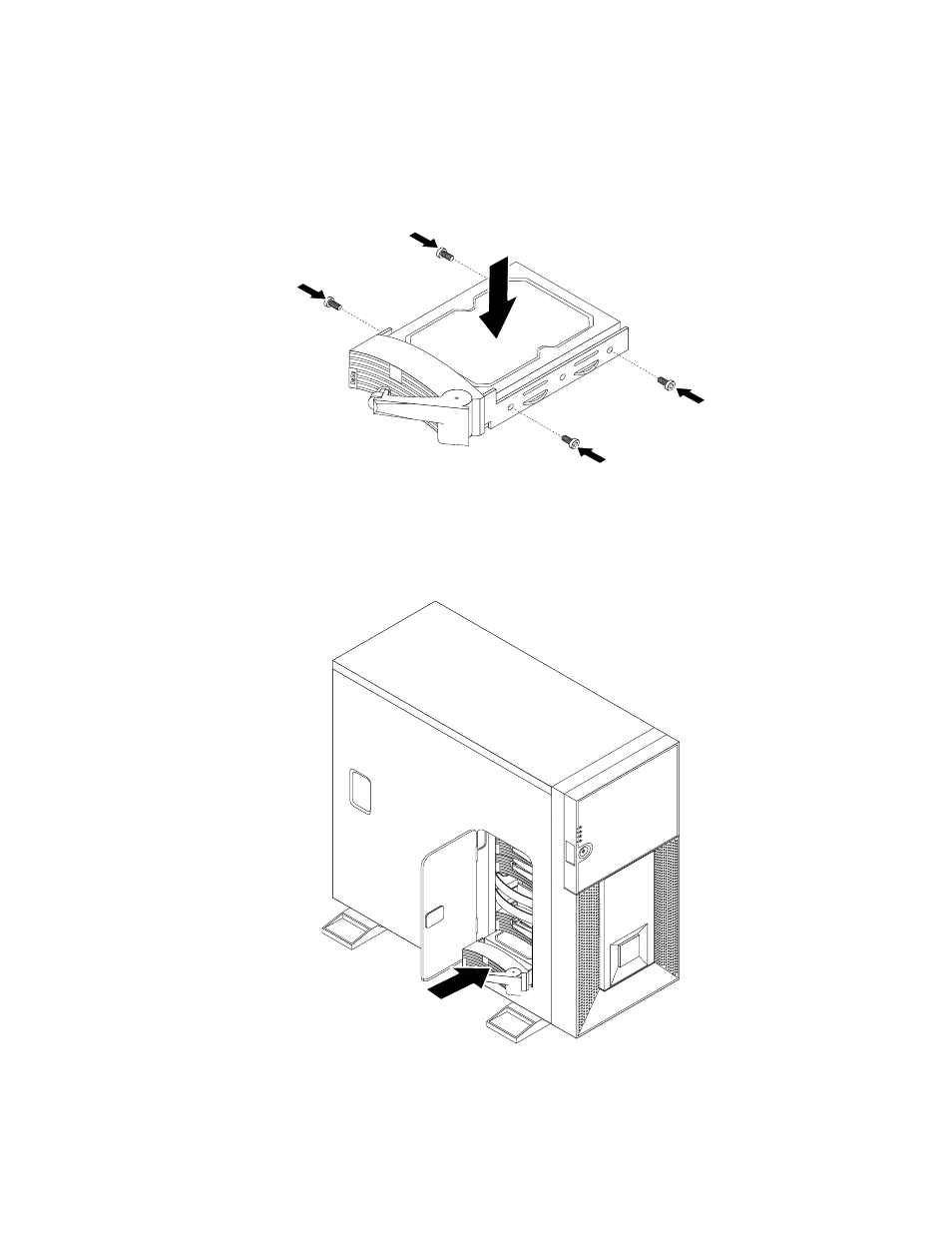

Figure 32. Installing the hard disk drive into the bracket
7. Keep the handle of the hot-swap hard disk drive bracket fully open and then slide the bracket with the
hard disk drive into the drive bay until it cannot be pushed in anymore.
Figure 33. Sliding the hot-swap hard disk drive bracket with the hard disk drive into the bay
Chapter 5
.
Installing, removing, or replacing hardware
45
