Function Fittings and Flow Controls
● Compact units
● Easy tube insertion for rapid assembly of
pneumatic circuits
● Positive tube retention
● Simplifies pneumatic systems
● Eliminates need for electrical reed switches
● Exhausts on signal side (port 2)

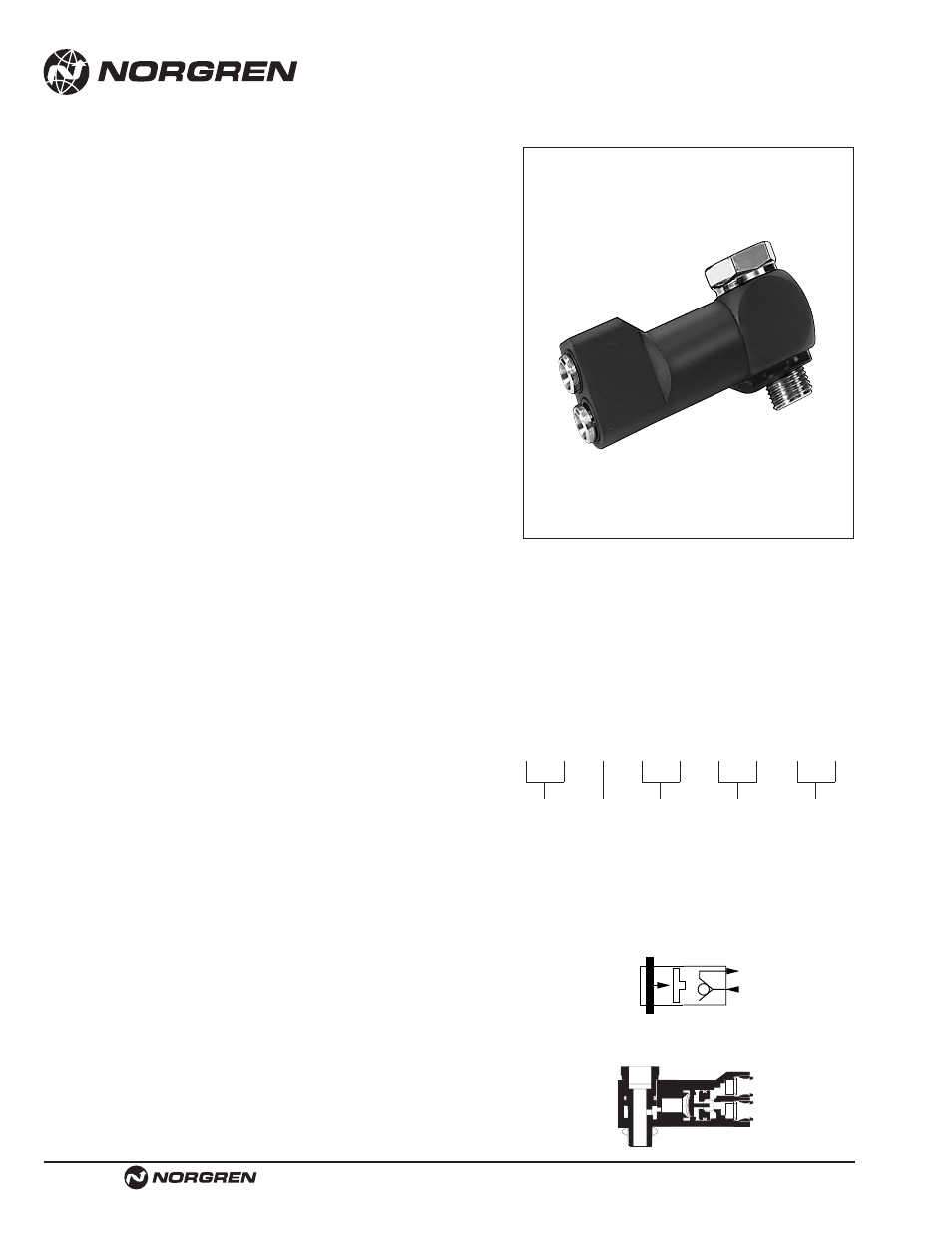

Pressure Sensor Fitting
Inch and Metric
Technical Data
Fluid: Compressed air, nitrogen, inert and non-combustible gases
compatible with materials of construction.
Note:
For other types of fluids or compressed gases, please
consult factory.
Operating Pressure:
Cylinder pressure (Pc) 145 psi (10 bar) max
Sensor supply pressure 43 to 145 psi (3 - 10 bar)
Sensor switch pressure 14.5 psi (1.0 bar) typical
Operating Temperature:
0° to 175°F (–20° to +80°C)
Body Ports
5⁄32'' O.D. tube Push-in
4mm O.D. tube Push-in
1⁄8, 1⁄4 NPTF Banjo Bolt
1⁄8, 1⁄4 ISO G Banjo Bolt
Tube Sizes
5⁄32'' O/D
4mm O/D
Tubing Types:
Nylon 11 or 12, polyurethane (95 durometer or above)
and LPDE (Low Density Polyethylene)
Materials
Body, swivel fitting and collet: Nickel plated brass
O-ring: Silicone free Nitrile
Sealing washer (parallel male threads): Thermoplastic
Tubing: Nylon 11 or 12, Polyurethane (95 durometer or above) and LDPE
(Low Density Polyethylene).
Note: Lower durometer polyurethane may be used, however, an internal
tube support is required to prevent internal collapse of the tube wall.
Ordering Information
To order, quote appropriate product number from
the tables on the following pages.
Product numbering system is designed to make
identification and selection simple:
124GD
124GD
1 2 _ _ _ _ _ _ _
Series
Number Type Shape Tube Size/
Thread Size Thread Size/
Tube Size
2
1
