Norgren Flow Controls - Manual (Page 10)

FIT-3-10 Littleton, CO USA Phone 303-794-2611 www.norgren.com
Function Fittings and Flow Controls
● In-line general purpose flow controls
● Captive adjustment needle will not blow out
when unscrewed
● Lockable, calibrated adjustment knob
● Suitable for wall mounting
● High operating pressure

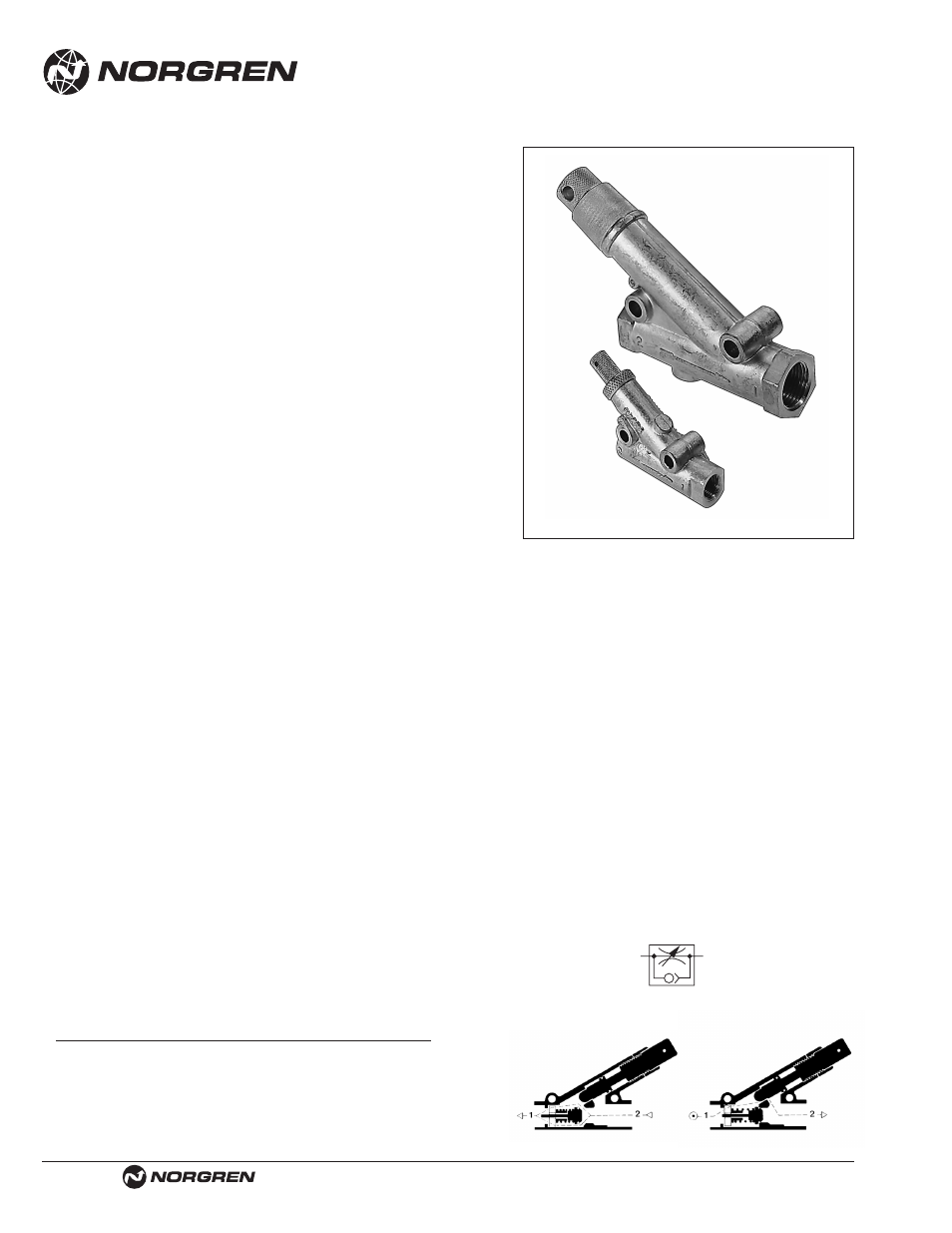

C/800, M/800 Series Heavy Duty
In-Line Flow Control
Technical Data
Fluid: Compressed air, nitrogen, inert and non-combustible gases
compatible with materials of construction.
Note:
For other types of fluids or compressed gases, please
consult factory.Operation:
Uni-directional
Mounting:
Line mounted, concentrically
Port Size:
NPT ISO G Weight lbs. (Kg)
1⁄8 NPT C/836 G1⁄8 S/836 .22 (.10)
1⁄4 NPT C/837 G1⁄4 M/837 .33 (.15)
1⁄2 NPT C/839 G1⁄2 M/839 1.32 (.60)
3⁄4 NPT C/840 G3⁄4 M/840 2.65 (1.20)
1 NPT C/855 G1 M/855 7.72 (3.50)
Operating Pressure:
5 - 230 psig (0.3 - 16 bar)
Operating Temperature:
0°* to 175°F (-20° to +80°C) (Alternative models to 300°F [150°C])
* Consult our Technical Service for use below 35°F (2°C.)
Materials
Brass body, adjusting knob, and locking ring (C/836, C/837, C/839),
aluminum body, adjusting knob and locking ring (C/840, C/855), nitrile
rubber seals.
Repair Kits
Product Number Kit Number
NPT ISO G NPT ISO G
C/836 S/836 QC/520/00 QS/520/00
C/837 M/837 QC/521/00 QS/521/00
C/839 M/839 QC/822/00 QS/522/00
C/840 M/840 QC/523/00 QS/523/00
C/855 M/855 QC/524/00 QS/524/00
Ordering Information
To order, quote model number from table on page
FIT-3-11, e.g. C/837 for the 1/4" NPT model
Alternative models
C/600 range of heavy duty panel mounting Flow
Controls (air & hydraulic), see page FIT-3-12.
T1000 range of Inline Flow Controls, see page
FIT-3-6.
TM, TC/800 High Temperature version (150° C
max.)
1 2
