Valve Manifolds VS26 Series
Plug-in Mini ISO Valves
2x2/2, 2x3/2, 5/2 and 5/3 valves, ISO 15407-2, Size 26 mm
VS2672900-KG10 (port 1) VS2672900-KG40 (port 2+4) VS2672901-KG00 (ports 3+5) VS2672929-KG00 (NPTF 1/4) VS2672903-KG00 (port 1)
VS2672900-KG20 (port 2) VS2672928-KG00 (G1/4)
VS2672900-KG30 (port 4)

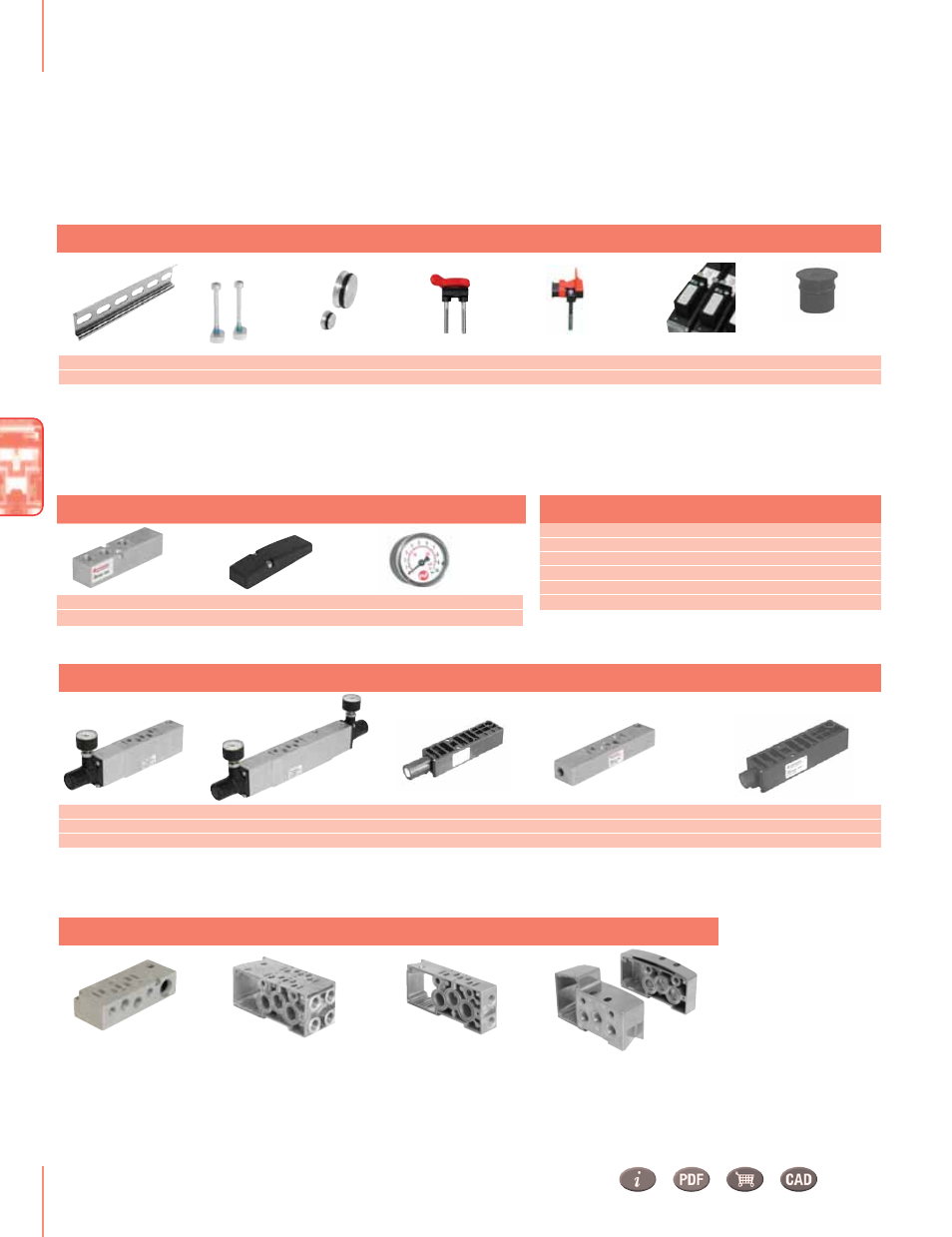

Single pressure Double pressure Flow control plate Sandwich plate with Single valve shut-off plate
regulator regulator plate additional port 1
V10009-C00 35 x 7.5 mm V70531-KA0 V70522-K00 (Ports 1, 3, 5) VS2672906-KG00 VS2672960-KG00 VS2672905-KG00 (10 pcs) VS2672914-KG00
V10592-C01 35 x 15 mm V70523-K00 (Ports 12/14)
DIN EN 50 022 rail 3 ft DIN-rail mounting kit Blanking disc to Manual override Extended manual Spare valve Blanking plug for base
(1 meter) modular sub-base set-up kit override kit identification labels 1) connector hole 2)
Sub-bases and end plates
Sandwich plates
Intermediate Blanking
supply/exhaust module plate
VS2672902-RG00 (NPTF1/4) VS2672904-KG00 V70534-500
VS2672902-BG00 (G1/4)
Base accessories
Accessories
1) When purchasing assembled valve manifolds from Norgren, valve identification lables are included.
2) When V44/V45 valves are fitted on VS18 bases.
Single station Double station Single station End plate kit
sub-base modular sub-base modular sub-base
See page VAL-34 See page VAL-48 for additional information
Replacement gauge Pilot valves
Part no.
Description* Voltage Manual override
VS2672930-KG00 Pilot valve 24V DC 1.2W Push only
VS2672932-KG00 Pilot valve 24V DC 1.2W Push & turn
VS2672934-KG00 Pilot valve 24V DC 1.2W Extended, push only
VS2672931-KG00 Pilot valve 115V AC 1.5VA Push only
VS2672933-KG00 Pilot valve 115V AC 1.5VA Push & turn
VS2672935-KG00 Pilot valve 115V AC 1.5VA Extended, push only
* Kit includes screws, gasket and V-ring
