VAL- 41

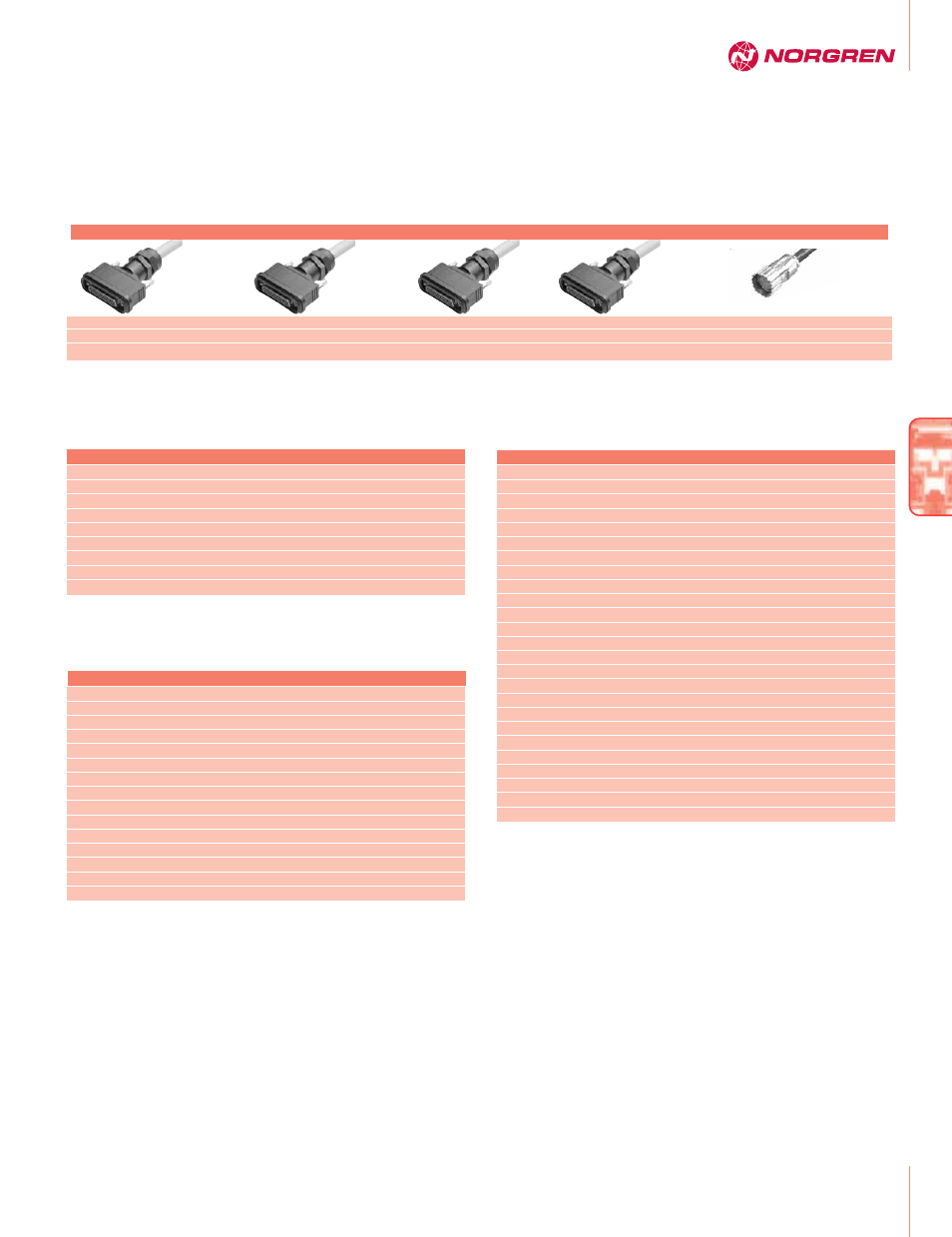

Multipole accessories
VS2672910-KG00 3' (1m) VS2672915-KG00 3' (1m) V11569-E01 3' (1m) V11570-E01 3' (1m) VS2672943-KG00 3' (1m)
VS2672911-KG00 10' (3m) VS2672916-KG00 10' (3m) V11569-E03 10' (3m) V11570-E03 10' (3m) VS2672944-KG00 10' (3m)
VS2672912-KG00 16' (5m) VS2672917-KG00 16' (5m) V11569-E05 16' (5m) V11570-E05 16' (5m) VS2672945-KG00 16' (5m)
1 White Solenoid 1-a 14 1
2 Brown Solenoid 2-a 14 2
3 Green Solenoid 3-a 14 3
4 Yellow Solenoid 4-a 14 4
5 Grey Solenoid 1-b 12 1
6 Pink Solenoid 2-b 12 2
7 Blue Solenoid 3-b 12 3
8 Red Solenoid 4-b 12 4
9 Black Common - -
D-Sub connector 9-pin A)
1 White Solenoid 1-a 14 1
2 Brown Solenoid 2-a 14 2
3 Green Solenoid 3-a 14 3
4 Yellow Solenoid 4-a 14 4
5 Grey Solenoid 5-a 14 5
6 Pink Solenoid 6-a 14 6
7 Blue Solenoid 7-a 14 7
8 Red Solenoid 1-b 12 1
9 Black Solenoid 2-b 12 2
10 Violet Solenoid 3-b 12 3
11 Grey/Pink Solenoid 4-b 12 4
12 Red/Blue Solenoid 5-b 12 5
13 White/Green Solenoid 6-b 12 6
14 Brown/Green Solenoid 7-b 12 7
15 White/Yellow Common - -
D-Sub connector 15-pin A)
A) According to DIN 47100
1 White Solenoid 1-a 14 1
2 Brown Solenoid 2-a 14 2
3 Green Solenoid 3-a 14 3
4 Yellow Solenoid 4-a 14 4
5 Grey Solenoid 5-a 14 5
6 Pink Solenoid 6-a 14 6
7 Blue Solenoid 7-a 14 7
8 Red Solenoid 8-a 14 8
9 Black Solenoid 9-a 14 9
10 Violet Solenoid 10-a 14 10
11 Grey/Pink Solenoid 11-a 14 11
12 Red/Blue Solenoid 12-a 14 12
13 White/Green Common - -
14 Brown/Green Solenoid 1-b 12 1
15 White/Yellow Solenoid 2-b 12 2
16 Yellow/Brown Solenoid 3-b 12 3
17 White/Grey Solenoid 4-b 12 4
18 Grey/Brown Solenoid 5-b 12 5
19 White/Pink Solenoid 6-b 12 6
20 Pink/Brown Solenoid 7-b 12 7
21 White/Blue Solenoid 8-b 12 8
22 Brown/Blue Solenoid 9-b 12 9
23 White/Red Solenoid 10-b 12 10
24 Brown/Red Solenoid 11-b 12 11
25 White/Black Solenoid 12-b 12 12
D-Sub connector 25-pin A)
D-Sub connector 9-pin IP65 1) D-Sub connector 15-pin IP65 1) D-Sub connector 25-pin IP65 1) D-Sub connector 44-pin IP65 1) M23 connector 19-pin IP65 1)
Pin no. Wire colour Socket Pilot Station Pin no. Wire color Socket Pilot Station
Pin no. Wire color Socket Pilot Station
1) Required for ATEX
Valve Manifolds VS26 Series
Plug-in Mini ISO Valves
2x2/2, 2x3/2, 5/2 and 5/3 valves, ISO 15407-2,
Size 26 mm
