Valves
www.norgren.com/usa
VAL- 48

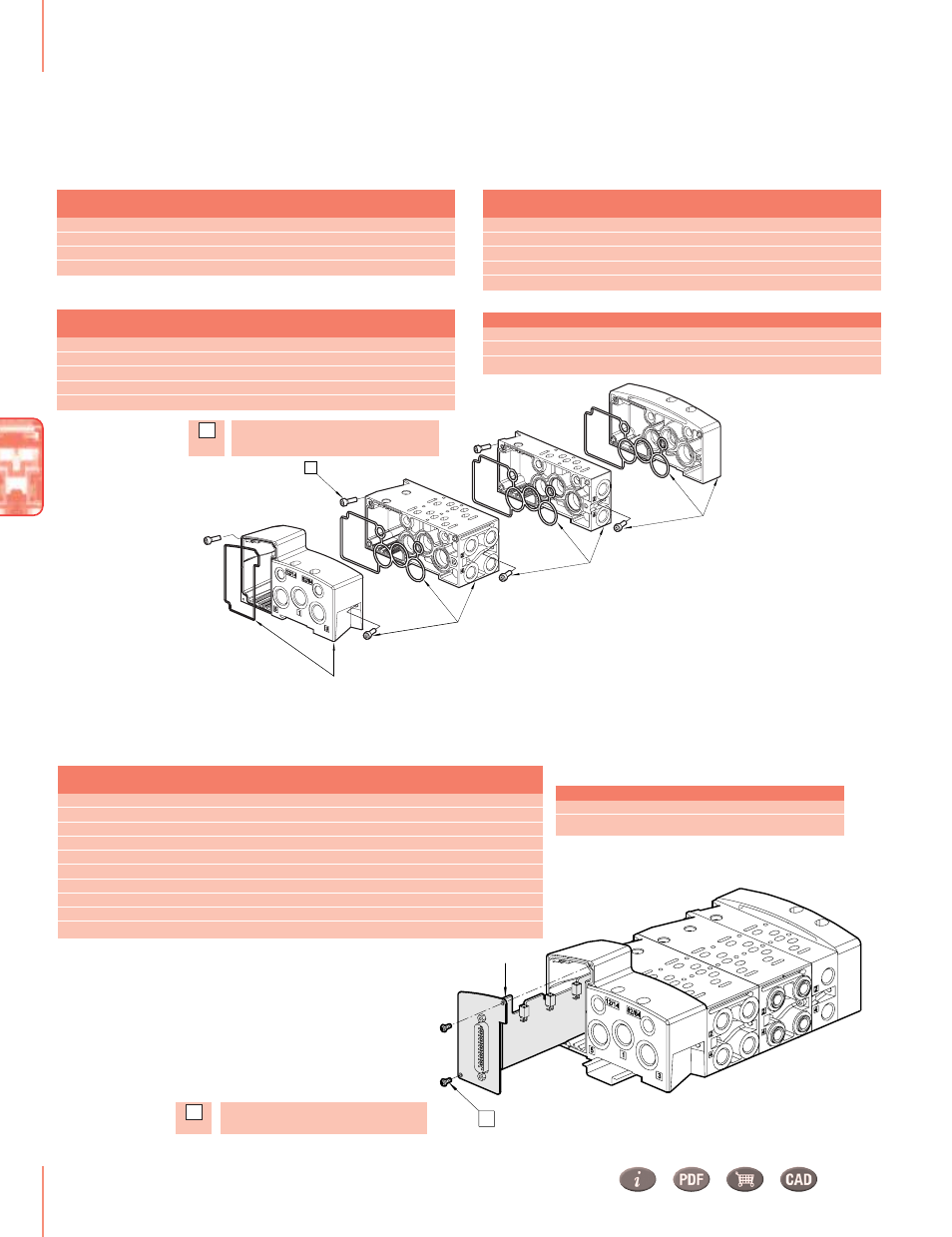

Valve Manifolds VS26 Series
A – Output boards with D-Sub connectors Expansion output boards for D-Sub
connectors
VS2672755-KG00 Multipole PCB 1 station 24V DC
VS2672713-KG00 Multipole PCB 2 stations 24V DC
Multipole components
1) By using below expansion output boards.
A
13
Model Voltage Description
13 Torque = 0.59 to 0.66 (0.8 - 0.9 Nm)
Screw driver speed = max. 1100 r.p.m For detailed assembly instructions, please
see maintenance & instruction booklet!
VS2672717-KG00 D-Sub 9-pin Multipole PCB 2 stations 4 24V DC
VS2672718-KG00 D-Sub 15-pin Multipole PCB 2 stations 6 24V DC
VS2672705-KG00 D-Sub 15-pin Multipole PCB 4 stations 7 24V DC
VS2672719-KG00 D-Sub 25-pin Multipole PCB 2 stations 6 24V DC
VS2672700-KG00 D-Sub 25-pin Multipole PCB 4 stations 8 24V DC
VS2672701-KG00 D-Sub 25-pin Multipole PCB 6 stations 10 24V DC
VS2672702-KG00 D-Sub 25-pin Multipole PCB 8 stations 12 24V DC
VS2672703-KG00 D-Sub 44-pin Multipole PCB 8 stations 12 24V DC
VS2672706-KG00 D-Sub 44-pin Multipole PCB 10 stations 14 24V DC
VS2672704-KG00 D-Sub 44-pin Multipole PCB 12 stations 16 24V DC
Model Connector
type Expandable to max. x
no. of stations 1)
Description Voltage
A
11
B
C
A
Sub-bases and end plates (without PCB's)
includes screws and gaskets
1, 3 & 5 12/14 & 82/84
VS2672500-CGC0 End plate kit for Multipole G3/8 G1/8
VS2672500-SGC0 End plate kit for Multipole NPTF3/8 NPTF 1/8
VS2672501-CGC0 End plate kit for Fieldbus G3/8 G1/8
VS2672501-SGC0 End plate kit for Fieldbus NPTF3/8 NPTF 1/8
77.31106 2
94.00815 1
94.00816 1
Hexagon socket screw M4x12
Gasket
Connector-kit gasket on end plate
Spare parts
For detailed assembly instructions, please see maintenance & instruction booklet!
11
A – End plate kit
2 & 4
VS2672503-BGF0 G1/4
VS2672503-RGF0 NPTF 1/4
VS2672503-YGF0 PIF 10 mm
VS2672503-8GF0 PIF 8 mm
VS2672503-2GF0 PIF 3/8
C – Single station modular sub-base
2 & 4
VS2672502-BGF0 G1/4
VS2672502-RGF0 NPTF 1/4
VS2672502-YGF0 PIF 10 mm
VS2672502-8GF0 PIF 8 mm
VS2672502-2GF0 PIF 3/8
B – Double station modular sub-base
Model
Model
Description
Model Description Quantity per slice
Ports
Ports
Model Ports Ports
Torque = 0.74 to 0.81 ft lbs (1.0 - 1.1 Nm)
Screw driver speed = max. 1100 r.p.m.
