Norgren VS18 Series Valve Islands - Manual (Page 4)

3-037

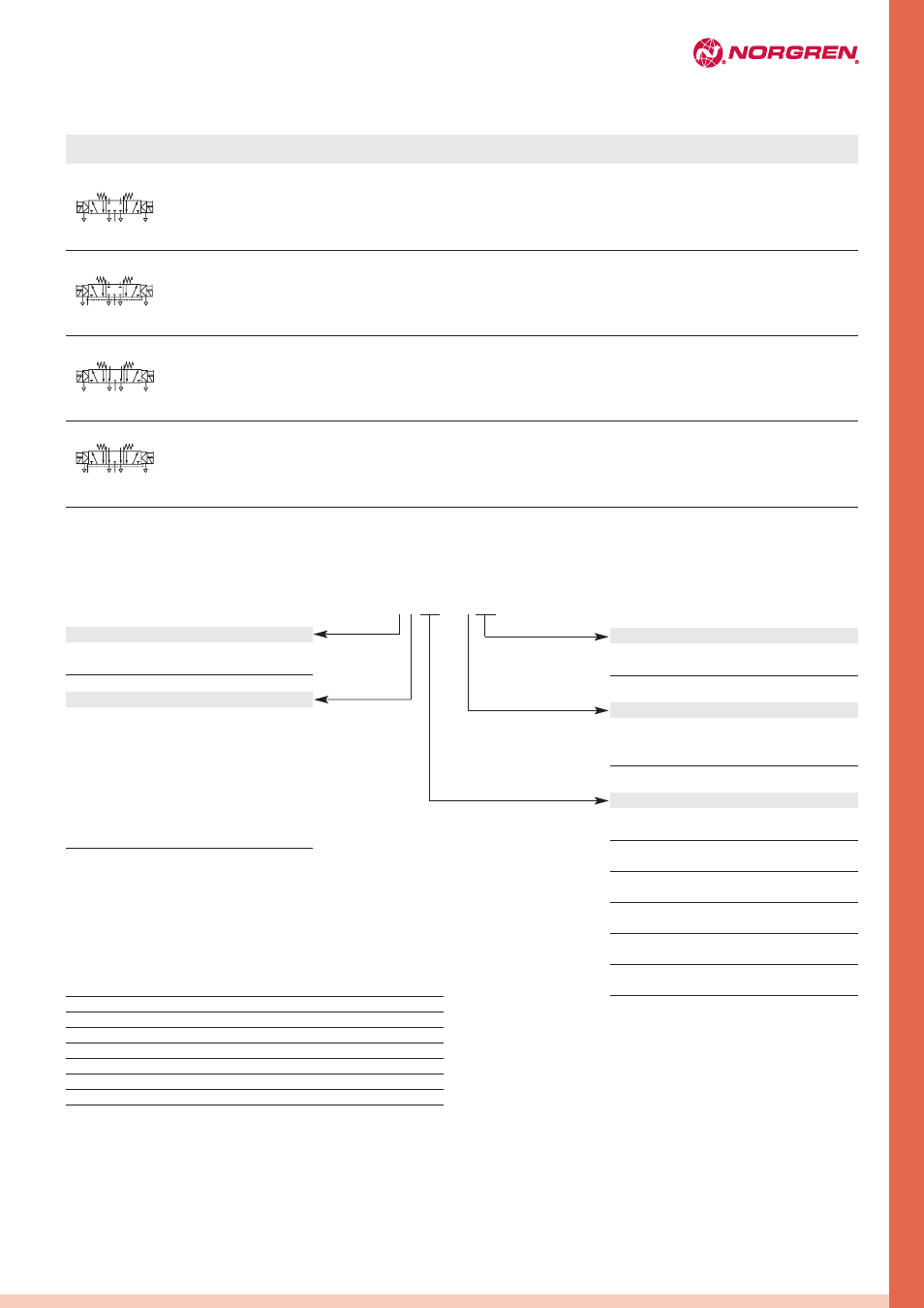

5/3 Double solenoid actuated softseal valves (flow 650 l/min)
4 2 12 14
3 5
1
84 82
4 2 12 14
14
3 5
1 84 82
4 2
12 14
3 5
1
84 82
4 2 12 14
14
3 5
1
84 82
APB Sol/Sol Internal – 2 ... 10 Push only 24 V d.c. 1,2 W VS18S611DF313A
APB Sol/Sol Internal – 2 ... 10 Push only 115 V a.c. 1,5 VA VS18S611DF318A
APB Sol/Sol Internal – 2 ... 10 Push and turn 24 V d.c. 1,2 W VS18S611DF213A
APB Sol/Sol Internal – 2 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S611DF218A
APB Sol/Sol Internal – 2 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S611DF513A
APB Sol/Sol Internal – 2 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S611DF518A
APB Sol/Sol External 2 ... 10 -0,9 ... 10 Push only 24 V d.c. 1,2 W VS18S622DF313A
APB Sol/Sol External 2 ... 10 -0,9 ... 10 Push only 115 V a.c. 1,5 VA VS18S622DF318A
APB Sol/Sol External 2 ... 10 -0,9 ... 10 Push and turn 24 V c.c. 1,2 W VS18S622DF213A
APB Sol/Sol External 2 ... 10 -0,9 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S622DF218A
APB Sol/Sol External 2 ... 10 -0,9 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S622DF513A
APB Sol/Sol External 2 ... 10 -0,9 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S622DF518A
COE Sol/Sol Internal – 2,5 ... 10 Push only 24 V d.c. 1,2 W VS18S711DF313A
COE Sol/Sol Internal – 2,5 ... 10 Push only 115 V a.c. 1,5 VA VS18S711DF318A
COE Sol/Sol Internal – 2,5 ... 10 Push and turn 24 V d.c. 1,2 W VS18S711DF213A
COE Sol/Sol Internal – 2,5 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S711DF218A
COE Sol/Sol Internal – 2,5 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S711DF513A
COE Sol/Sol Internal – 2,5 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S711DF518A
COE Sol/Sol External 2,5 ... 10 -0,9 ... 10 Push only 24 V d.c. 1,2 W VS18S722DF313A
COE Sol/Sol External 2,5 ... 10 -0,9 ... 10 Push only 115 V a.c. 1,5 VA VS18S722DF318A
COE Sol/Sol External 2,5 ... 10 -0,9 ... 10 Push and turn 24 V d.c. 1,2 W VS18S722DF213A
COE Sol/Sol External 2,5 ... 10 -0,9 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S722DF218A
COE Sol/Sol External 2,5 ... 10 -0,9 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S722DF513A
COE Sol/Sol External 2,5 ... 10 -0,9 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S722DF518A
MODELS Symbol Function
5/3 Actuation Pilot
supply Pilot pressure
(bar) Operating
pressure (bar) Voltage Manual override
APB = All Ports Blocked COE = Centre Open Exhaust
OPTIONS SELECTOR
ELECTRICAL DETAILS FOR SOLENOID OPERATORS
VS18 ★★★★ DF ★★★ A
Manual override 3) Substitute
Push and turn 2
Push only 3
Extended, push only 5
Voltage Substitute
24 V d.c 1,2 W 13
115 V a.c 1,5 VA 18
Actuation/Pilot supply Substitute
Solenoid/Spring
Internal pilot supply 17
Solenoid/Spring
External pilot supply 27
Solenoid/Solenoid
Internal pilot supply 11
Solenoid/Solenoid
External pilot supply 22
Solenoid priority side 14/Solenoid (5/2 only)
Internal pilot supply 2) 91
Solenoid priority side 14/Solenoid (5/2 only)
External pilot supply 2) 92
Valve function Substitute
2x3/2 Normally closed 1) A
2x3/2 Normally open 1) B
2x3/2 Normally open/Normally closed 1) C
2x2/2 Normally closed 1) E
2x2/2 Normally open 1) F
2x2/2 Normally open/Normally closed 1) G
5/2 5
5/3 All ports blocked 6
5/3 Centre open exhaust 7
1) Available with softseal spool only (VS18S)
2) Available with glandless spool and sleeve only (VS18G) Voltage tolerances (24 V d.c) +/- 10%
Voltage tolerances (115 V a.c) -10%/+15%
Rating 100 % Continuous duty
Inlet orifice 0,8 mm
Indication LED green
Surge surpression Transil diode
Materials PPS (body), Viton & NBR (seal)
3) Option “without manual override” available on request
Spool technology Substitute
Glandless spool and sleeve G
Softseal spool S
