NC Sol/Spring Internal – 2 ,5 ... 10 Push only 24 V d.c. 1,2 W VS18SA11DF313A
NC Sol/Spring Internal – 2 ,5 ... 10 Push only 115 V a.c. 1,5 VA VS18SA11DF318A
NC Sol/Spring Internal – 2 ,5 ... 10 Push and turn 24 V d.c. 1,2 W VS18SA11DF213A
NC Sol/Spring Internal – 2 ,5 ... 10 Push and turn 115 V a.c. 1,5 VA VS18SA11DF218A
NC Sol/Spring Internal – 2 ,5 ... 10 Extended, push only 24 V d.c. 1,2 W VS18SA11DF513A
NC Sol/Spring Internal – 2 ,5 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18SA11DF518A
NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push only 24 V d.c. 1,2 W VS18SA22DF313A
NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push only 115 V a.c. 1,5 VA VS18SA22DF318A
NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push and turn 24 V d.c. 1,2 W VS18SA22DF213A
NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push and turn 115 V a.c. 1,5 VA VS18SA22DF218A
NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Extended, push only 24 V d.c. 1,2 W VS18SA22DF513A
NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18SA22DF518A
NO Sol/Spring Internal – 2 ,5 ... 10 Push only 24 V d.c. 1,2 W VS18SB11DF313A
NO Sol/Spring Internal – 2 ,5 ... 10 Push only 115 V a.c. 1,5 VA VS18SB11DF318A
NO Sol/Spring Internal – 2 ,5 ... 10 Push and turn 24 V d.c. 1,2 W VS18SB11DF213A
NO Sol/Spring Internal – 2 ,5 ... 10 Push and turn 115 V a.c. 1,5 VA VS18SB11DF218A
NO Sol/Spring Internal – 2 ,5 ... 10 Extended, push only 24 V d.c. 1,2 W VS18SB11DF513A
NO Sol/Spring Internal – 2 ,5 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18SB11DF518A
NO Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push only 24 V d.c. 1,2 W VS18SB22DF313A
NO Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push only 115 V a.c. 1,5 VA VS18SB22DF318A
NO Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push and turn 24 V d.c. 1,2 W VS18SB22DF213A
NO Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push and turn 115 V a.c. 1,5 VA VS18SB22DF218A
NO Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Extended, push only 24 V d.c. 1,2 W VS18SB22DF513A
NO Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18SB22DF518A
NO/NC Sol/Spring Internal – 2 ,5 ... 10 Push only 24 V d.c. 1,2 W VS18SC11DF313A
NO/NC Sol/Spring Internal – 2 ,5 ... 10 Push only 115 V a.c. 1,5 VA VS18SC11DF318A
NO/NC Sol/Spring Internal – 2 ,5 ... 10 Push and turn 24 V d.c. 1,2 W VS18SC11DF213A
NO/NC Sol/Spring Internal – 2 ,5 ... 10 Push and turn 115 V a.c. 1,5 VA VS18SC11DF218A
NO/NC Sol/Spring Internal – 2 ,5 ... 10 Extended, push only 24 V d.c. 1,2 W VS18SC11DF513A
NO/NC Sol/Spring Internal – 2 ,5 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18SC11DF518A
NO/NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push only 24 V d.c. 1,2 W VS18SC22DF313A
NO/NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push only 115 V a.c. 1,5 VA VS18SC22DF318A
NO/NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push and turn 24 V d.c. 1,2 W VS18SC22DF213A
NO/NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Push and turn 115 V a.c. 1,5 VA VS18SC22DF218A
NO/NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Extended, push only 24 V d.c. 1,2 W VS18SC22DF513A
NO/NC Sol/Spring External 1,7+(0,35 x op. press.) 0 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18SC22DF518A
5 1 84 82 3
4 2
10 10
14 12
5 1 84 14 82 3
4 2
10 10
14 12
5 1 84 82 3
4 2
14 12 10 10
5 1 84 82 3
4 2
10 12 14 10
5 1 14 3
4 2
14 12 10 10
84 82
5 1 84 14 82 3
4 2
10 12 14 10

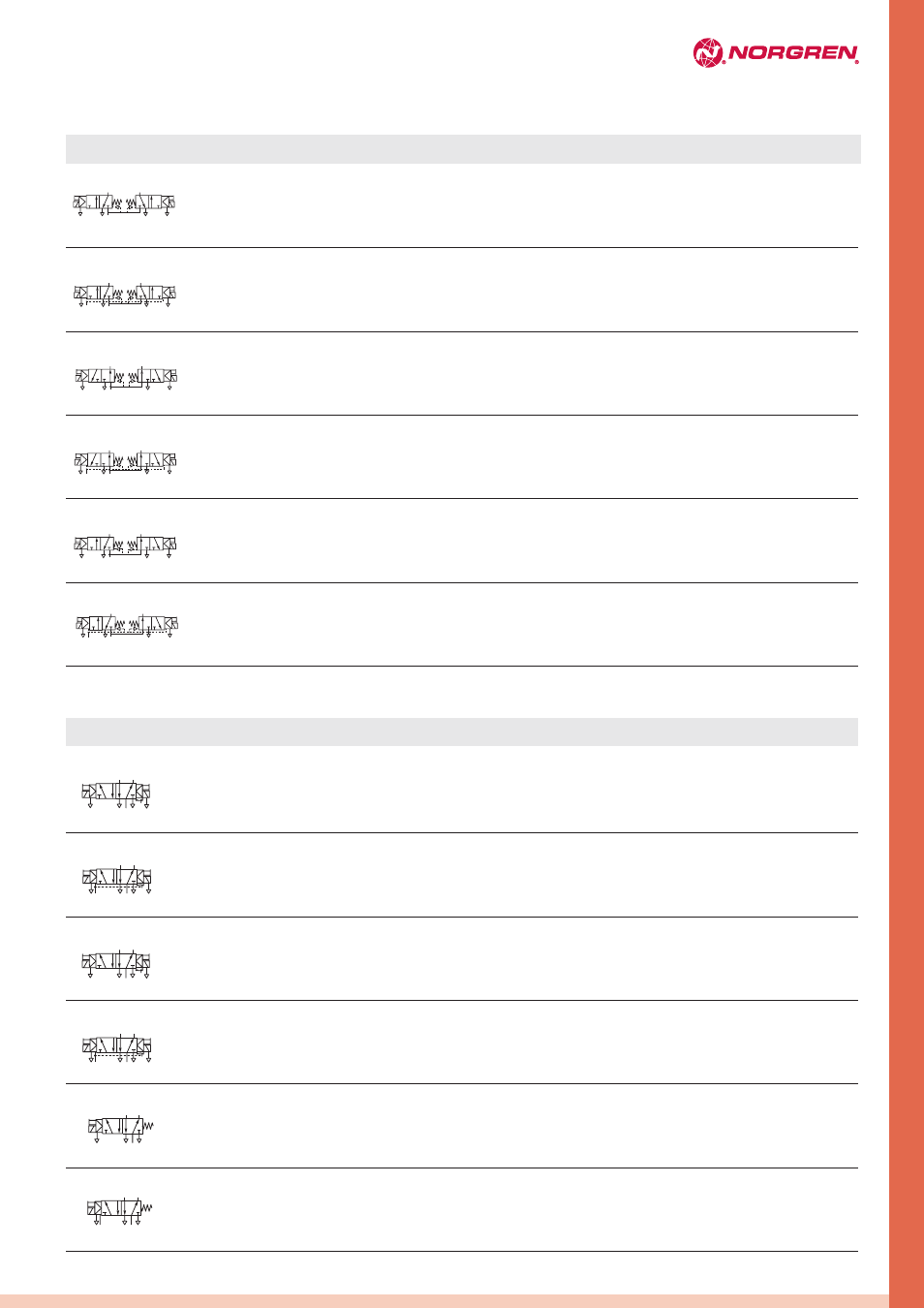

2x3/2 Double solenoid actuated softseal valves (flow 600 l/min)
MODELS Symbol Function
2x3/2 Actuation Pilot
supply Pilot pressure
(bar) Operating
pressure (bar) Voltage Manual override
NO = Normally open, NC = Normally closed
3-035
5/2 Single and double solenoid actuated glandless valves (flow 550 l/min)
Sol/Sol Internal – 2 ... 10 Push only 24 V d.c. 1,2 W VS18G511DF313A
Sol/Sol Internal – 2 ... 10 Push only 115 V a.c. 1,5 VA VS18G511DF318A
Sol/Sol Internal – 2 ... 10 Push and turn 24 V d.c. 1,2 W VS18G511DF213A
Sol/Sol Internal – 2 ... 10 Push and turn 115 V a.c. 1,5 VA VS18G511DF218A
Sol/Sol Internal – 2 ... 10 Extended, push only 24 V d.c. 1,2 W VS18G511DF513A
Sol/Sol Internal – 2 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18G511DF518A
Sol/Sol External 2 ... 10 -0,9 ... 16 Push only 24 V d.c. 1,2 W VS18G522DF313A
Sol/Sol External 2 ... 10 -0,9 ... 16 Push only 115 V a.c. 1,5 VA VS18G522DF318A
Sol/Sol External 2 ... 10 -0,9 ... 16 Push and turn 24 V d.c. 1,2 W VS18G522DF213A
Sol/Sol External 2 ... 10 -0,9 ... 16 Push and turn 115 V a.c. 1,5 VA VS18G522DF218A
Sol/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 24 V d.c. 1,2 W VS18G522DF513A
Sol/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 115 V a.c. 1,5 VA VS18G522DF518A
Sol (Priority)/Sol Internal – 2 ... 10 Push only 24 V d.c. 1,2 W VS18G591DF313A
Sol (Priority)/Sol Internal – 2 ... 10 Push only 115 V a.c. 1,5 VA VS18G591DF318A
Sol (Priority)/Sol Internal – 2 ... 10 Push and turn 24 V d.c. 1,2 W VS18G591DF213A
Sol (Priority)/Sol Internal – 2 ... 10 Push and turn 115 V a.c. 1,5 VA VS18G591DF218A
Sol (Priority)/Sol Internal – 2 ... 10 Extended, push only 24 V d.c. 1,2 W VS18G591DF513A
Sol (Priority)/Sol Internal – 2 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18G591DF518A
Sol (Priority)/Sol External 2 ... 10 -0,9 ... 16 Push only 24 V d.c. 1,2 W VS18G592DF313A
Sol (Priority)/Sol External 2 ... 10 -0,9 ... 16 Push only 115 V a.c. 1,5 VA VS18G592DF318A
Sol (Priority)/Sol External 2 ... 10 -0,9 ... 16 Push and turn 24 V d.c. 1,2 W VS18G592DF213A
Sol (Priority)/Sol External 2 ... 10 -0,9 ... 16 Push and turn 115 V a.c. 1,5 VA VS18G592DF218A
Sol (Priority)/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 24 V d.c. 1,2 W VS18G592DF513A
Sol (Priority)/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 115 V a.c. 1,5 VA VS18G592DF518A
Sol/Spring Internal – 1,6 ... 10 Push only 24 V d.c. 1,2 W VS18G517DF313A
Sol/Spring Internal – 1,6 ... 10 Push only 115 V a.c. 1,5 VA VS18G517DF318A
Sol/Spring Internal – 1,6 ... 10 Push and turn 24 V d.c. 1,2 W VS18G517DF213A
Sol/Spring Internal – 1,6 ... 10 Push and turn 115 V a.c. 1,5 VA VS18G517DF218A
Sol/Spring Internal – 1,6 ... 10 Extended, push only 24 V d.c. 1,2 W VS18G517DF513A
Sol/Spring Internal – 1,6 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18G517DF518A
Sol/Spring External 1,6 ... 10 -0,9 ... 16 Push only 24 V d.c. 1,2 W VS18G527DF313A
Sol/Spring External 1,6 ... 10 -0,9 ... 16 Push only 115 V a.c. 1,5 VA VS18G527DF318A
Sol/Spring External 1,6 ... 10 -0,9 ... 16 Push and turn 24 V d.c. 1,2 W VS18G527DF213A
Sol/Spring External 1,6 ... 10 -0,9 ... 16 Push and turn 115 V a.c. 1,5 VA VS18G527DF218A
Sol/Spring External 1,6 ... 10 -0,9 ... 16 Extended, push only 24 V d.c. 1,2 W VS18G527DF513A
Sol/Spring External 1,6 ... 10 -0,9 ... 16 Extended, push only 115 V a.c. 1,5 VA VS18G527DF518A
4 2 14 12
3 5 1 84 82
4 2 14 12
3 5
1
84
4 2 14 12
14
3 5
1
82 84
4 2 14 12
14
3 5
1
82 84
4 2 14 12
3 5 1 84 82
MODELS Symbol Actuation Pilot supply Pilot pressure
(bar) Operating
pressure (bar) Voltage Manual override
4 2 14 12
3 5
1 14
84
