54
M 23
22,5
25
3-043

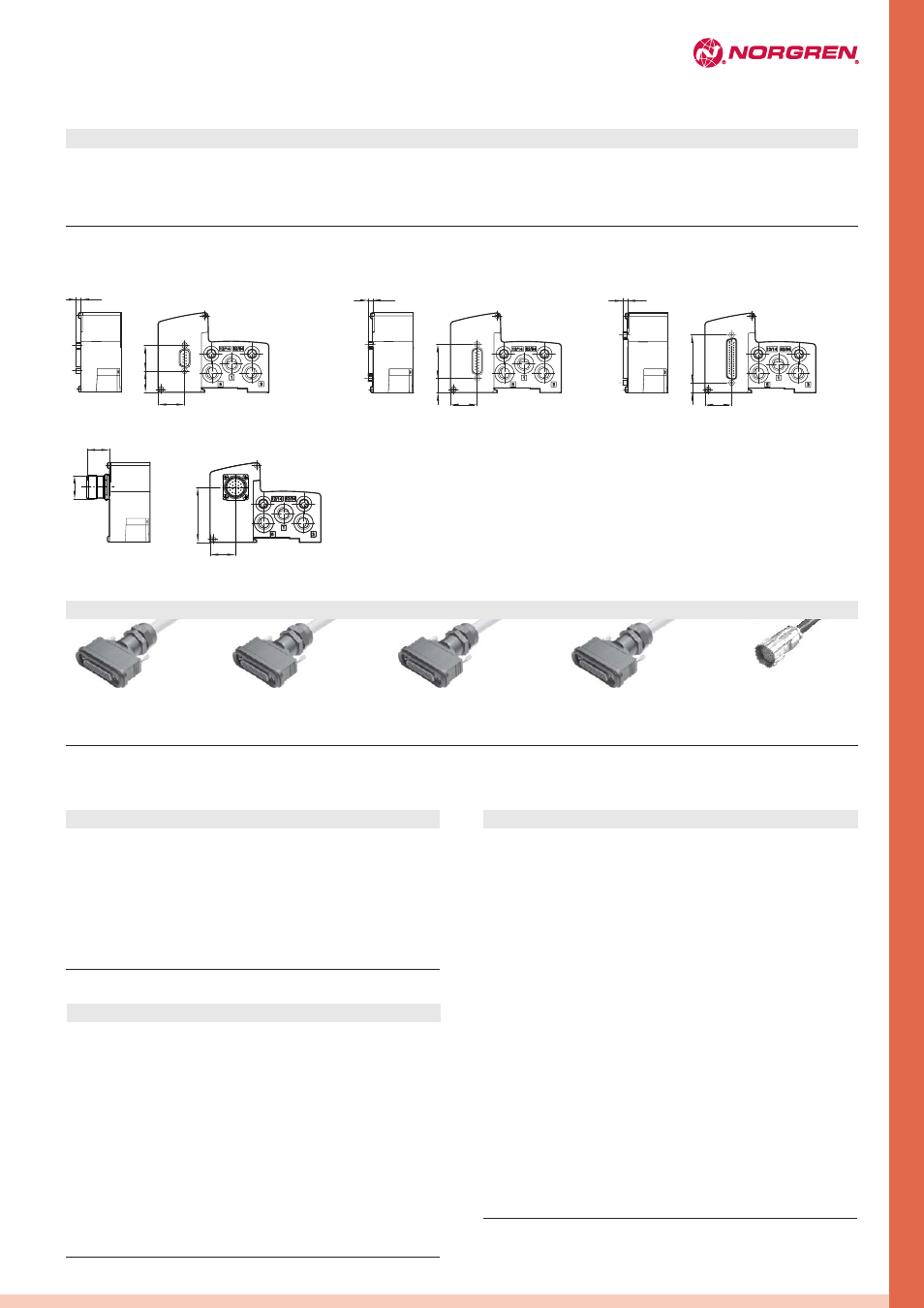

MULTIPOLE OPTIONS
25
21
26
4,5
D-Sub - 9 pin
33,5
17
26
4,5
47
10
26
4,5
*For valve islands with 17 ... 20 valve stations, please contact your local Norgren technical service
D-Sub - 15 pin
D-Sub - pin 25- / 44
D-Sub 9-pin 24 V d.c. 02/03/04 8
D-Sub 15-pin 24 V d.c. 02/03/04/05/06/07 14
D-Sub 25-pin 24 V d.c. 02/03/04/05/06/07/08/09/10/11/12 24
D-Sub 44-pin 24 V d.c. 08/09/10/11/12/13/14/15/16/17/18/19/20* 40*
M23 19-pin 115 V a.c., 24 V d.c. 02/03/04/05/06/07/08 16
Connector type Voltage No. of stations Max. no. solenoids
M23 19-pin
VS2672910-KG00 1 m VS2672915-KG00 1 m V11569-E01 1 m V11570-E01 1 m VS2672943-KG00 1 m
VS2672911-KG00 3 m VS2672916-KG00 3 m V11569-E03 3 m V11570-E03 3 m VS2672944-KG00 3 m
VS2672912-KG00 5 m VS2672917-KG00 5 m V11569-E05 5 m V11570-E05 5 m VS2672945-KG00 5 m
For cable length longer than 5 m please contact customer service.
1 White Solenoid 1-a 14 1
2 Brown Solenoid 2-a 14 2
3 Green Solenoid 3-a 14 3
4 Yellow Solenoid 4-a 14 4
5 Grey Solenoid 1-b 12 1
6 Pink Solenoid 2-b 12 2
7 Blue Solenoid 3-b 12 3
8 Red Solenoid 4-b 12 4
9 Black Common – –
D-Sub connector 9-pin 1) D-Sub connector 25-pin 1)
1 White Solenoid 1-a 14 1
2 Brown Solenoid 2-a 14 2
3 Green Solenoid 3-a 14 3
4 Yellow Solenoid 4-a 14 4
5 Grey Solenoid 5-a 14 5
6 Pink Solenoid 6-a 14 6
7 Blue Solenoid 7-a 14 7
8 Red Solenoid 1-b 12 1
9 Black Solenoid 2-b 12 2
10 Violet Solenoid 3-b 12 3
11 Grey/Pink Solenoid 4-b 12 4
12 Red/Blue Solenoid 5-b 12 5
13 White/Green Solenoid 6-b 12 6
14 Brown/Green Solenoid 7-b 12 7
15 White/Yellow Common – –
1) According to DIN 47100
1 White Solenoid 1-a 14 1
2 Brown Solenoid 2-a 14 2
3 Green Solenoid 3-a 14 3
4 Yellow Solenoid 4-a 14 4
5 Grey Solenoid 5-a 14 5
6 Pink Solenoid 6-a 14 6
7 Blue Solenoid 7-a 14 7
8 Red Solenoid 8-a 14 8
9 Black Solenoid 9-a 14 9
10 Violet Solenoid 10-a 14 10
11 Grey/Pink Solenoid 11-a 14 11
12 Red/Blue Solenoid 12-a 14 12
13 White/Green Common - -
14 Brown/Green Solenoid 1-b 12 1
15 White/Yellow Solenoid 2-b 12 2
16 Yellow/Brown Solenoid 3-b 12 3
17 White/Grey Solenoid 4-b 12 4
18 Grey/Brown Solenoid 5-b 12 5
19 White/Pink Solenoid 6-b 12 6
20 Pink/Brown Solenoid 7-b 12 7
21 White/Blue Solenoid 8-b 12 8
22 Brown/Blue Solenoid 9-b 12 9
23 White/Red Solenoid 10-b 12 10
24 Brown/Red Solenoid 11-b 12 11
25 White/Black Solenoid 12-b 12 12
Wire colour Pin no. Socket Pilot Station Wire colour Socket Station
Wire colour Socket Pilot Station
D-Sub connector 15-pin 1)
Pin no. Pilot
Pin no.
Multipole accessories
D-Sub connector 9-pin
IP65
D-Sub connector 15-pin
IP65
D-Sub connector 25-pin
IP65
D-Sub connector 44-pin
IP65
M23 connector 19-pin
IP65
