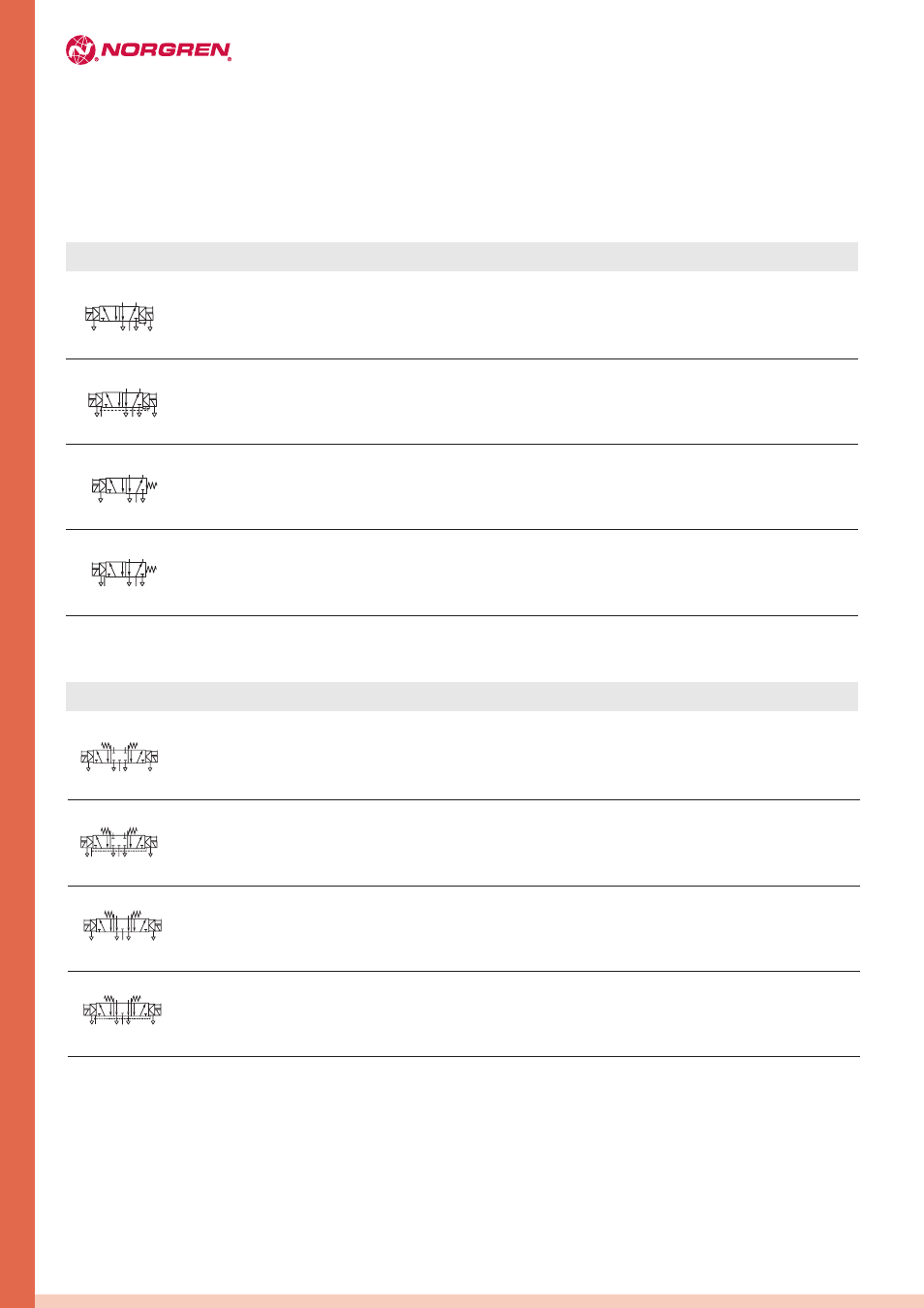

Norgren VS18 Series Valve Islands - Manual (Page 3)

4 2 12 14
3 5
1
84 82
4 2
12 14
14
3 5
1
84 82
4 2
12 14
3 5
1
84 82
4 2
12 14
14
3 5
1 84 82
3-036
VS18 SERIES VALVE ISLANDS Plug-in Mini ISO Valves
2 x 2/2, 2 x 3/2, 5/2 & 5/3 valves, ISO 15407-2 - 18 mm
5/2 Single and double solenoid actuated softseal valves (flow 650 l/min)
Sol/Sol Internal – 2 ... 10 Push only 24 V d.c. 1,2 W VS18S511DF313A
Sol/Sol Internal – 2 ... 10 Push only 115 V a.c. 1,5 VA VS18S511DF318A
Sol/Sol Internal – 2 ... 10 Push and turn 24 V d.c. 1,2 W VS18S511DF213A
Sol/Sol Internal – 2 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S511DF218A
Sol/Sol Internal – 2 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S511DF513A
Sol/Sol Internal – 2 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S511DF518A
Sol/Sol External 2 ... 10 -0,9 ... 10 Push only 24 V d.c. 1,2 W VS18S522DF313A
Sol/Sol External 2 ... 10 -0,9 ... 10 Push only 115 V a.c. 1,5 VA VS18S522DF318A
Sol/Sol External 2 ... 10 -0,9 ... 10 Push and turn 24 V d.c. 1,2 W VS18S522DF213A
Sol/Sol External 2 ... 10 -0,9 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S522DF218A
Sol/Sol External 2 ... 10 -0,9 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S522DF513A
Sol/Sol External 2 ... 10 -0,9 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S522DF518A
Sol/Spring Internal – 2 ... 10 Push only 24 V d.c. 1,2 W VS18S517DF313A
Sol/Spring Internal – 2 ... 10 Push only 115 V a.c. 1,5 VA VS18S517DF318A
Sol/Spring Internal – 2 ... 10 Push and turn 24 V d.c. 1,2 W VS18S517DF213A
Sol/Spring Internal – 2 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S517DF218A
Sol/Spring Internal – 2 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S517DF513A
Sol/Spring Internal – 2 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S517DF518A
Sol/Spring External 2 ... 10 -0,9 ... 10 Push only 24 V d.c. 1,2 W VS18S527DF313A
Sol/Spring External 2 ... 10 -0,9 ... 10 Push only 115 V a.c. 1,5 VA VS18S527DF318A
Sol/Spring External 2 ... 10 -0,9 ... 10 Push and turn 24 V d.c. 1,2 W VS18S527DF213A
Sol/Spring External 2 ... 10 -0,9 ... 10 Push and turn 115 V a.c. 1,5 VA VS18S527DF218A
Sol/Spring External 2 ... 10 -0,9 ... 10 Extended, push only 24 V d.c. 1,2 W VS18S527DF513A
Sol/Spring External 2 ... 10 -0,9 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18S527DF518A
4 2 14 12
3 5 1 84 82
4 2 14 12
14
3 5
1
82 84
4 2 14 12
3 5
1
84
MODELS Symbol Actuation Pilot
supply Pilot
pressure (bar) Operating
pressure (bar) Voltage Manual override
4 2 14 12
3 5
1 14
84
5/3 Double solenoid actuated glandless valves (flow 550 l/min)
APB Sol/Sol Internal – 2 ... 10 Push only 24 V d.c. 1,2 W VS18G611DF313A
APB Sol/Sol Internal – 2 ... 10 Push only 115 V a.c. 1,5 VA VS18G611DF318A
APB Sol/Sol Internal – 2 ... 10 Push and turn 24 V d.c. 1,2 W VS18G611DF213A
APB Sol/Sol Internal – 2 ... 10 Push and turn 115 V a.c. 1,5 VA VS18G611DF218A
APB Sol/Sol Internal – 2 ... 10 Extended, push only 24 V d.c. 1,2 W VS18G611DF513A
APB Sol/Sol Internal – 2 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18G611DF518A
APB Sol/Sol External 2 ... 10 -0,9 ... 16 Push only 24 V d.c. 1,2 W VS18G622DF313A
APB Sol/Sol External 2 ... 10 -0,9 ... 16 Push only 115 V a.c. 1,5 VA VS18G622DF318A
APB Sol/Sol External 2 ... 10 -0,9 ... 16 Push and turn 24 V d.c. 1,2 W VS18G622DF213A
APB Sol/Sol External 2 ... 10 -0,9 ... 16 Push and turn 115 V a.c. 1,5 VA VS18G622DF218A
APB Sol/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 24 V d.c. 1,2 W VS18G622DF513A
APB Sol/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 115 V a.c. 1,5 VA VS18G622DF518A
COE Sol/Sol Internal – 2 ... 10 Push only 24 V d.c. 1,2 W VS18G711DF313A
COE Sol/Sol Internal – 2 ... 10 Push only 115 V a.c. 1,5 VA VS18G711DF318A
COE Sol/Sol Internal – 2 ... 10 Push and turn 24 V d.c. 1,2 W VS18G711DF213A
COE Sol/Sol Internal – 2 ... 10 Push and turn 115 V a.c. 1,5 VA VS18G711DF218A
COE Sol/Sol Internal – 2 ... 10 Extended, push only 24 V d.c. 1,2 W VS18G711DF513A
COE Sol/Sol Internal – 2 ... 10 Extended, push only 115 V a.c. 1,5 VA VS18G711DF518A
COE Sol/Sol External 2 ... 10 -0,9 ... 16 Push only 24 V d.c. 1,2 W VS18G722DF313A
COE Sol/Sol External 2 ... 10 -0,9 ... 16 Push only 115 V a.c. 1,5 VA VS18G722DF318A
COE Sol/Sol External 2 ... 10 -0,9 ... 16 Push and turn 24 V d.c. 1,2 W VS18G722DF213A
COE Sol/Sol External 2 ... 10 -0,9 ... 16 Push and turn 115 V a.c. 1,5 VA VS18G722DF218A
COE Sol/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 24 V d.c. 1,2 W VS18G722DF513A
COE Sol/Sol External 2 ... 10 -0,9 ... 16 Extended, push only 115 V a.c. 1,5 VA VS18G722DF518A
MODELS Symbol Function
5/3 Actuation Pilot
supply
Pilot
pressure (bar) Operating
pressure (bar) Voltage Manual
override
