A-5
Intel ICH9R SATA RAID

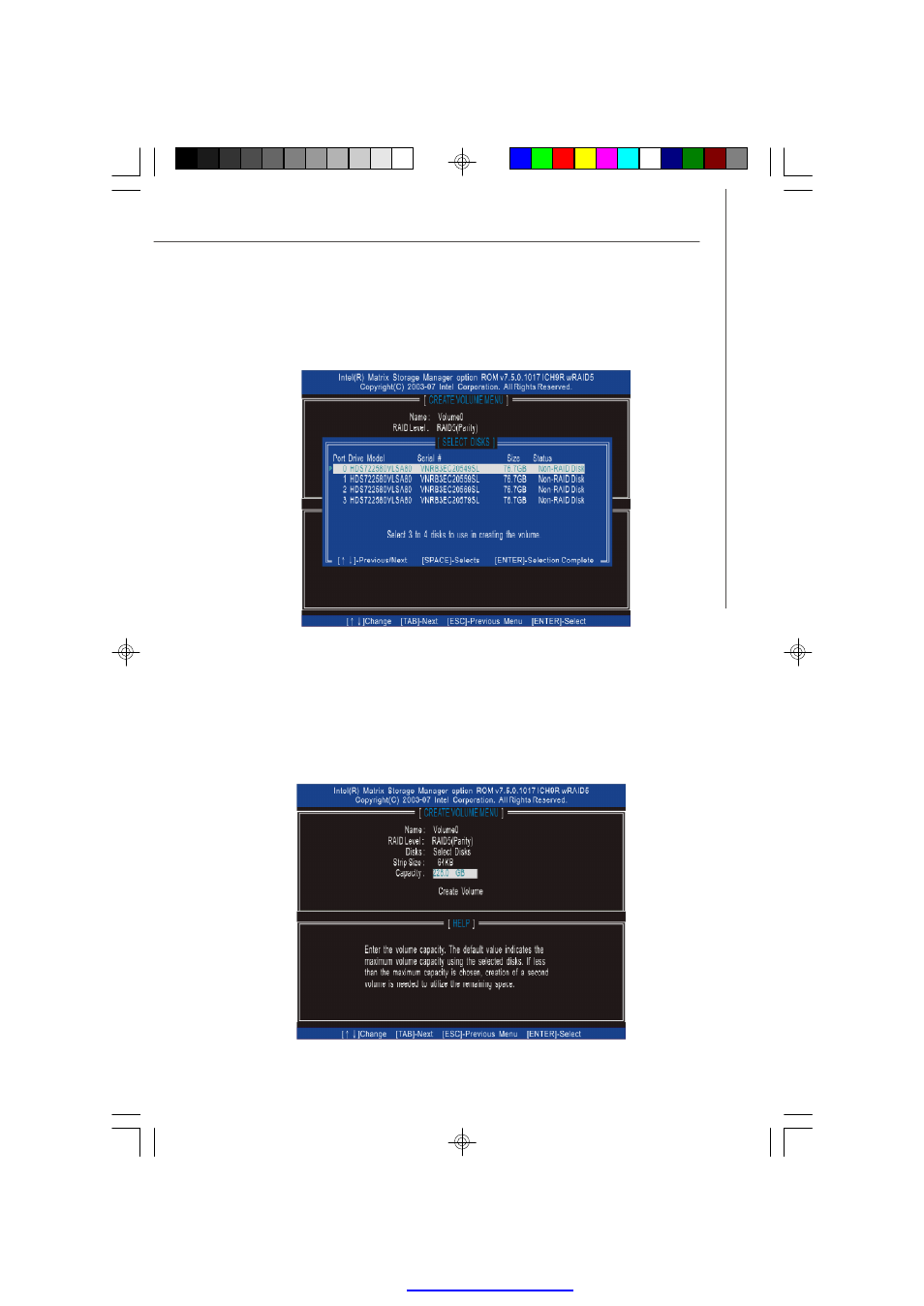

3. In the Disk field, press key and the following screen appears. Use
key to select the disks you want to create for the RAID volume, then
click key to finish selection.
4. Then select the strip value for the RAID array by using the “upper arrow” or
“ down arrow” keys to scroll through the available values, and pressing the
key to select and advance to the next field. The available values
range from 4KB to 128 KB in power of 2 increments. The strip value should be
chosen based on the planned drive usage. Here are some typical values:
RAID0 – 128KB
RAID10 – 64KB
RAID5 – 64KB
5. Then select the capacity of the volume in the Capacity field. The default
value is the maximum volume capacity of the selected disks.
