1-3

Getting Started

1

Slim DVD-ROM Drive

2

Swappable Hard Disk Drive Bays

3

USB Port

4

System Reset Button

5

Power Button

6

HDD Power/Status LEDs

7

HDD Activity LED

This indicator shows the activity status of the hard disk drive. It flashes

when the system is accessing data on the hard disk and remains off when

no disk activity is detected.

8

Power LED

This indicator shows the power status of the system. It glows when the main

power is turned on.

9

Status LEDs of LAN# 1/2

1. The green LED is on when there is an active connection on the LAN port.

2. This LED flashes when transmitting or receiving activities to or from the

system are detected.

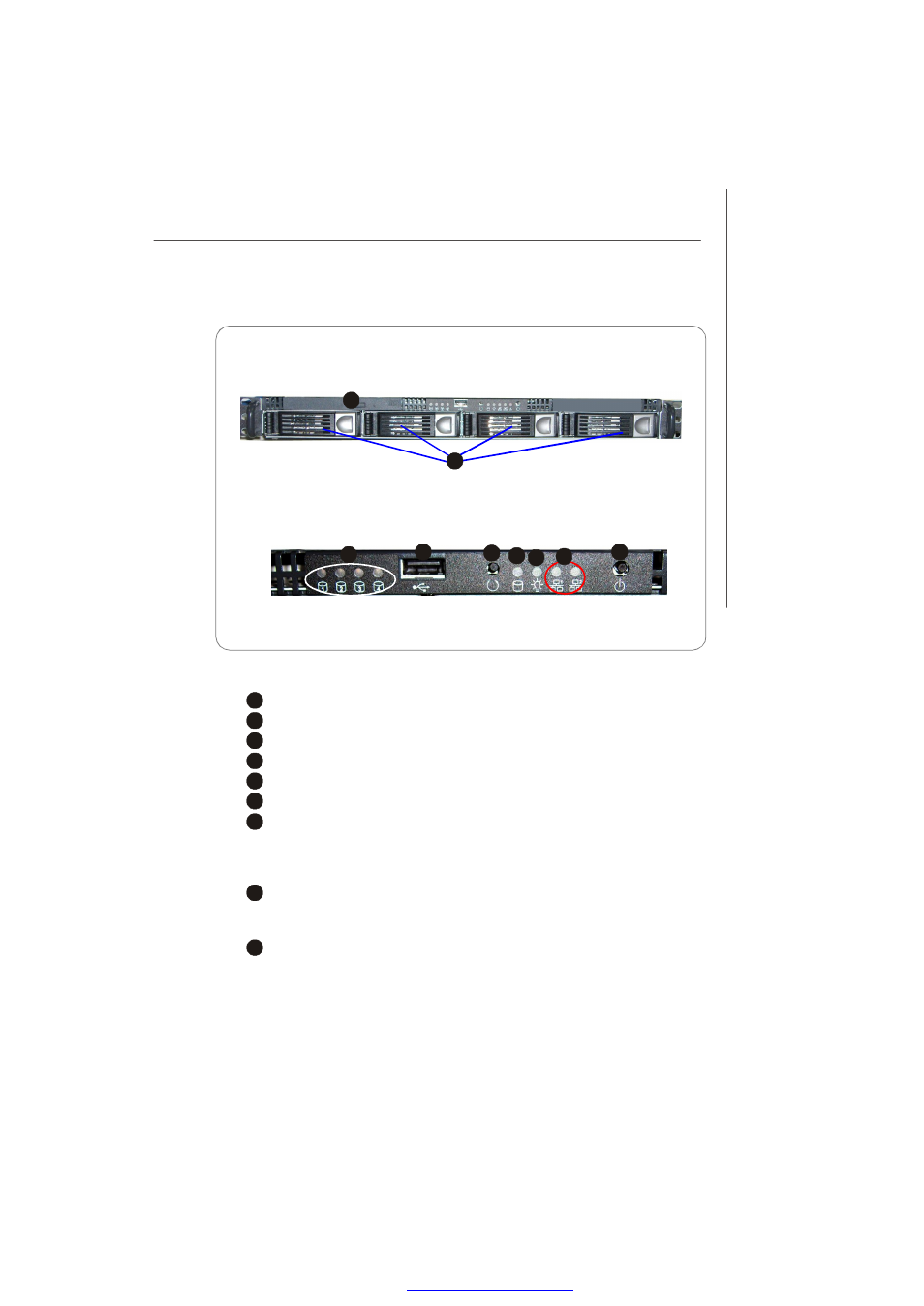

Front View

Front Bezel

1

7

9

8

4

6

5

2

3
