M S-9265 Server
2-16
Jumper

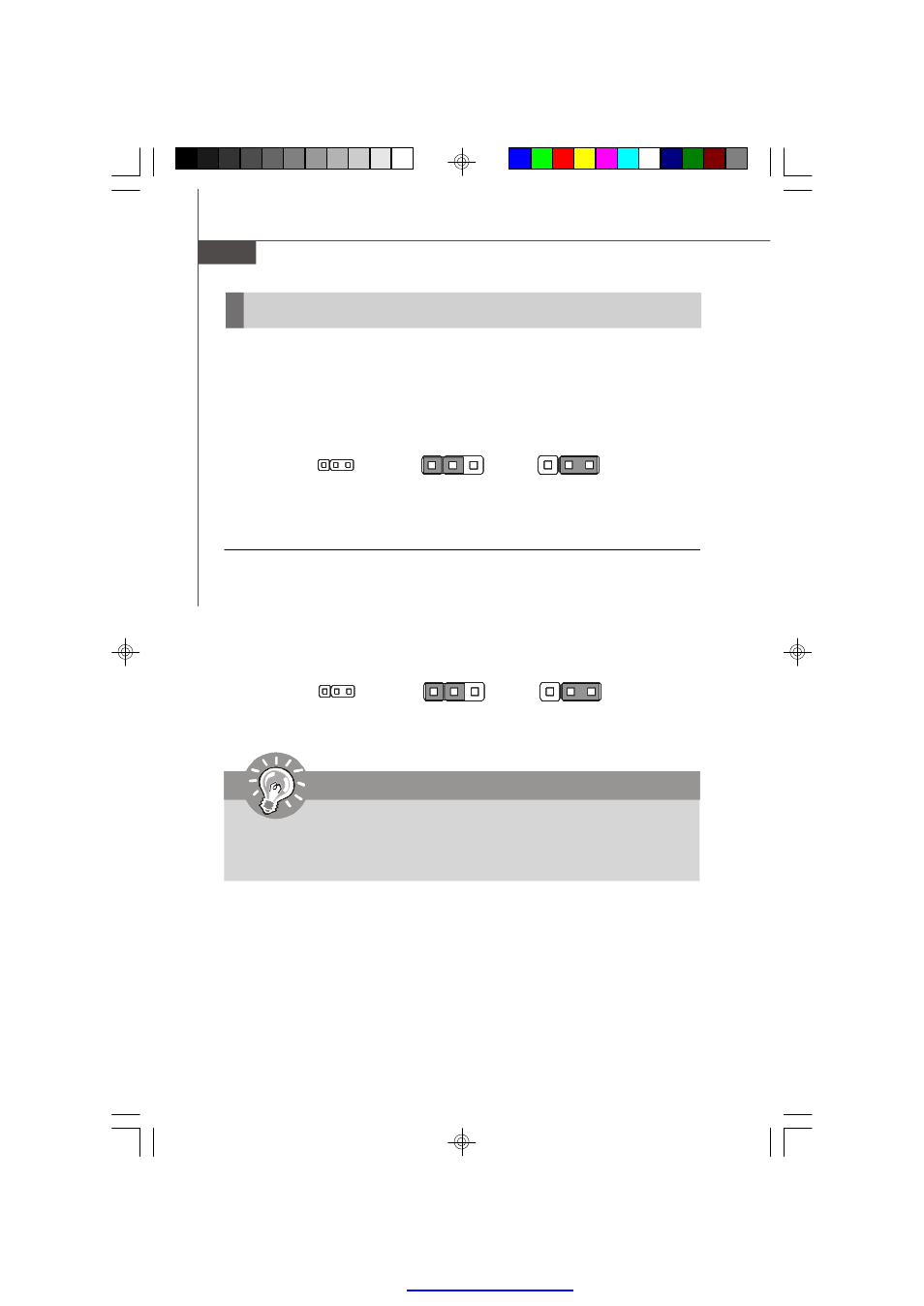

Clear CMOS Jumper: J_CMOS1
There is a CMOS RAM onboard that has a power supply from an external battery to
keep the data of system configuration. With the CMOS RAM, the system can auto-
matically boot OS every time it is turned on. If you want to clear the system configuration,
set the jumper to clear data.
J_CMOS1
1
Important
You can clear CMOS by shorting 2-3 pin while the system is off. Then return
to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will
damage the mainboard.
BIOS Recovery Jumper: J_BOOT3
Users can short connect pin#2-3 to recover the system BIOS with a Recovery
Floppy. When the system is done with the job, the buzzer will beep to remind the user
to set the jumper to its normal state (pin#1-2 short connected).
Keep Data
1 3
Clear Data
1 3
J_BOOT3
1
Normal
1 3
Recovery
1 3
