B-20

M S-9265 Server

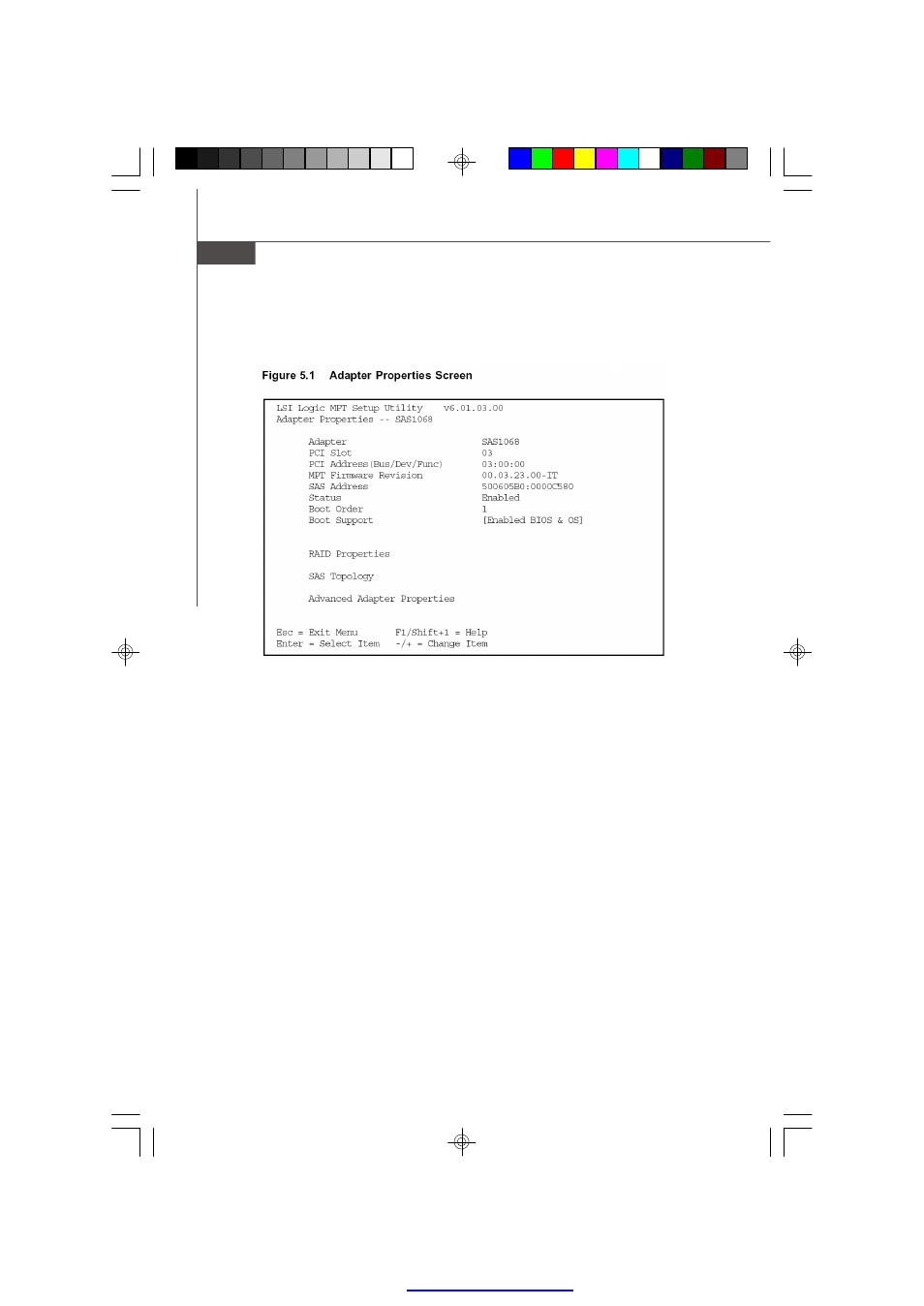

2. Press Enter to go to the Adapter Properties screen, shown in Figure 5.1.

3. On the Adapter Properties screen, use the arrow keys to select RAID Proper-

ties

on the screen and press Enter.

4. When you are prompted to select a volume type, select Create IS Volume.

The Create New Array screen shows a list of disks that can be added to a

volume.

5. Move the cursor to the “RAID Disk” column. To add a disk to the volume, change

the “No” to “Yes” by pressing the + key, . key, or space bar. As disks are

added, the Array Size field changes to reflect the size of the new volume.

There are several limitations when creating an IS (RAID 0) volume:

All disks must be either SATA (with extended command set support) or SAS

(with SMART support).

Disks must have 512-byte blocks and must not have removable media.

There must be at least 2 and no more than 8 drives in a valid IS volume. Hot

spare drives are not allowed.
