Section 1 TRACER Description
6
As a rule, a green LED indicates a normal situation, a red LED indicates an error situation, and a yellow
LED indicates a configuration option. LEDs indicating overall system integrity are listed below.
Self Test .................................... Blinking red if the self-test has completed and failed; Solid red if
self-test is in progress or did not complete
Power ........................................ Green if DC voltage is applied
The LEDs associated with the E1 interfaces are listed below.
CV/CRC .................................... Red if the incoming E1 stream contains code violations, or a CRC
error
LOS/OOF .................................. Red if there is no signal present at the E1 interfaces or if framing
synchronization is lost
Loopback ................................... Solid yellow if the E1 interfaces are in local line loopback. Blinking
yellow if the E1 interfaces are in link loopback.
ALM .......................................... Solid red if a UA1 is detected at the incoming E1, blinking red if a
remote alarm signal is found
The functions of the LEDs which relate system configuration information are listed below.
Frequency Plan A ...................... Yellow if frequency plan A is selected
Frequency Plan B ...................... Yellow if frequency plan B is selected
Remote Test Active .................. Yellow if the remote test is active
Remote Test Fail ....................... Red if the remote test failed

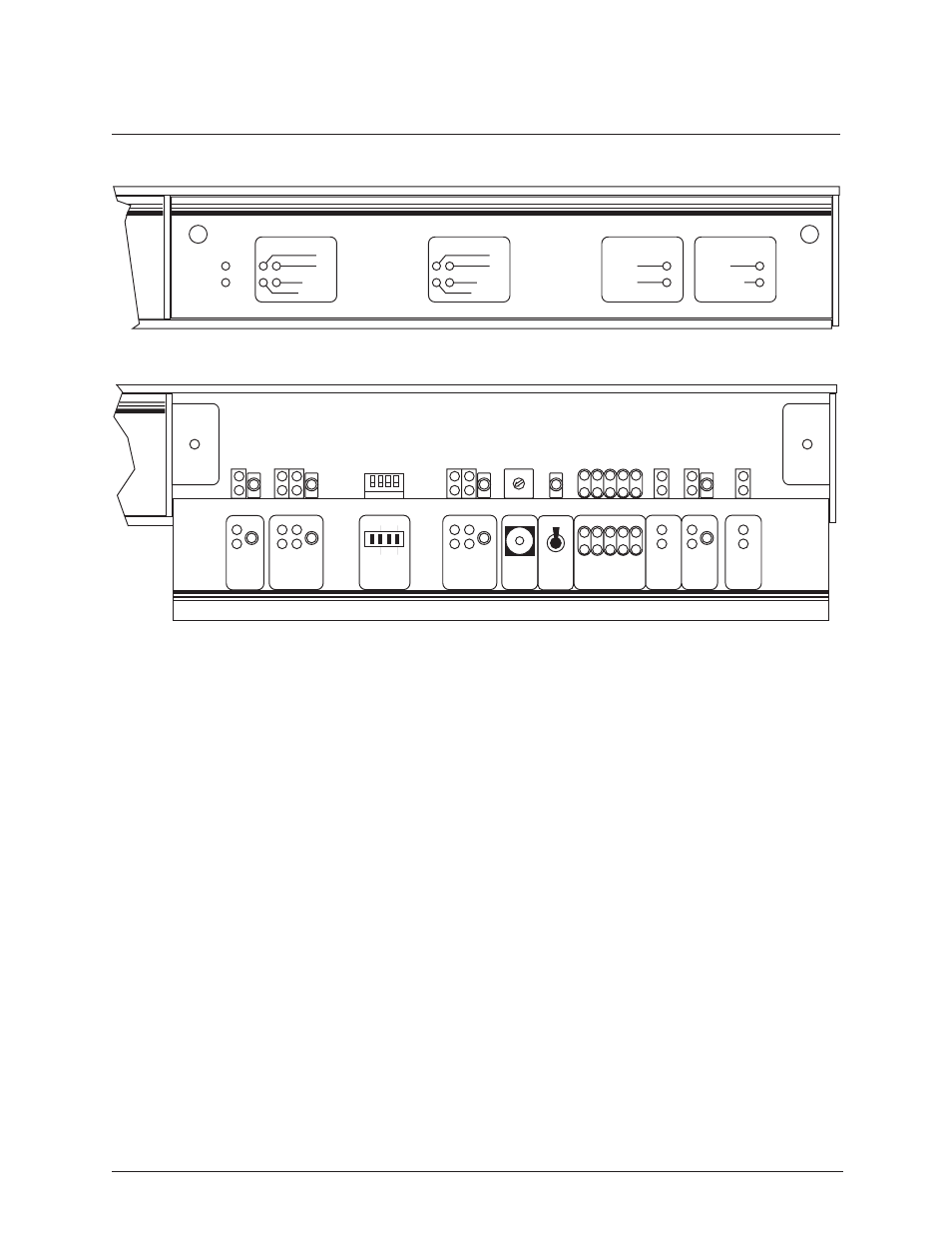

Figure 1-6. BBP Front Panel with Door Closed
