9.

PACKAGE DIMENSIONS

THERMAL CHARACTERISTICS AND SPECIFICATIONS

INCHES

MILLIMETERS

DIM

MIN

MAX

MIN

MAX

A 0.053

0.069

1.35

1.75

A1

0.004

0.010

0.10

0.25

B

0.013

0.020

0.33

0.51

C

0.007

0.010

0.19

0.25

D

0.386

0.394

9.80

10.00

E

0.150

0.157

3.80

4.00

e

0.040

0.060

1.02

1.52

H

0.228

0.244

5.80

6.20

L

0.016

0.050

0.40

1.27

JEDEC # : MS-012

Parameters

Symbol Min Typ

Max

Units

Package Thermal Resistance

θ

JA

-

125

-

°C/Watt

e

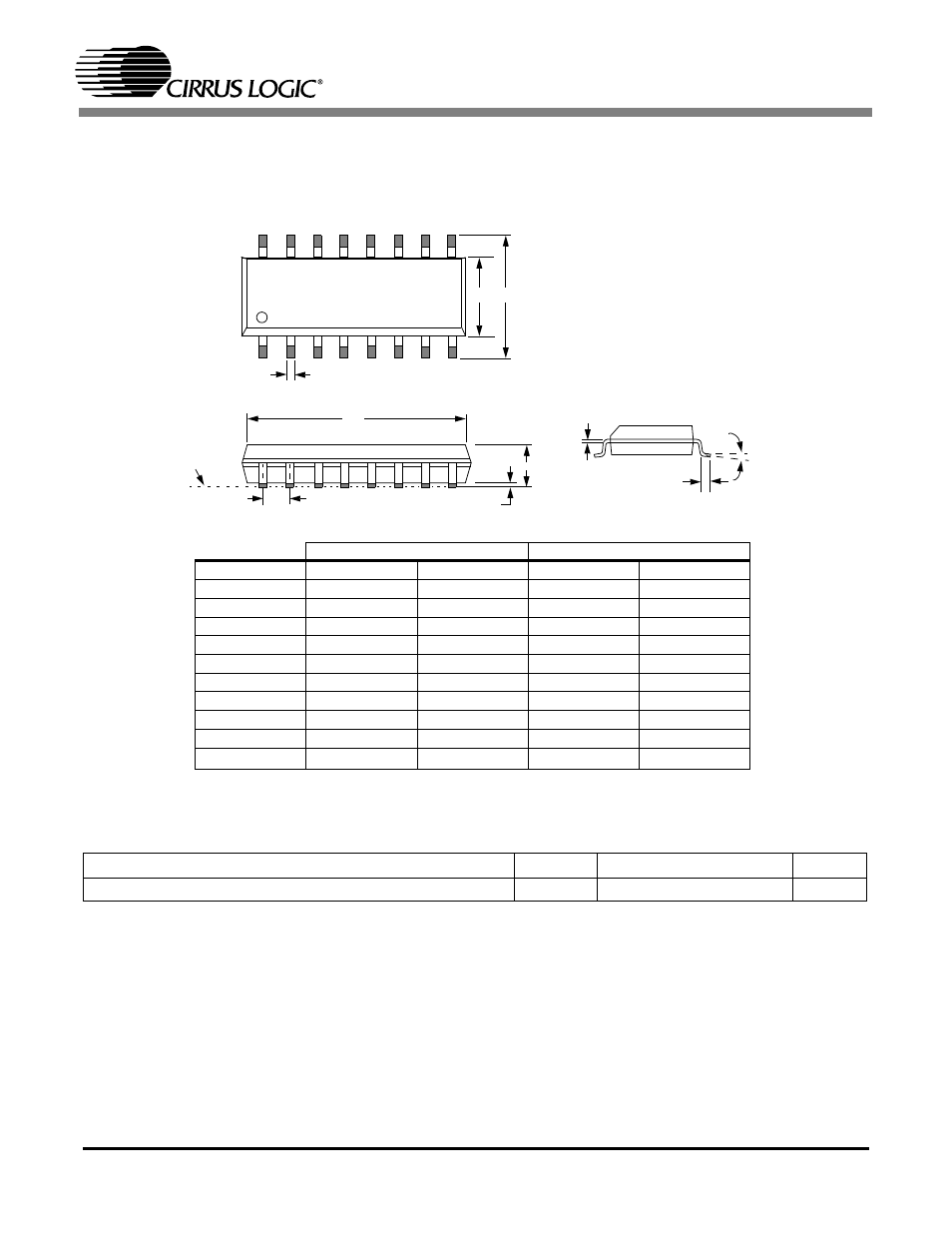

16L SOIC (150 MIL BODY) PACKAGE DRAWING

D

H

E

b

A1

A

c

L

SEATING

PLANE

1
